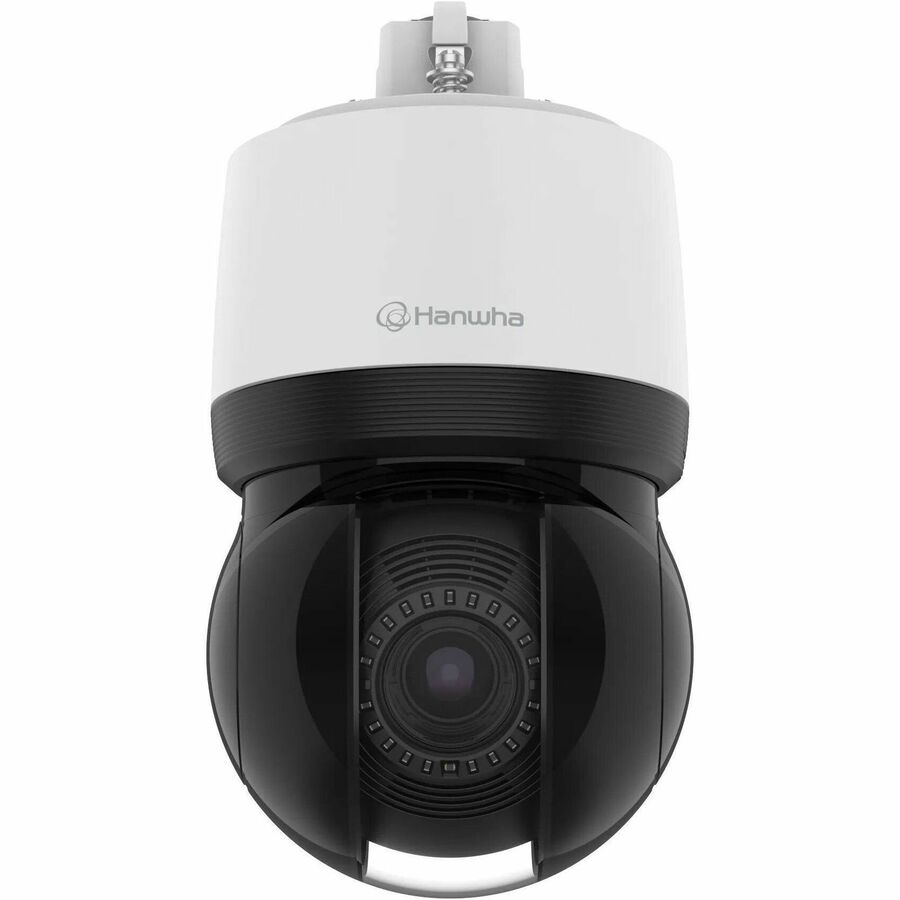

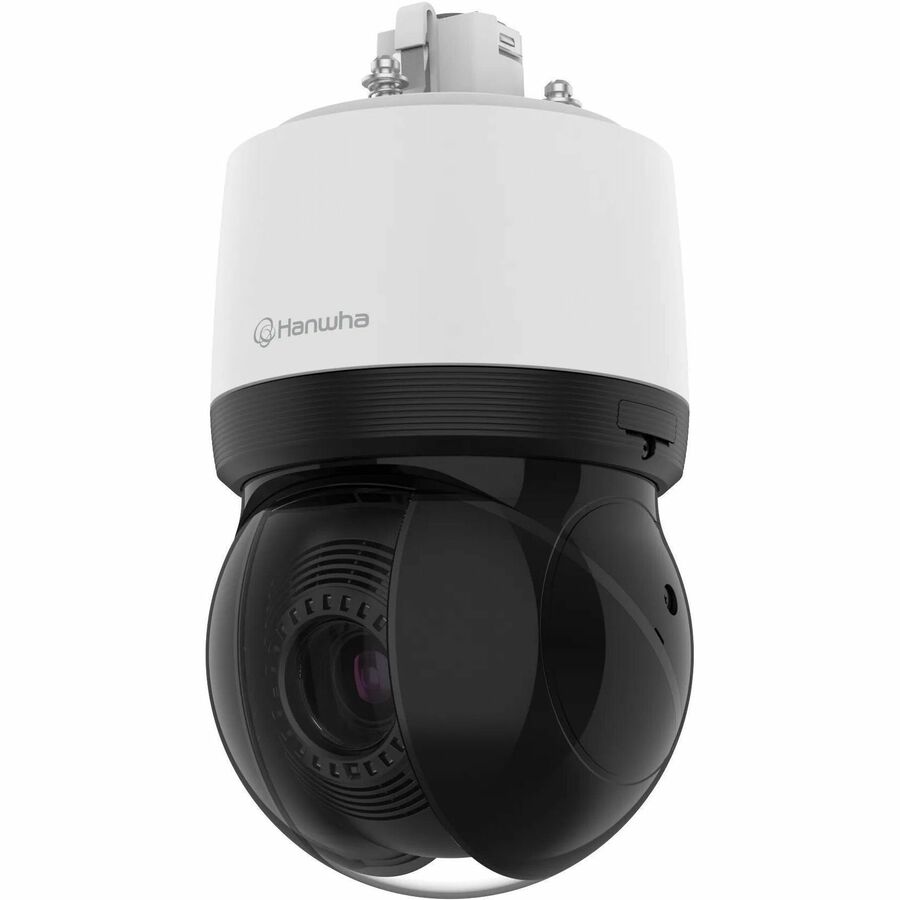

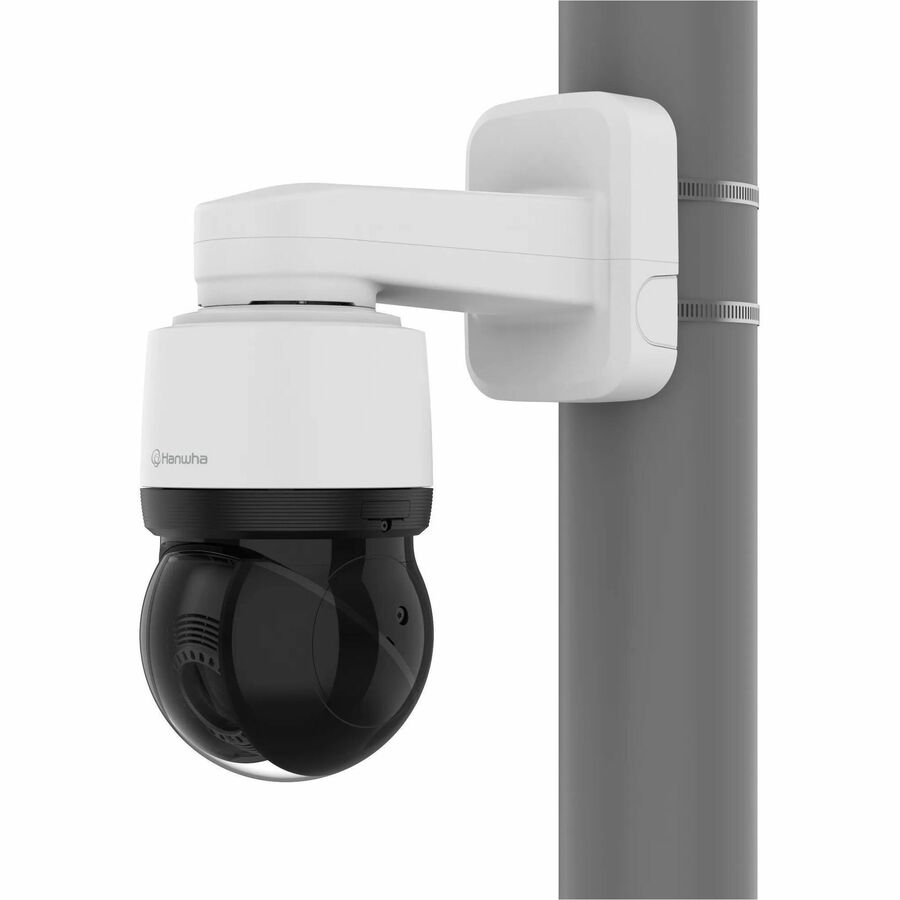

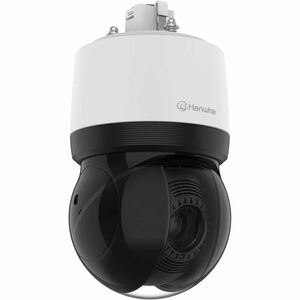

Hanwha XNP-C6403R 2 Megapixel Full HD Network Camera - Color - White
SKU: 9078347
Powered by the Wisenet 7 chipset, the PTZ PLUS AI camera provides AI-based object detection and auto tracking (Person/Vehicle) with Target lock tracking.
- 2MP resolution
- 40X optical zoom
- IR viewable length : 200m (656ft)
- 40x optical zoom lens (4.25mm~170mm)
- -20° tilt look-up capability to see above the horizon
- Lens heater & spin dry for water/snow removal
- 360° endless pan
- Triple codec H.265/H.264/MJPEG
- WiseStream III technology
- extreme WDR
- Azimuth display (Cardinal & intermediate directions)
- AI-based Object Auto tracking (Person, Vehicle), target lock tracking, Intelligent video analytics
- Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification (with NW I/O box), Object auto-tracking (Person/Vehicle), Target lock track
- true D/N
- DIS with Built-in Gyro sensor
- Dual Memory slots (Maximum 512GB x 2)
- IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock)
- HPoE (IEEE802.3bt, Class6, Type3, Injector included)
- TPM 2.0 with FIPS 140-2 level 2
- Optional SPM-4210 Network I/O box for alarm & audio I/O
- Operating Temperature -40°C~+55°C (-40°F ~ +131°F)
- Network camera - Helps achieve high-quality video results
- Up to 1920 x 1080 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 170 mm maximum focal length provides incredible detail and how effective is your network camera
- f/1.6 maximum aperture for reliable, detailed, and sharp output with added dependability
- 40x optical zoom for desired image clarity and maximum capturing convenience
- Up to 656.17 ft of night vision
- Full HD recording format for a lively video quality experience with maximum dependability
- Infrared night vision type effectively captures visible footage without requiring any external sources of light
- Varifocal lens type to ensure maximum surveillance dependability and optimal performance
Call for Availability
Regular price
$3,534
Sale price
$3,800
On Sale
Shipping calculated at checkout
Powered by the Wisenet 7 chipset, the PTZ PLUS AI camera provides AI-based object detection and auto tracking (Person/Vehicle) with Target lock tracking.
- 2MP resolution
- 40X optical zoom
- IR viewable length : 200m (656ft)
- 40x optical zoom lens (4.25mm~170mm)
- -20° tilt look-up capability to see above the horizon
- Lens heater & spin dry for water/snow removal
- 360° endless pan
- Triple codec H.265/H.264/MJPEG
- WiseStream III technology
- extreme WDR
- Azimuth display (Cardinal & intermediate directions)
- AI-based Object Auto tracking (Person, Vehicle), target lock tracking, Intelligent video analytics
- Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification (with NW I/O box), Object auto-tracking (Person/Vehicle), Target lock track
- true D/N
- DIS with Built-in Gyro sensor
- Dual Memory slots (Maximum 512GB x 2)
- IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock)
- HPoE (IEEE802.3bt, Class6, Type3, Injector included)
- TPM 2.0 with FIPS 140-2 level 2
- Optional SPM-4210 Network I/O box for alarm & audio I/O
- Operating Temperature -40°C~+55°C (-40°F ~ +131°F)
- Network camera - Helps achieve high-quality video results
- Up to 1920 x 1080 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 170 mm maximum focal length provides incredible detail and how effective is your network camera
- f/1.6 maximum aperture for reliable, detailed, and sharp output with added dependability
- 40x optical zoom for desired image clarity and maximum capturing convenience
- Up to 656.17 ft of night vision
- Full HD recording format for a lively video quality experience with maximum dependability
- Infrared night vision type effectively captures visible footage without requiring any external sources of light
- Varifocal lens type to ensure maximum surveillance dependability and optimal performance
Color Family:
White
Color Supported:
Color
Connectivity Technology:
Wired
Diameter:
6.2"
Effective Camera Resolution:
2 Megapixel
Ethernet Technology:
Fast Ethernet
Features:
Wide Dynamic Range,Day/Night,Back Light Compensation (BLC),Digital Noise Reduction,Digital Image Stabilization,Motion Detection,Privacy Masking,Gain Control,White Balance,Audio Detection,PTZ
Field of View:
H: 65,66°(Gran angular)~1,88°(Tele) / V: 39,4°(Gran angular)~1,09°(Tele)
HD Recording:
Yes
Image Sensor Size:
1/2.8"
Image Sensor Type:
CMOS
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Lens Included:
Yes
Lens Type:
Varifocal
Limited Warranty:
3 Year
Longest Shutter Speed:
2 Second
Manufacturer:
Hanwha Group
Manufacturer Website Address:
http://www.hanwha.com
Maximum Aperture:
f/1.6
Maximum Focal Length:
170 mm
Maximum Frame Rate:
60 fps
Maximum Operating Humidity:
95%
Maximum Operating Temperature:
122°F (50°C)
Maximum Video Resolution:
1920 x 1080
Minimum Aperture:
f/4.95
Minimum Focal Length:
4.25 mm
Minimum Operating Temperature:
-40°F (-40°C)
Network (RJ-45):
Yes
Night Vision:
Yes
Night Vision Distance:
656.17 ft
Night Vision Type:
Infrared
Optical Zoom:
40x
Power Source Type:
HPoE
Product Color:
White
Product Model:
XNP-C6403R
Product Series:
X
Product Type:
Network Camera
Protocols:
IPv4,IPv6,TCP/IP,UDP/IP,RTP/UDP,RTP/TCP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL/TLS,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,UPnP,Bonjour,LLDP,SRTP,ONVIF,TCP,NTCIP,MQTT
Recording Formats:
Full HD
Remote Management:
Yes
Shortest Shutter Speed:
1/12000 Second
Storage Type:
Memory Card
Video Formats:
H.265,H.264,MJPEG,H.265M,H.265H,H.264M,H.264H,H.265B,H.264B
