Rhombus

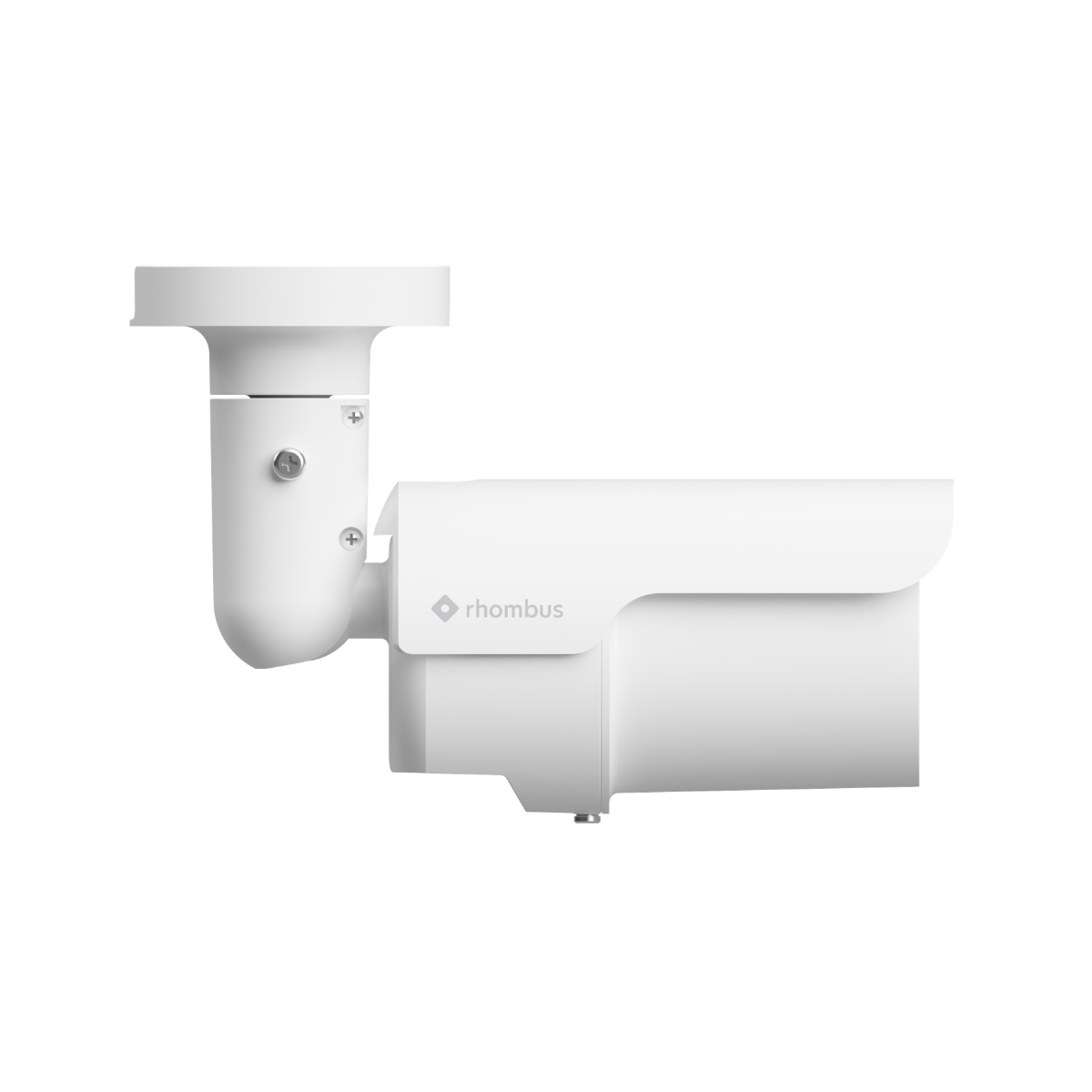

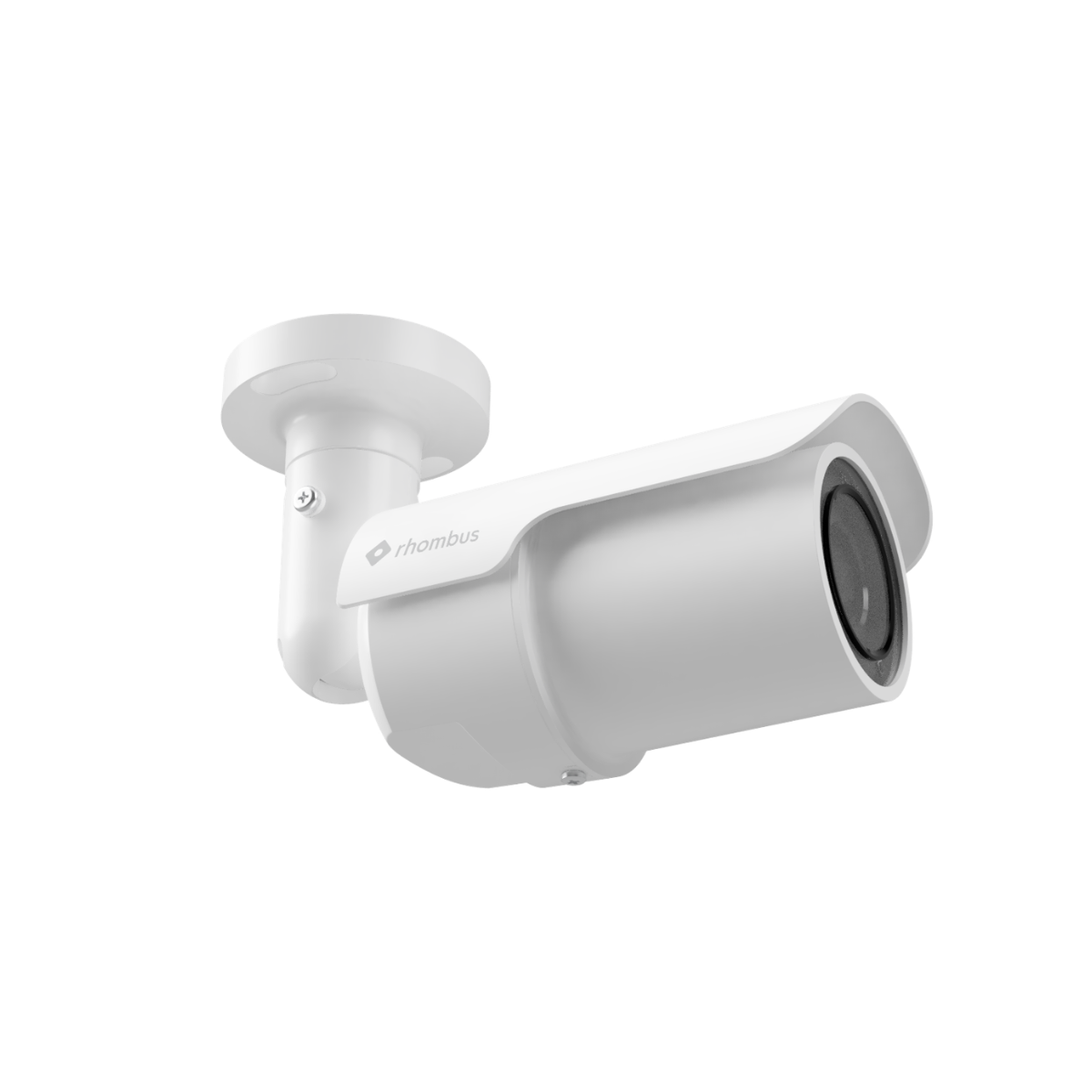

Rhombus R540 Bullet Camera - 8MP 4K

Name: Rhombus R540 Bullet Camera - 8MP 4K
Brand: Rhombus
SKU: R540-512GB
Price: 1699.0 USD
Availability: InStock

MFG SKU: R540-512GB

Bullet Cameras are effective for long-range surveillance, and work as a great deterrent.

Max Days of Retention

$1,699

Professional Console License Term $149

Quantity:

In stock

Regular price $1,848

Shipping calculated at checkout

Submit Purchase Order

Request A Quote

Cloud Storage & Accessories

Product Specifications

Rhombus R540 Bullet Camera

Resolution	8MP image sensor, 3840 x 2160 resolution
Operating Temperature	-45 ̊ to 55 ̊C (-49 ̊ to 131 ̊F)

Onboard Storage Included	2 microSD cards 512 GB (30 days), 1 TB (60 days), 2 TB (120 days) *Optional unlimited cloud archiving available
Operating Humidity	10 - 90% RH non-condensing

Night Vision	Infrared illuminators (164ft in low light)
In the Box	Mounting screws, anchors, waterproofing kit

Aperture	F/1.5-2.0
Baseline Steady State	10 - 30 Kbps per camera

Pan / Tilt / Zoom	3X optical zoom
HD WAN Live Streaming	530 - 720 Kbps per camera

Ethernet	10 / 100Mbps, MDI/MDI-X Auto Sensing
Compliances	FCC, IC, CE/LVD Compliant

Power-over-Ethernet	PoE+ (802.3at), single cable installation
Warranty & Compatibility	Rhombus 10-Year Warranty Included

Power Consumption	Max 25.5 watts
Dimensions	92 mm (3.62 in) x 225 mm (8.85 in)

Field of View	126° - 54° Diagonal FoV 111° - 47° Horizontal FoV 60° - 26° Vertical FoV
Weight	0.82kg (1.8lbs)

Focal Length	3.6 mm - 11 mm varifocal lens
Weather Resistance	IP66

Product Resources

Product Overview PDF

Rhombus Bullet Series

Capture crystal-clear details at extensive distances, even in harsh weather and low light, with bullet security cameras.

Explore models

Bullet Cameras Include

Adaptive Quality

Person of Interest Alerts

Unlimited Cloud Archiving

Up to 10-year Product Warranty

30-Days Cloud Backup

Automatic Firmware & Software Updates

AI-Based Video Analytics

Live-Link Sharing

Why Rhombus?

Upgrade your security with Rhombus Cameras — AI-powered, 4K video surveillance that offers real-time alerts, cloud-based access, and advanced analytics. Easy to install, scalable, and tamper-resistant, Rhombus cameras protect your business with smarter monitoring and enhanced situational awareness.

Request A Demo

See why modern organizations across industries choose Rhombus to protect their spaces. See if your organization qualifies for a free trial of these advanced security solutions.

Get demo
