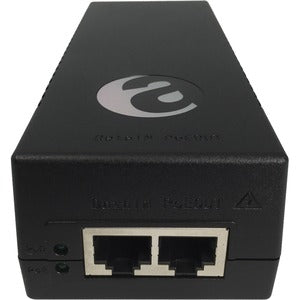

Amer Power-over-Ethernet Injector

SKU: PIG15

The PIG15 is a single port Mid-Span offering a compact and cost effective and fully IEEE802.3af compliant solution.It can be used to power wireless LAN / WAN access points, IP security cameras, VoIP telephones and any other low port density installations.

The PIG15 PoE injector eliminates the need for an external power supply and any associated AC/DC power cabling. It provides a compact, affordable, safe and reliable power solution over existing Ethernet cabling.

Call for Availability

Regular price $27.95

Shipping calculated at checkout

Details

The PIG15 is a single port Mid-Span offering a compact and cost effective and fully IEEE802.3af compliant solution.It can be used to power wireless LAN / WAN access points, IP security cameras, VoIP telephones and any other low port density installations.

The PIG15 PoE injector eliminates the need for an external power supply and any associated AC/DC power cabling. It provides a compact, affordable, safe and reliable power solution over existing Ethernet cabling.

Specifications
Certifications & Standards:
  • IEEE802.3af (PoE)
  • FCC (Part15, Class B)
  • CE (EN55022/24)
  • C-Tick
  • (AS/NZS55022/24)
  • CCC (GB4943)
  • KCC (K60950-1)
  • BSMI (CNS13438)
  • UL/cUL (EN6095-1)
  • ICES (ICES-003)
  • GS (EN60950-1)
  • CE/LVD (EN60950-1)
  • SAA (AS/NZS60950-1)
  • CCC (GB4943)
  • KC (K60950-1)
  • PSE (J60950-1)
  • NOM (IEC60950-1)
  • S-mark (IEC60950-1)
  • BSMI (CNS14336)
  • EAC (LEC60950-1)
  • BIS (BISIS13252)
  • GS
  • Country of Origin:
    China
    Environmentally Friendly:
    Yes
    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)
    Form Factor:
    External
    Input Ports:
    1 x Gigabit Ethernet
    Input Voltage:
    120 V AC,230 V AC
    Manufacturer:
    Amer Networks, Inc
    Manufacturer Website Address:
    http://www.amermounts.com
    Maximum Input Current:
    300 mA
    Maximum Output Power:
    15.40 W
    Maximum Output Voltage:
    52 V DC
    Output Ports:
    1 x Gigabit Ethernet
    Packaged Quantity:
    1
    Product Model:
    PIG15
    Product Type:
    PoE Injector
    Protection Type:
    Surge Protection
