CyberPower PDU13101 3 Phase 120 VAC 20A Basic PDU
SKU: PDU13101

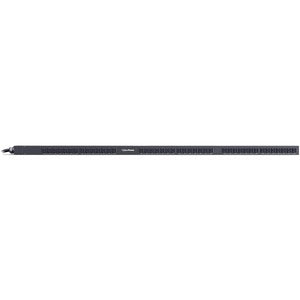

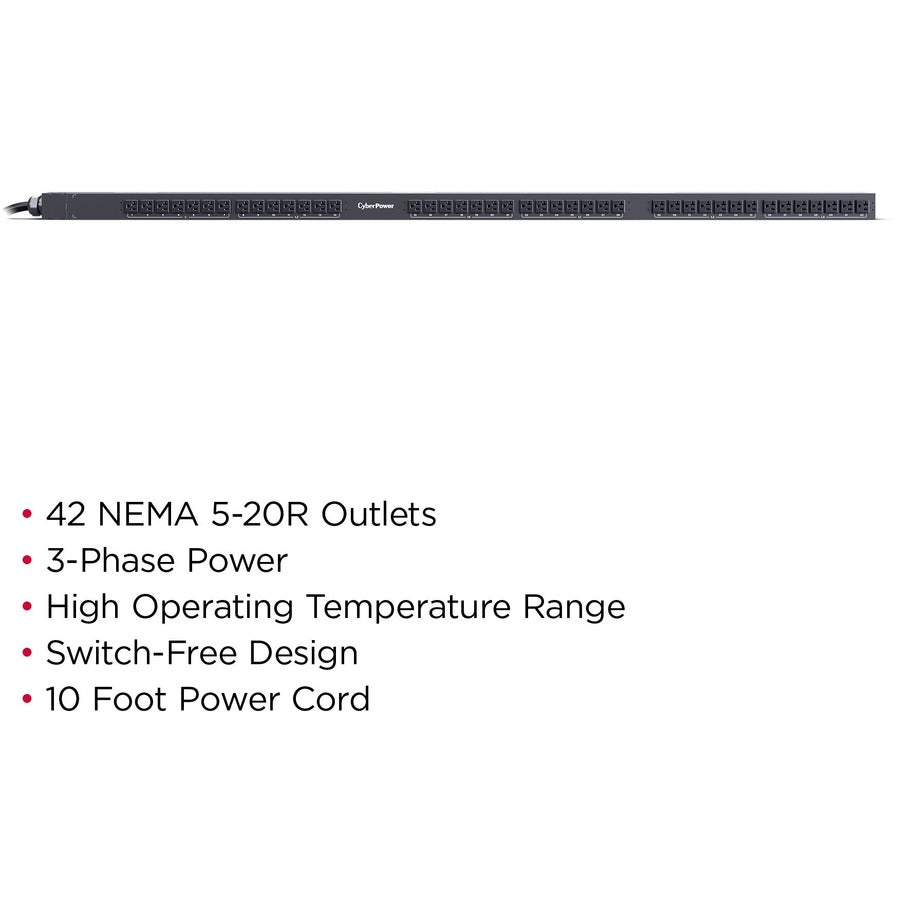

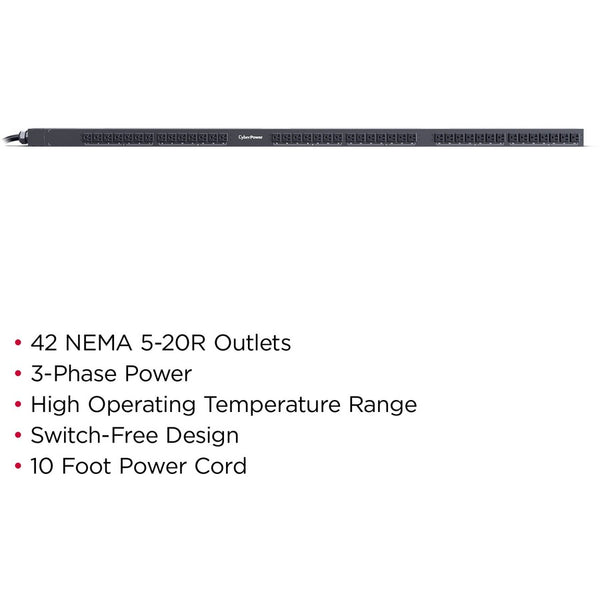

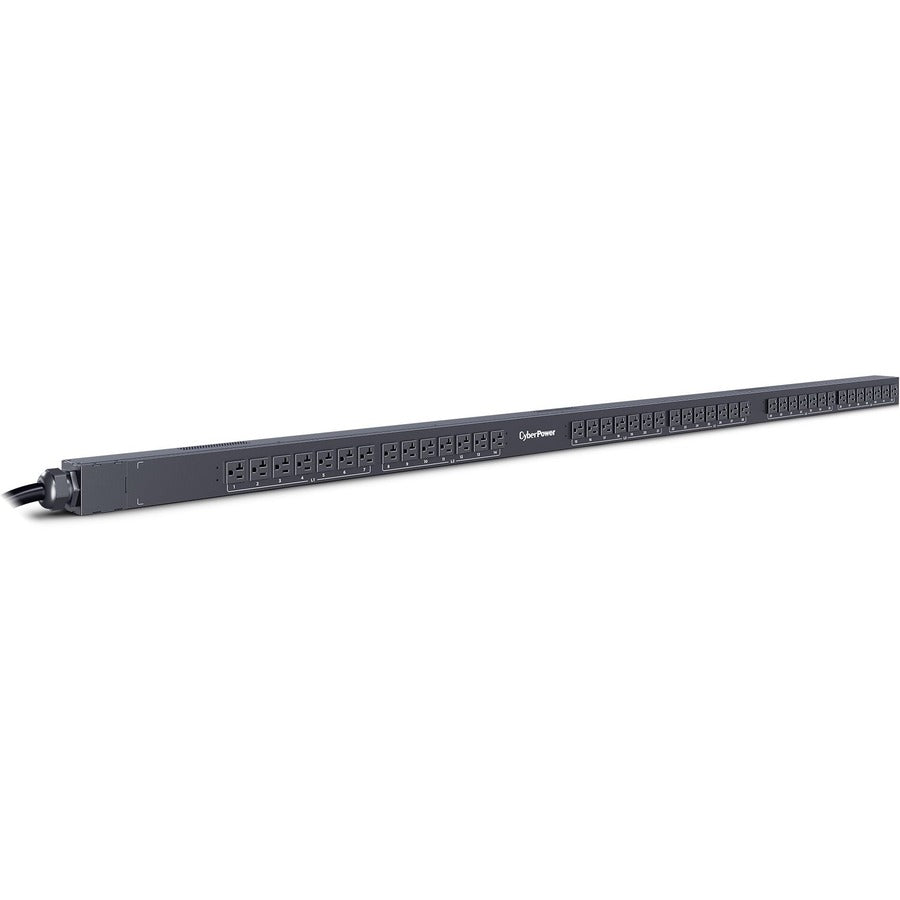

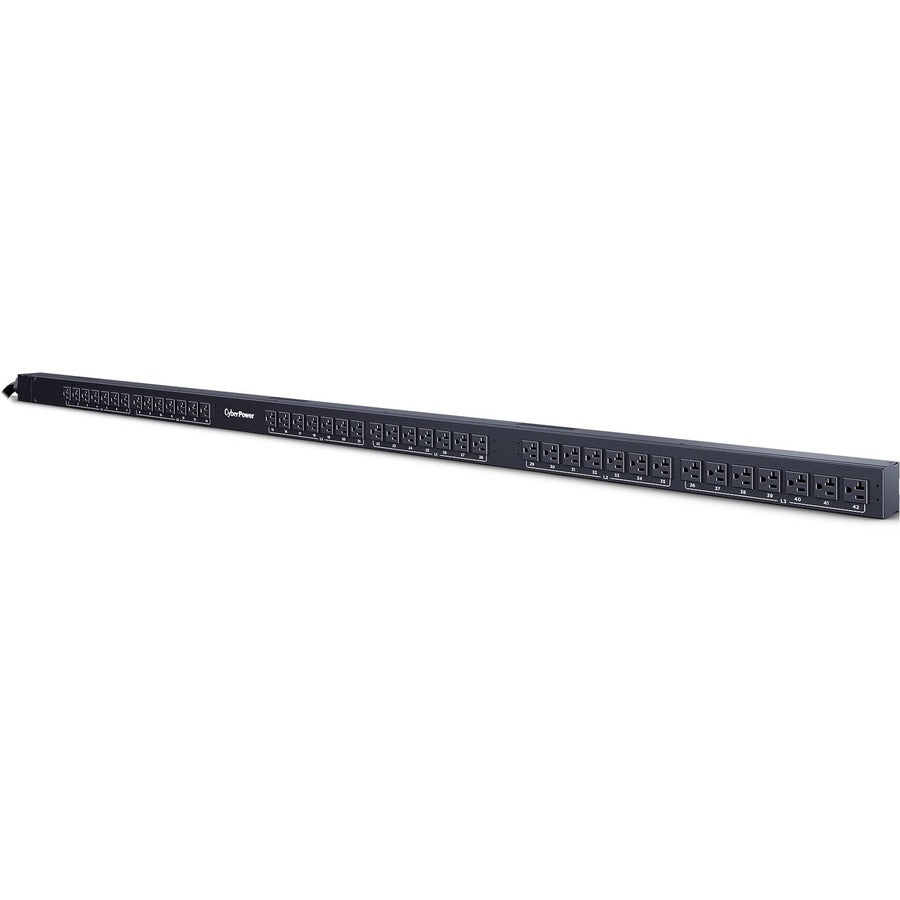

Deliver reliable unfiltered power to connected equipment with the CyberPower PDU13101 basic 3-Phase PDU. Designed for data centers and other electrically demanding applications, this unit features rugged, industrial-grade metal housing, network-grade outlets and operates in high temperatures up to 140°F (60°C).
The PDU13101 supports a 208V 20A input, includes 42 outlets, and provides a maximum output load of 5.7kW. The CyberPower PDU13101 is protected by a three-year limited warranty.
The PDU13101 supports a 208V 20A input, includes 42 outlets, and provides a maximum output load of 5.7kW. The CyberPower PDU13101 is protected by a three-year limited warranty.
- Phase: 3-Phase
- Amps: 20 A (Derated to 16 A)
- Volts: 208 V
- Max. Output Load: 5.7 kW
- Frequency: 50/60 Hz
- Input Plug Type: NEMA L21-20P
- Outlets: (42) NEMA 5-20R
- Size: 0U Rackmount
- Cord Length (ft): 10

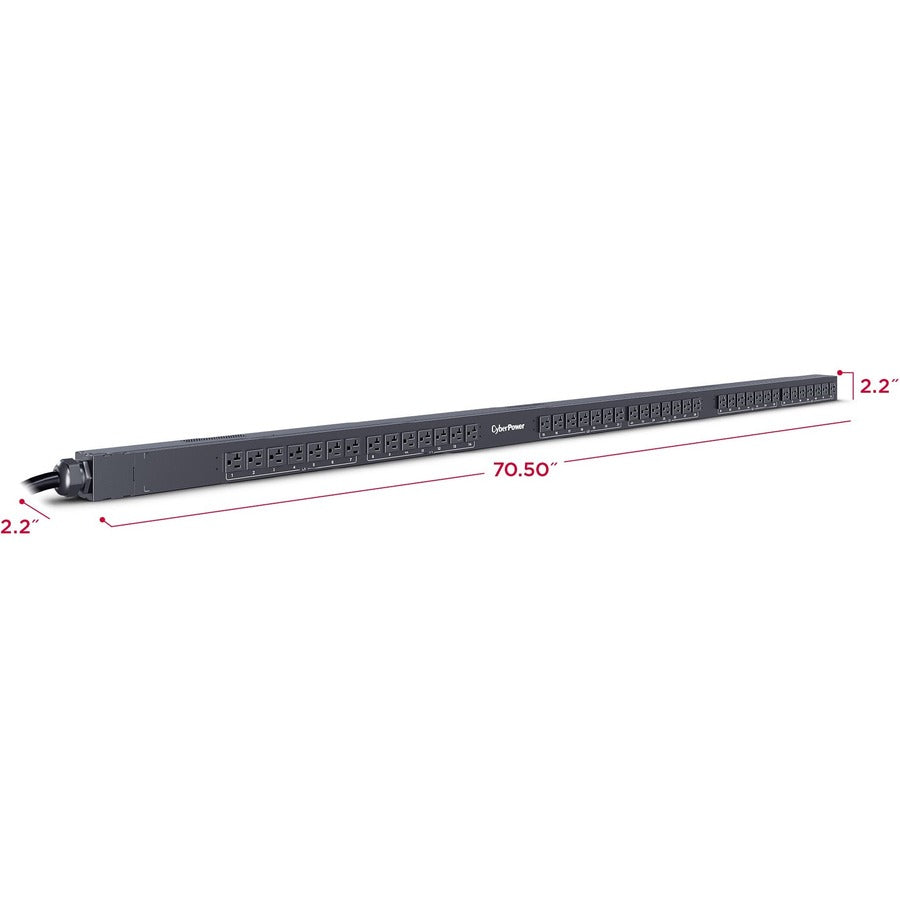

- Dimensions (in): 2.2W x 70.5H x 2.2D
Call for Availability
Regular price
$578
Shipping calculated at checkout
Deliver reliable unfiltered power to connected equipment with the CyberPower PDU13101 basic 3-Phase PDU. Designed for data centers and other electrically demanding applications, this unit features rugged, industrial-grade metal housing, network-grade outlets and operates in high temperatures up to 140°F (60°C).
The PDU13101 supports a 208V 20A input, includes 42 outlets, and provides a maximum output load of 5.7kW. The CyberPower PDU13101 is protected by a three-year limited warranty.
The PDU13101 supports a 208V 20A input, includes 42 outlets, and provides a maximum output load of 5.7kW. The CyberPower PDU13101 is protected by a three-year limited warranty.
- Phase: 3-Phase
- Amps: 20 A (Derated to 16 A)
- Volts: 208 V
- Max. Output Load: 5.7 kW
- Frequency: 50/60 Hz
- Input Plug Type: NEMA L21-20P
- Outlets: (42) NEMA 5-20R
- Size: 0U Rackmount
- Cord Length (ft): 10
- Dimensions (in): 2.2W x 70.5H x 2.2D
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Input Current:
20 A
Input Voltage:
230 V AC
Limited Warranty:
3 Year
Manufacturer:
CyberPower Systems, Inc
Manufacturer Website Address:
https://www.cyberpowersystems.com/
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Output Voltage:
120 V AC
Package Contents:
- PDU13101 42-Outlets PDU
- Adjustable Mounting Brackets
PDU Type:
Basic
Phase:
Three Phase
Plug/Connector Type:
NEMA L21-20P
Power Rating (Watt):
5700 W
Product Color:
Black
Product Model:
PDU13101
Product Type:
PDU
Rack Height:
0U
Receptacle Detail:
42 x NEMA 5-20R
Receptacle Type:
NEMA 5-20R
