PanNet TX6A 10Gig Cat.6a UTP Patch Network Cable

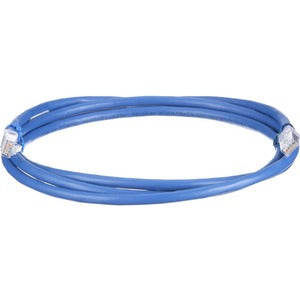

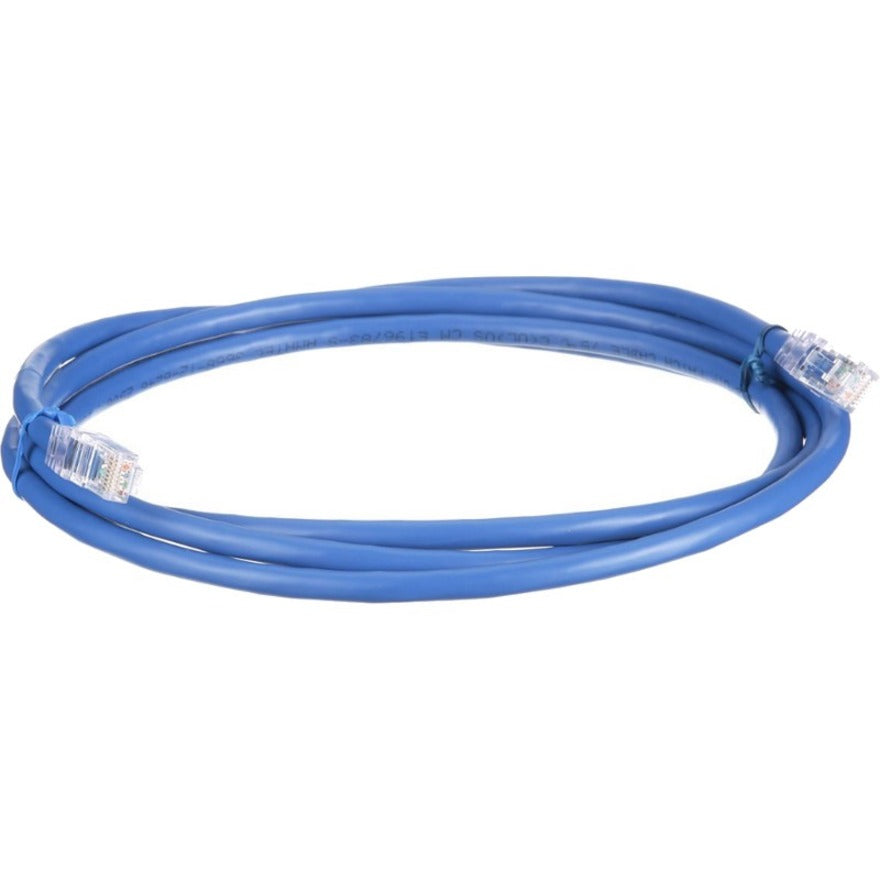

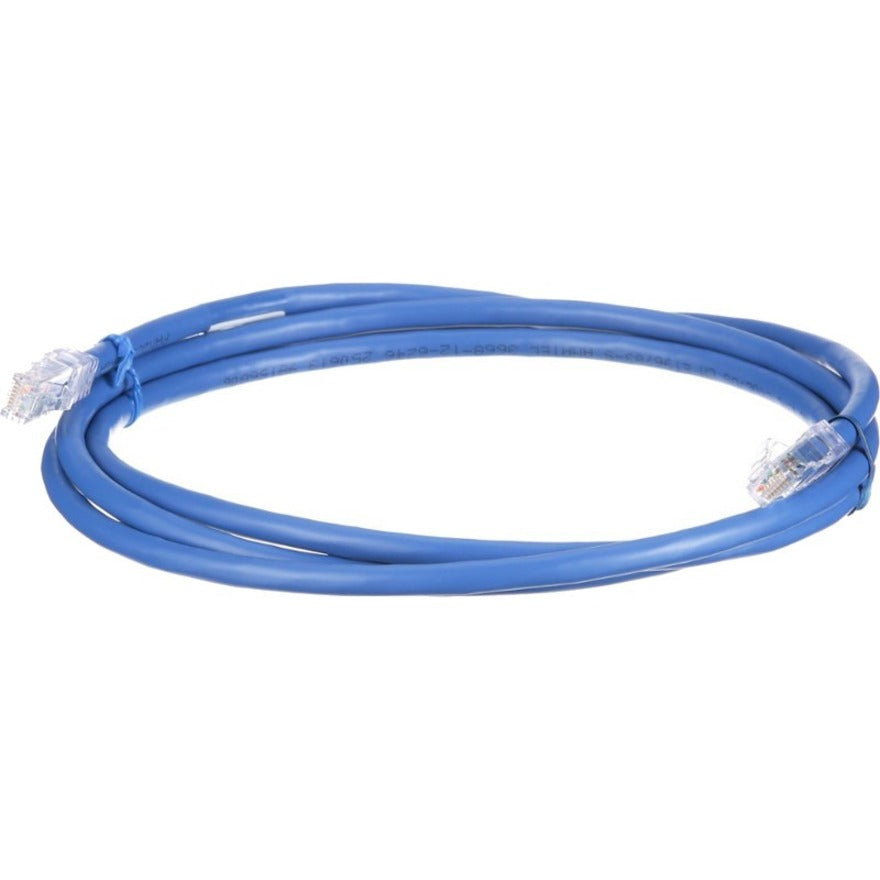

The TX6A™ 10Gig UTP Patch Cord is constructed of 24 AWG solid copper cable with an enhanced performance modular plug on each end. The conductors are twisted in pairs and separated by a quadrant separator. All four pairs are surrounded by solid foil tape and a flame retardant jacket. The tape suppresses alien crosstalk and allows 10 Gb/s transmission. The patented tangle-free latch prevents snags and provides easy release to provide reliability. This patch cord is 9 feet and available in Blue.
- Category 6A/Class EA performance: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements for frequencies up to 500 MHZ.
- Headroom warranty: Guaranteed performance beyond the standard when a complete end-to-end TX6A™ 10Gig UTP Copper Cabling System is installed by a Panduit certified installer
- Cable diameter: 0.250 in. (6.4mm) nominal
- FCC and ANSI compliance: Meets ANSI/TIA-1096-A requirements (formerly FCC Part 68); contacts plated with 50 microinches of gold for superior performance
- RoHS compliance: Compliant
- IEC compliance: Meets IEC 60603-7
- PoE compliance: Compliant with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4
- UL rated: UL 1863 approved
- Flammability rating: CM
Call for Availability
Shipping calculated at checkout
The TX6A™ 10Gig UTP Patch Cord is constructed of 24 AWG solid copper cable with an enhanced performance modular plug on each end. The conductors are twisted in pairs and separated by a quadrant separator. All four pairs are surrounded by solid foil tape and a flame retardant jacket. The tape suppresses alien crosstalk and allows 10 Gb/s transmission. The patented tangle-free latch prevents snags and provides easy release to provide reliability. This patch cord is 9 feet and available in Blue.
- Category 6A/Class EA performance: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements for frequencies up to 500 MHZ.
- Headroom warranty: Guaranteed performance beyond the standard when a complete end-to-end TX6A™ 10Gig UTP Copper Cabling System is installed by a Panduit certified installer
- Cable diameter: 0.250 in. (6.4mm) nominal
- FCC and ANSI compliance: Meets ANSI/TIA-1096-A requirements (formerly FCC Part 68); contacts plated with 50 microinches of gold for superior performance
- RoHS compliance: Compliant
- IEC compliance: Meets IEC 60603-7
- PoE compliance: Compliant with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4
- UL rated: UL 1863 approved
- Flammability rating: CM
