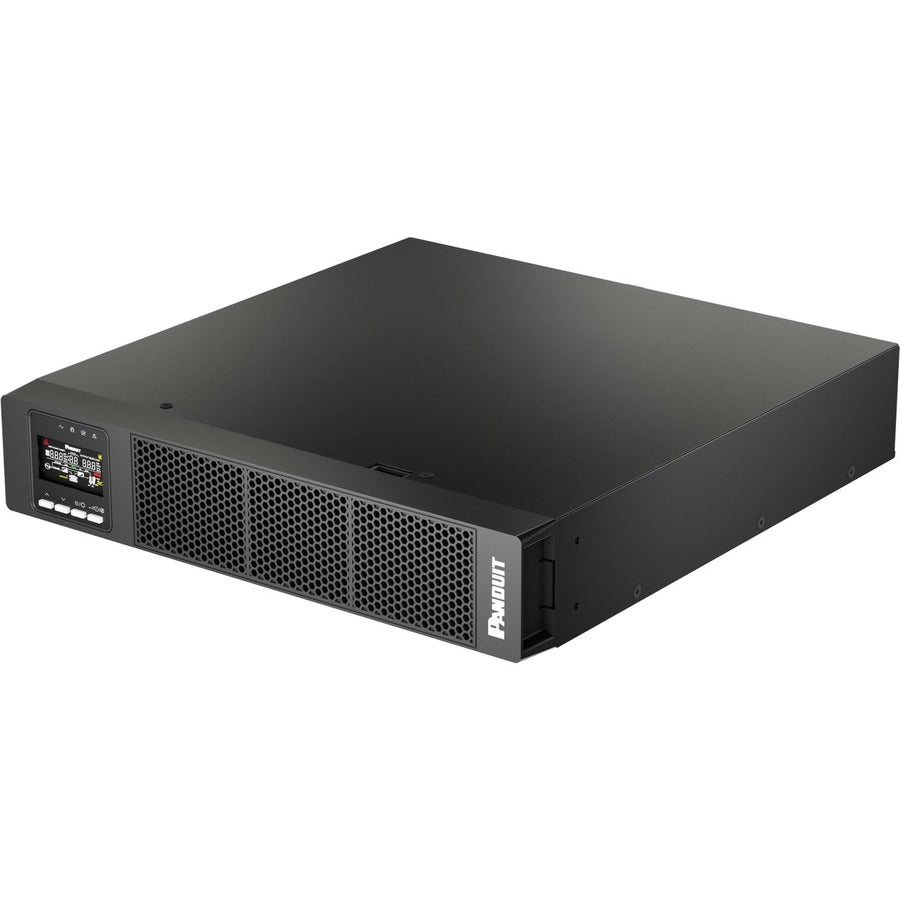

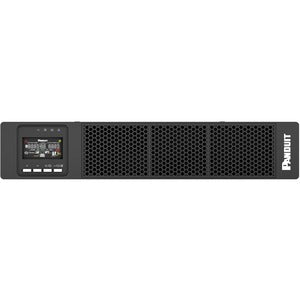

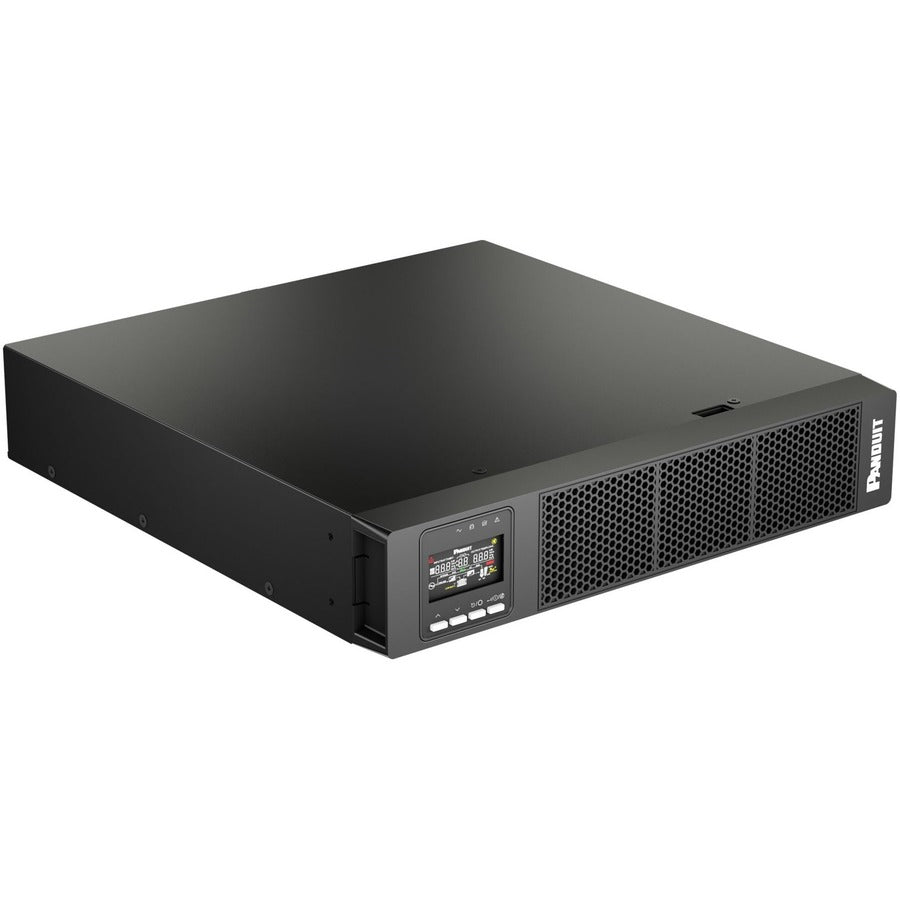

Panduit SmartZone UPS 1kVA
SKU: U01S12V
The Panduit® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Up to 6 minute runtime on full load to preserve critical data from power shortage interruptions
- Prevent critical data loss by staying powered during a blackout with up to 1000 W load capacity
- 1000 VA load capacity - work without any interruption during power outages
- 3 batteries for better reliance and maximum dependability
- 12V battery size for better reliance and optimal performance
- 9000 mAh battery capacity for convenient and prolonged usage to ensure maximum productivity
- 6 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
- Replaceable battery for reliable output for prolonged usage with maximum efficiency
- Lead Acid battery chemistry to better suit your requirements with maximum productivity
Call for Availability
Regular price
$1,226.04
Shipping calculated at checkout
The Panduit® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Up to 6 minute runtime on full load to preserve critical data from power shortage interruptions
- Prevent critical data loss by staying powered during a blackout with up to 1000 W load capacity
- 1000 VA load capacity - work without any interruption during power outages
- 3 batteries for better reliance and maximum dependability
- 12V battery size for better reliance and optimal performance
- 9000 mAh battery capacity for convenient and prolonged usage to ensure maximum productivity
- 6 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
- Replaceable battery for reliable output for prolonged usage with maximum efficiency
- Lead Acid battery chemistry to better suit your requirements with maximum productivity
Additional Warranty Information:
2 years for internal battery cartridges
Alarm:
Overload,Overheat,Over-charge,Low Output Voltage,Short-circuit,Fan Fault,Over-discharge
Application/Usage:
Data Center,Enterprise,IT Equipment
AVR:
Yes
Backup/Run Time (Full Load):
6 Minute
Backup/Run Time (Half Load):
19.10 Minute
Battery Capacity:
9000 mAh
Battery Characteristics:
Valve-regulated
Battery Chemistry:
Lead Acid
Battery Life:
5 Year
Battery Size:
12V
DC System Voltage:
36 V DC
Display:
LCD
Energy Efficiency Certification:
ENERGY STAR 2.0
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) 2
EPO Port:
Yes
Form Factor:
Rack/Tower
Hot Swappable:
Yes
Input Frequency:
70 Hz
Input Voltage:
230 V AC
Input Voltage Range:
176 V AC - 264 V AC,110 V AC - 300 V AC
Limited Warranty:
3 Year
Load Capacity (VA):
1000 VA
Load Capacity (Watt):
1000 W
Manufacturer:
PANDUIT CORP
Manufacturer Website Address:
http://www.panduit.com
Maximum Operating Elevation:
9842.52 ft
Maximum Operating Temperature:
104°F (40°C)
Network Management:
SNMPv3
Number of Batteries:
3
Output Frequency:
60 Hz
Output Power Factor:
1
Output Voltage:
220 V AC,240 V AC,230 V AC
Overload Protection:
Yes
Packaged Quantity:
1
Phase:
Single Phase
Plug/Connector Type:
IEC 60320 C14
Product Color:
Black
Product Line:
SmartZone
Product Type:
Double Conversion Online UPS
Rack Height:
2U

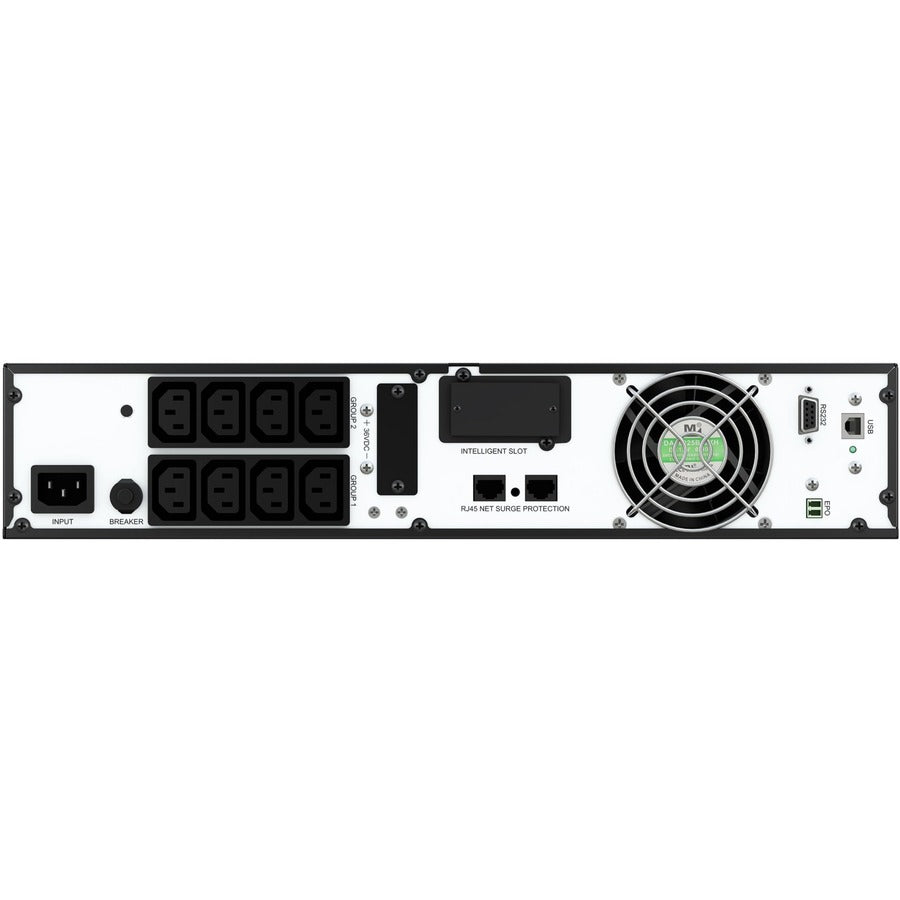

Receptacle Detail:
8 x IEC 60320 C13
Receptacle Type:
IEC 60320 C13
Replaceable Battery:
Yes
Serial Port:
Yes
Status Indicators:
Colorful LCD with four buttons and LED indicators, providing intuitive display
Storage Temperature:
-13°F (-25°C) - 131°F (55°C)
Thermal Dissipation:
117.23 W
Transfer Time:
0 ns
Typical Battery Recharge Time:
6 Hour
USB:
Yes
Waveform Type:
Pure Sine Wave
