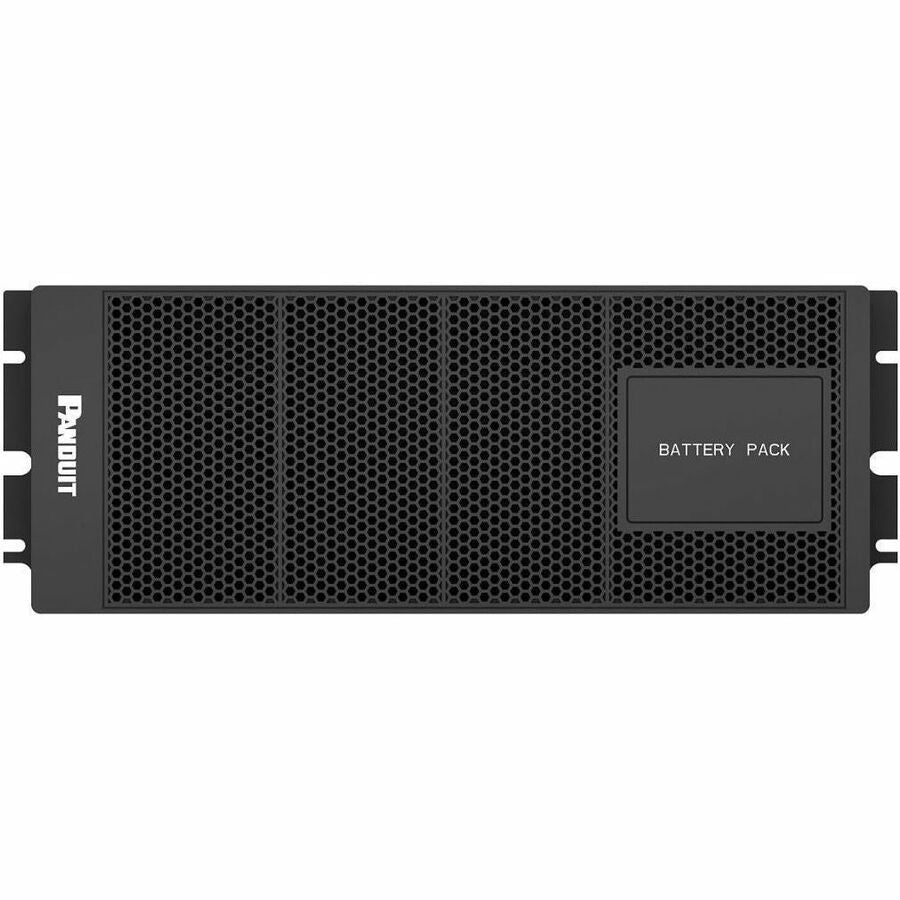

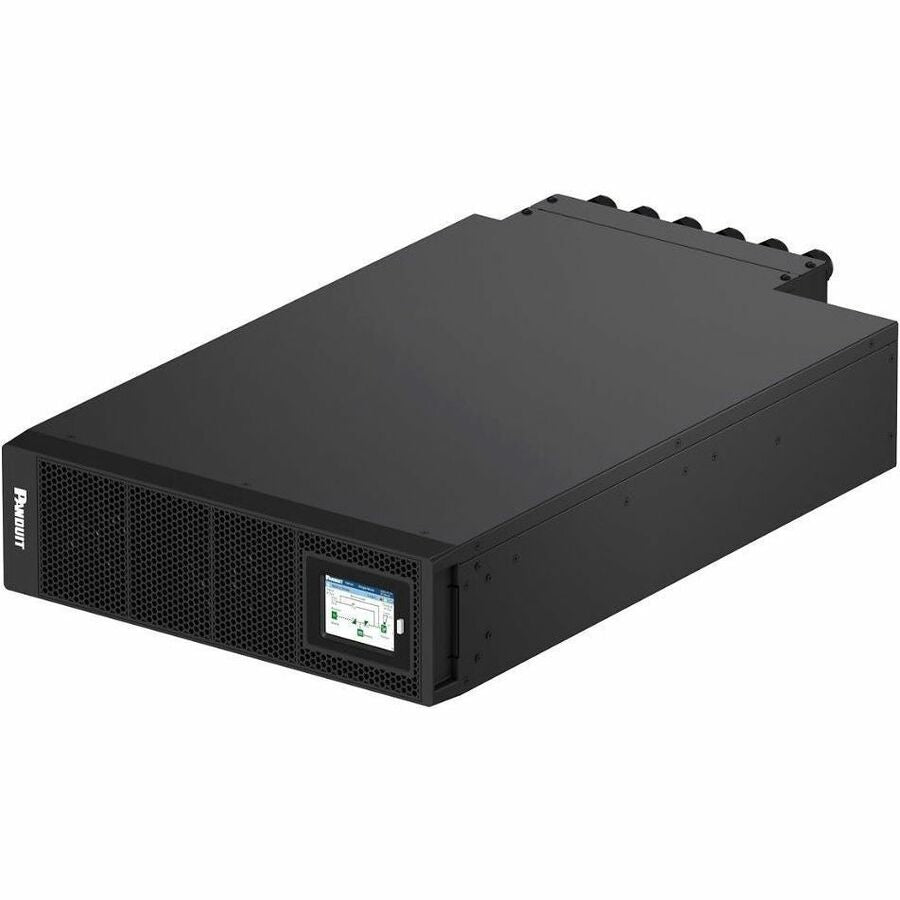

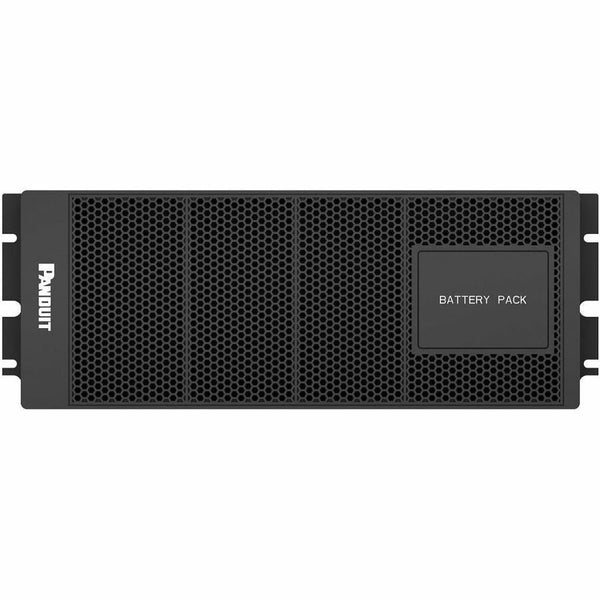

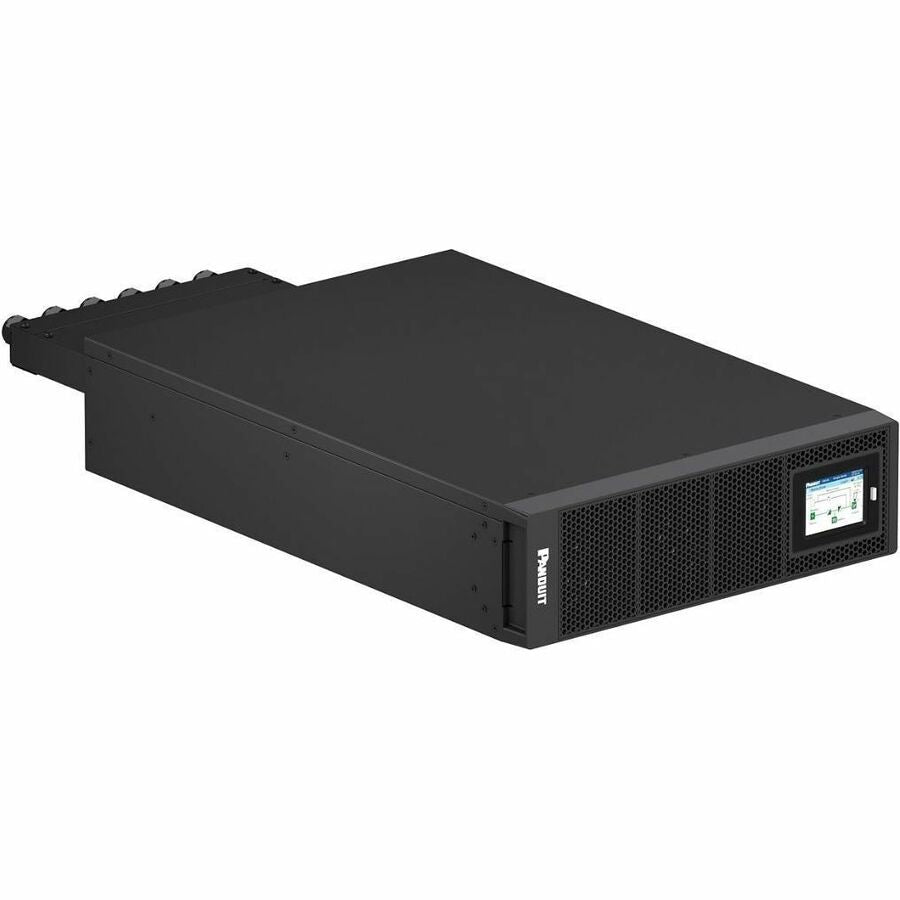

Panduit SmartZone U10S32V 10000VA Rack-mountable UPS
The UPS with maintenance-free VRLA battery, 3-Phase 230/400 V unit is a true Online Double Conversion system that delivers highly efficient and reliable power protection for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring, and network functions, complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise, and Edge IT equipment.
Key Features and Benefits | Online Double Conversion with fully digital control
Provides stable and clean power with less ripple and by filtering noise, automatic voltage regulation (AVR) and surge protection
Wide input voltage range
138-485Vac, covering extended voltage range, applicable for severe situation such as large power grid fluctuation
High efficiency
Up to 98.5%, reducing the energy waste and the cost of electricity
Energy savings
High Efficiency on Smart ECO mode for Online Double Conversion models
Green design
RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
Output unity power factor
Means more active power for customer's load
Input power factor
Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
Matchable battery packs:
Allows to connect maximum four external battery packs, extending the UPS backup time
Three-stage battery charging method
Three-stage battery charging method matching the most optimal curve and temperature compensated with advanced algorithms prolonging the battery life
EPO function (Emergency Power Off)
Allows to quickly and easily shut down the UPS when emergency event occurs
Generator compatible
Wide input frequency and voltage, supports connecting to generators, ensuring the uninterruptible operation
Hot-Swappable battery design
Can perform the replacement of battery cartridge without powering down the UPS
Cold start function
Allows to boot up the UPS without mains input but with batteries
Intelligent fan speed regulation
Automatic adjustment of fan speed due to the ambient temperature and load percentage

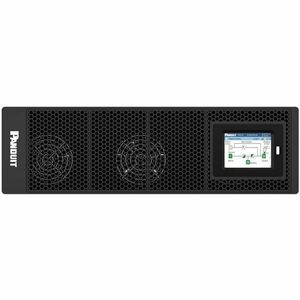

Touch-screen colorful LCD
Colorful LCD with cold start button and LED indicators, providing intuitive display

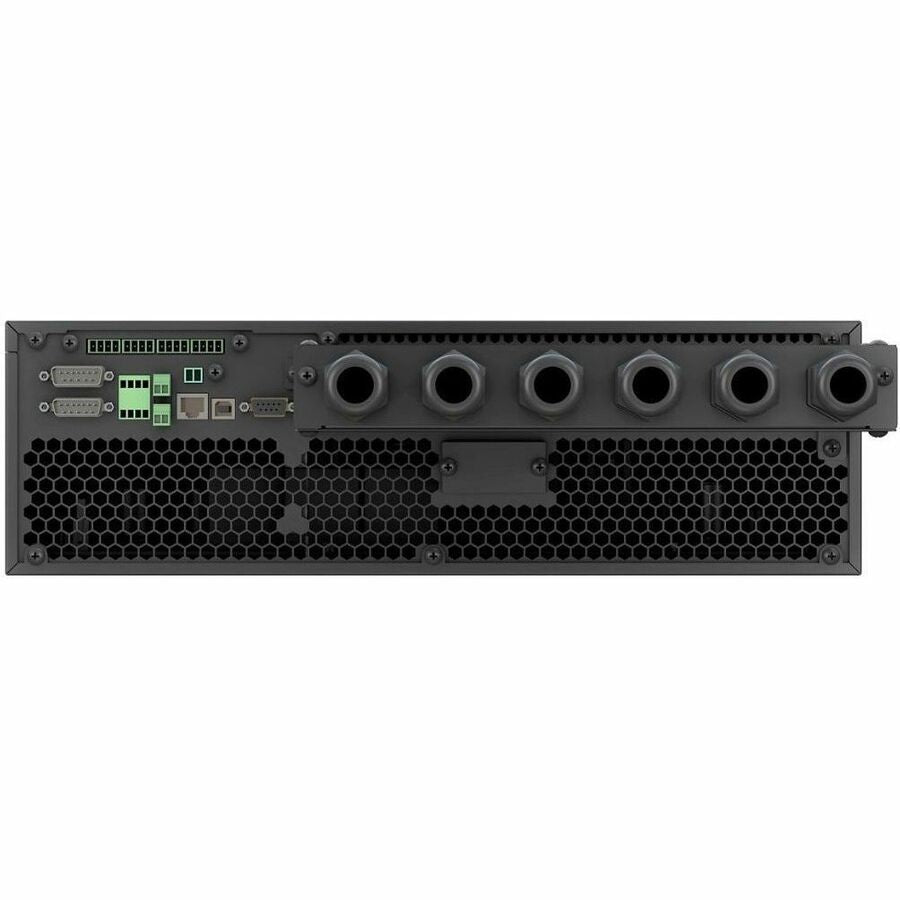

Multiple communication interface
RS232/RS485/USB/intelligent slot, realizing communication and monitoring function
Comprehensive protection function
Short-circuit, overload, overheat, battery overcharge and over discharge, output low voltage and fan fault alarm
Parallel functionality:
Connect up to 4 units to achieve very high availability of backup power
Inverter design
3-Level IGBT for significant advantages of high efficiency, impact resistance, and reliability
Additional Redundancy
Shared battery group and support dual input to achieve very high availability of backup power
Output Options
Supports 3-Phase or single phase output
Call for Availability
Shipping calculated at checkout
The UPS with maintenance-free VRLA battery, 3-Phase 230/400 V unit is a true Online Double Conversion system that delivers highly efficient and reliable power protection for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring, and network functions, complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise, and Edge IT equipment.
Key Features and Benefits | Online Double Conversion with fully digital control
Provides stable and clean power with less ripple and by filtering noise, automatic voltage regulation (AVR) and surge protection
Wide input voltage range
138-485Vac, covering extended voltage range, applicable for severe situation such as large power grid fluctuation
High efficiency
Up to 98.5%, reducing the energy waste and the cost of electricity
Energy savings
High Efficiency on Smart ECO mode for Online Double Conversion models
Green design
RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
Output unity power factor
Means more active power for customer's load
Input power factor
Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
Matchable battery packs:
Allows to connect maximum four external battery packs, extending the UPS backup time
Three-stage battery charging method
Three-stage battery charging method matching the most optimal curve and temperature compensated with advanced algorithms prolonging the battery life
EPO function (Emergency Power Off)
Allows to quickly and easily shut down the UPS when emergency event occurs
Generator compatible
Wide input frequency and voltage, supports connecting to generators, ensuring the uninterruptible operation
Hot-Swappable battery design
Can perform the replacement of battery cartridge without powering down the UPS
Cold start function
Allows to boot up the UPS without mains input but with batteries
Intelligent fan speed regulation
Automatic adjustment of fan speed due to the ambient temperature and load percentage
Touch-screen colorful LCD
Colorful LCD with cold start button and LED indicators, providing intuitive display
Multiple communication interface
RS232/RS485/USB/intelligent slot, realizing communication and monitoring function
Comprehensive protection function
Short-circuit, overload, overheat, battery overcharge and over discharge, output low voltage and fan fault alarm
Parallel functionality:
Connect up to 4 units to achieve very high availability of backup power
Inverter design
3-Level IGBT for significant advantages of high efficiency, impact resistance, and reliability
Additional Redundancy
Shared battery group and support dual input to achieve very high availability of backup power
Output Options
Supports 3-Phase or single phase output
3 years for UPS and 2 years for VRLA battery cartridges
