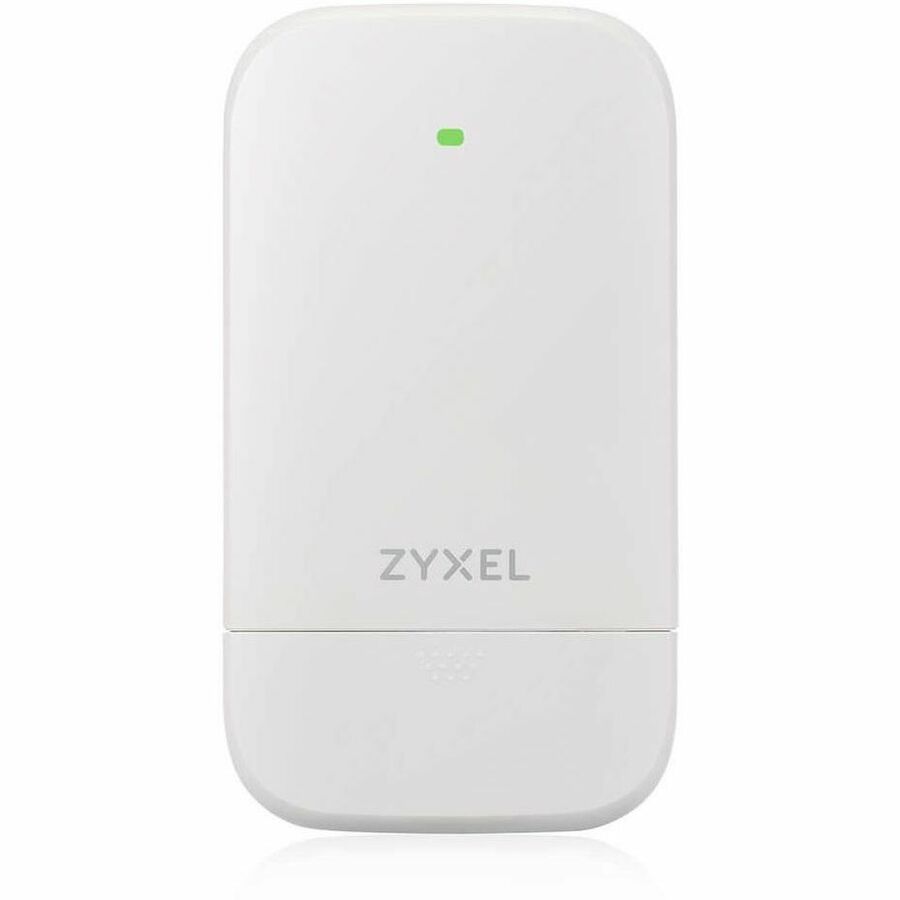

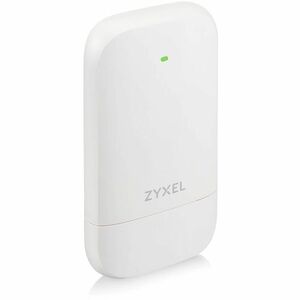

ZYXEL 802.3bt Outdoor PoE Extender

The PoE12-3PD is a Gigabit PoE Extender designed for point to multipoint PoE applications, which effortlessly extend the range of power and data connectivity when your devices are located at a distance that far away from power source or connection to a PoE Switch. It features four RJ-45 Gigabit Ethernet ports, offering one (1) PoE++ PoE input port with up to 60W power input and three PoE output to your devices. Instead of connecting to an AC adapter, connecting via a PoE switch enables better visibility for network management to cover the edge of your network. It features three PoE+ ports to power a variety of PoE devices, including IP cameras, VoIP handsets, IoT device, Sensors, PoE switches and wireless access points. PoE12-3PD is good for residential and commercial network environment.

Benefits | Flexible PoE connection for versatile devices

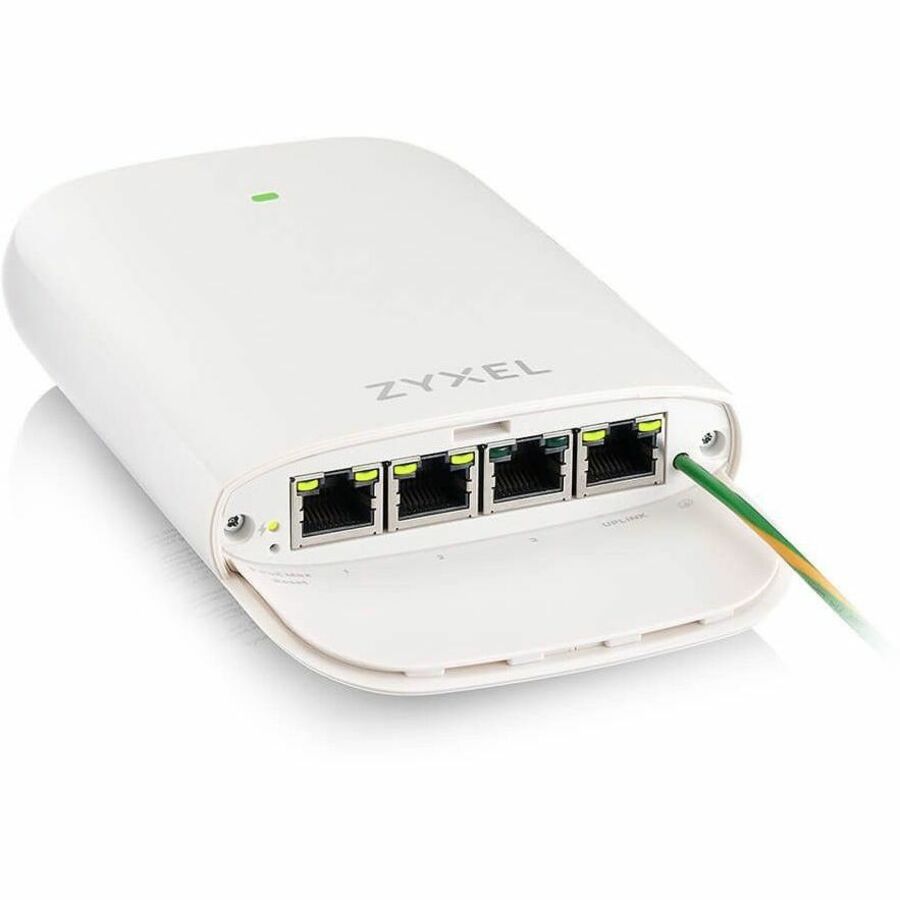

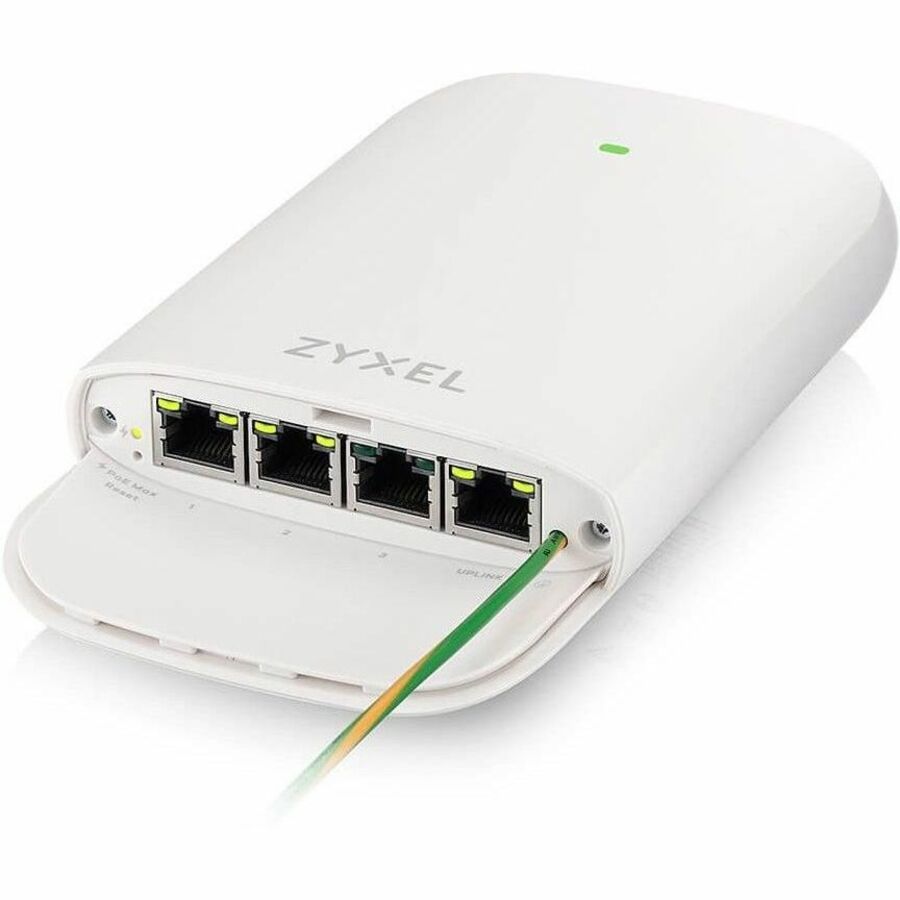

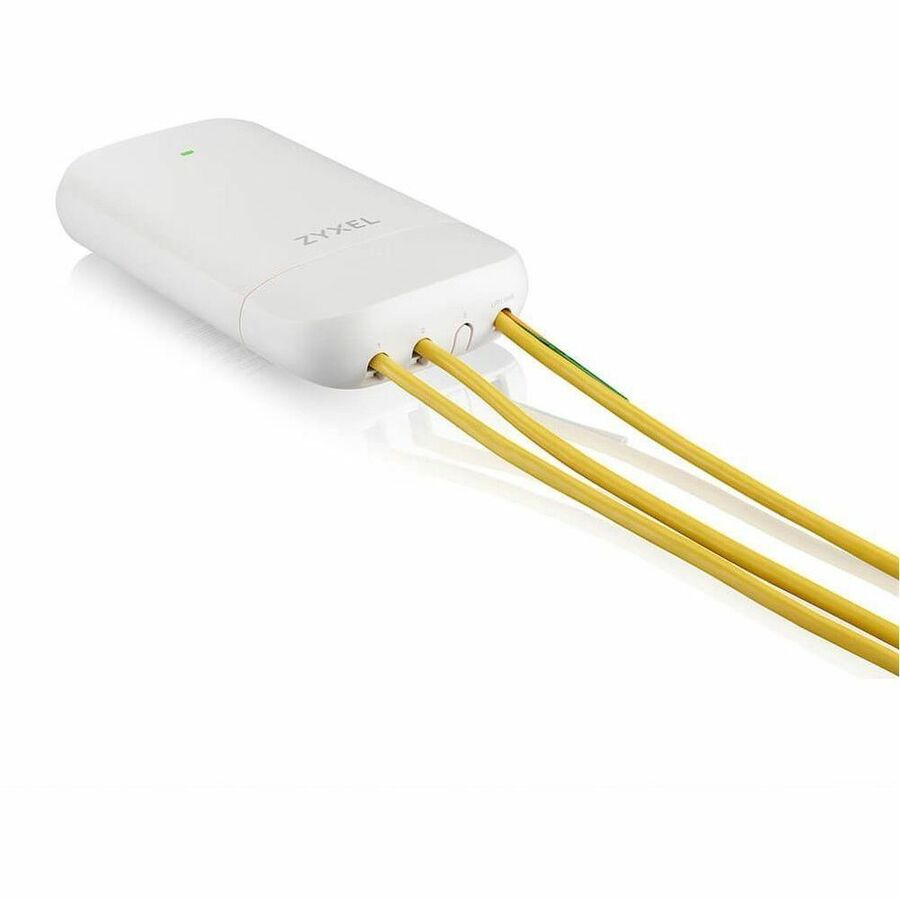

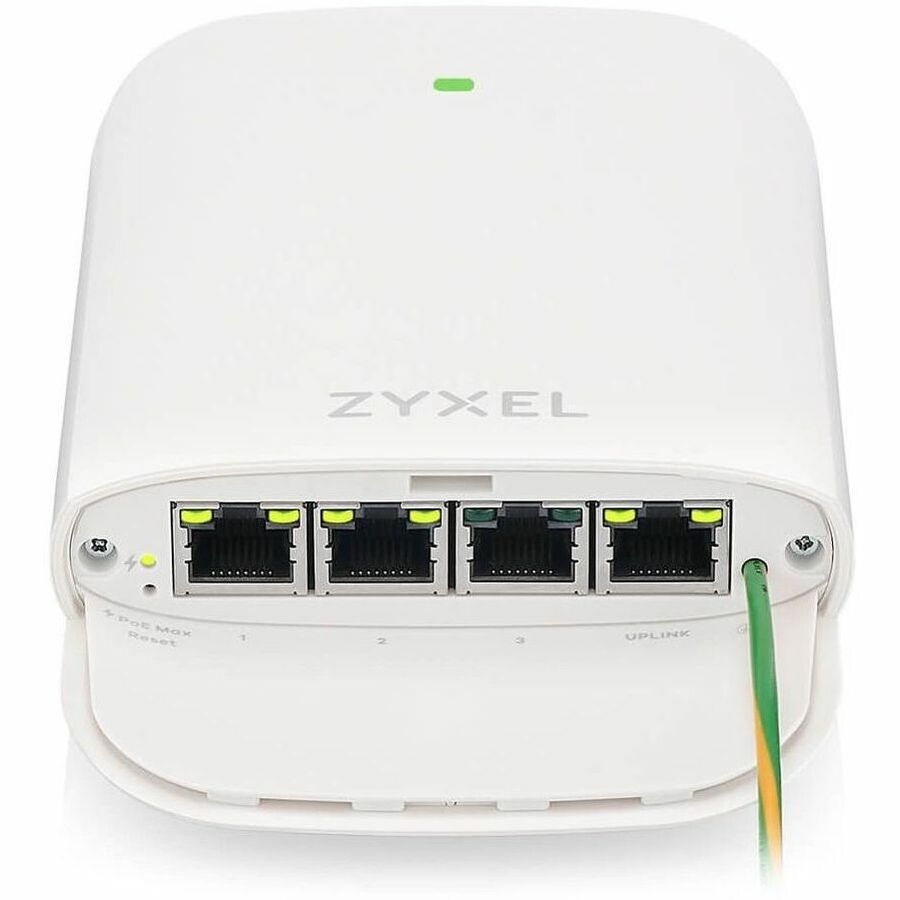

The PoE12-3PD utilizes four Gigabit RJ-45 ports with PoE, offering both data and power over the same Ethernet cable. The IEEE 802.3bt input port supports up to 60W for the PoE extender, while the 802.3at PoE+ output ports (Port 1-3) deliver up to 30W per port to your devices. It extends the PoE connection beyond the standard maximum distance of 100 meters, reaching even to the edge of your network. This device efficiently expands network capability for office, smart home, or industrial environments.

Check the status wherever and whenever

With support from Nebula, you can monitor the status of the PoE12-3PD through the Nebula control center via both the web interface and mobile app, enabling convenient access anytime, anywhere.

Continuous PoE

The PoE12-3PD features Continuous PoE capability to ensure non-stop power supply to IP cameras while the it is undergoing firmware upgrade or rebooting. Your surveillance network stays up-to-date for the highest possible stability and security.

Easy installation to fit in any deployments

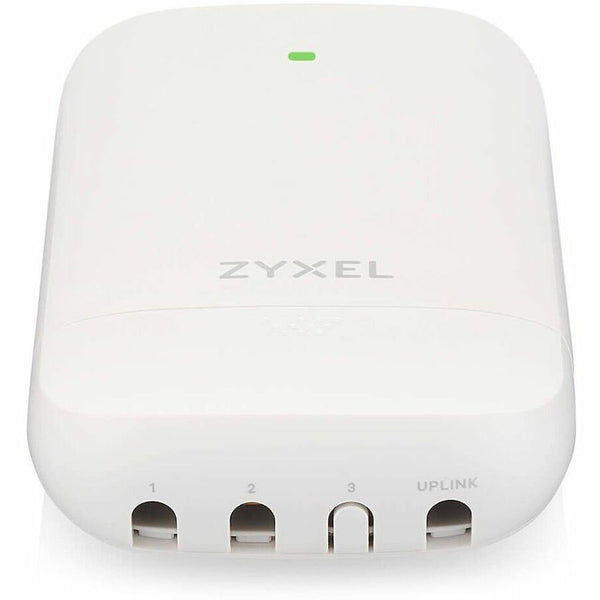

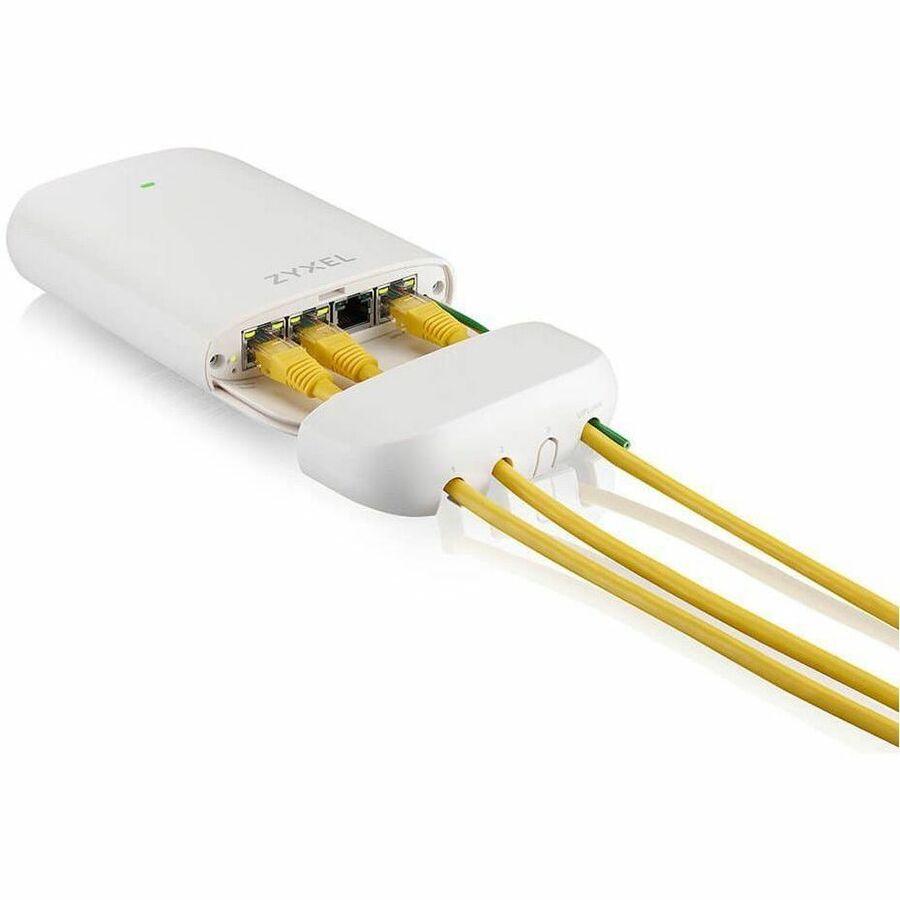

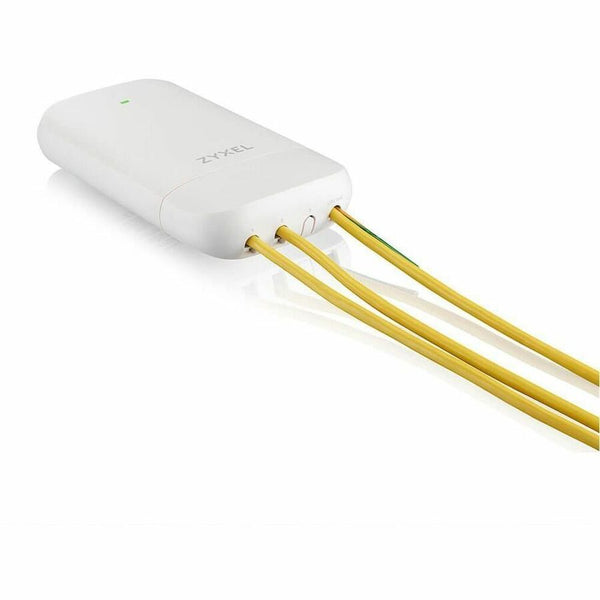

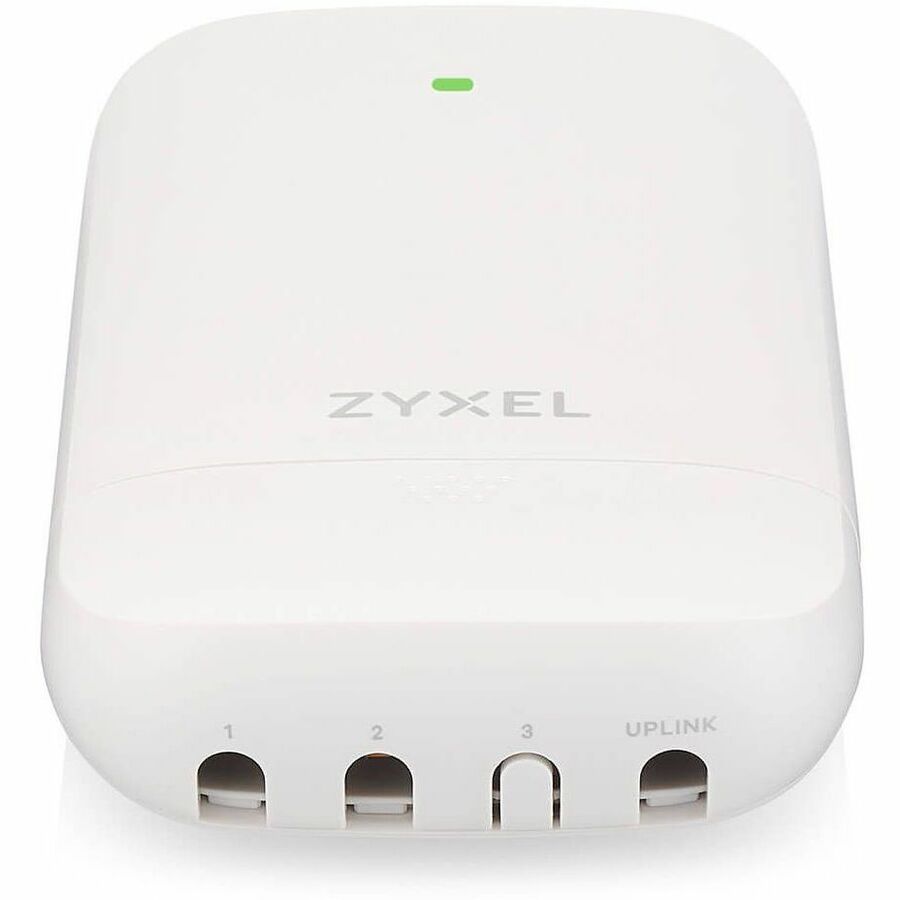

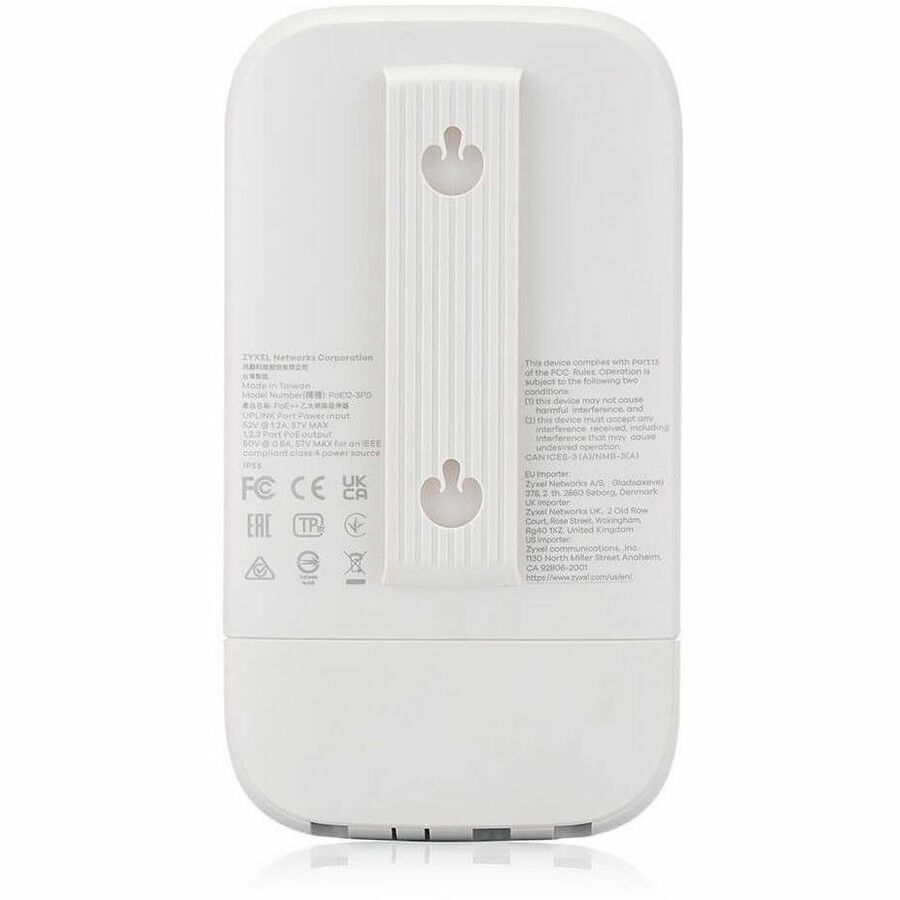

To install the PoE12-3PD, just plug and play, no other settings required, no external power required as well. Additionally, designed with wall- and pole-mount and IP55 enclosure, the PoE12-3PD can be easily installed in most vertical locations. It is suitable for installation in hard-to-reach locations such as large buildings or outdoor environments.

Robust design for harsh environments

?With built-in 6KV stringent surge protection and designed to handle temperatures ranging from -20°C to 50°C, the PoE12-3PD can be placed in a variety of challenging environments and adapted to a broad range of field applications.

• Continuous PoE
• Remove Port PoE on/off
• Support Port status (including PoE status, consuming)
• Device Factory Reset
• IP55 waterproof rating enclosure
• Support wide temperature
• Firmware upgrade
• System log
• NTP
• Nebula Cloud management
• Web GUI
