Transition Networks ION Fiber to Fiber Media Converter Module

SKU: C3100-4040

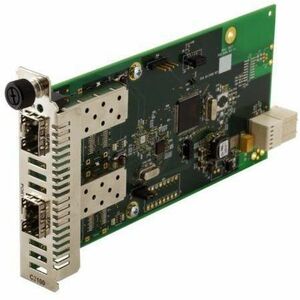

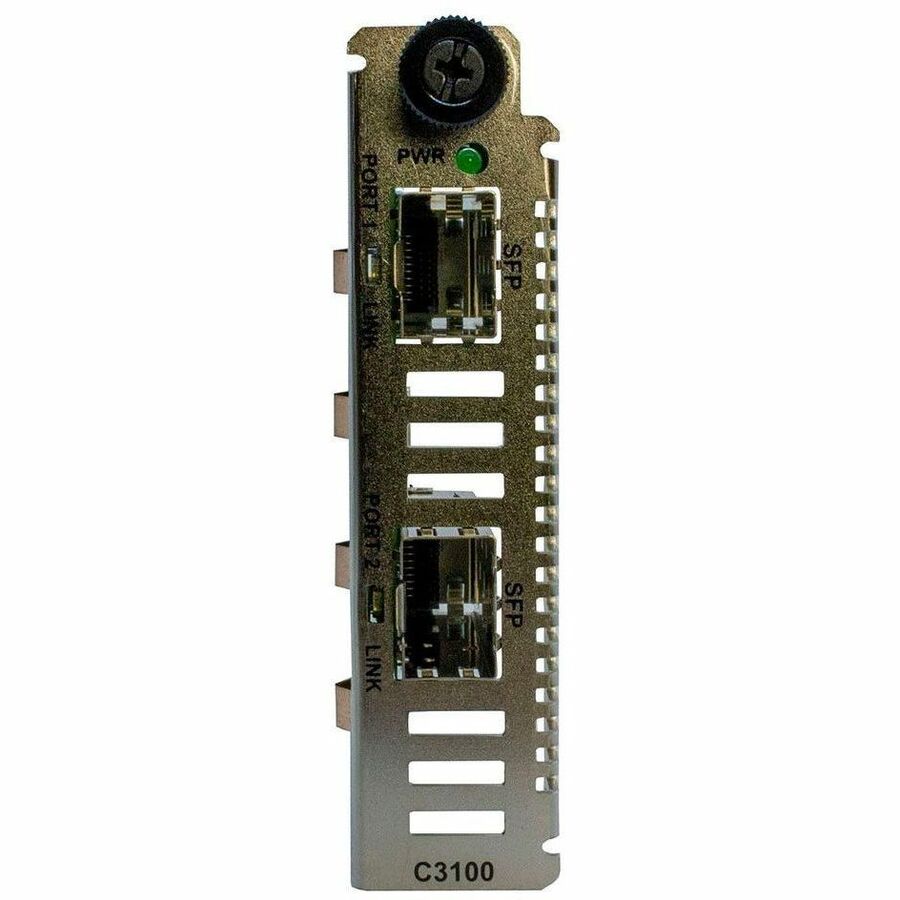

The ION C3100 is a fiber to fiber media converter module. It is protocol independent and supports data rates from 100Mbps to 2.5Gbps through two open SFP slots. This any-rate to same-rate converter can be used to perform reliable and cost-effective single mode to multimode fiber conversion or it can be used to provide wavelength conversion in CWDM applications. The ION C3100 is a manageable device when installed in a managed ION chassis.

  • Protocol Transparent
  • Supports data rates from 100Mbps to 2.5Gbps
  • Any-rate to same-rate conversion
  • SFP to SFP Fiber Repeater
  • Specific wavelength CWDM Transponder
  • Supported protocols: Fast Ethernet, Gigabit Ethernet, SONET (OC3/12/48), 1 & 2 Gig Fiber Channel, 2.5G InfiniBand, FDDI, ESCON/ SBCON
  • DMI, Digital diagnostics statistics available through ION Management Module
  • Link Pass Through
  • Automatic Link Restoration

Call for Availability

Regular price $511.59 Sale price $523
On Sale

Shipping calculated at checkout

Details

The ION C3100 is a fiber to fiber media converter module. It is protocol independent and supports data rates from 100Mbps to 2.5Gbps through two open SFP slots. This any-rate to same-rate converter can be used to perform reliable and cost-effective single mode to multimode fiber conversion or it can be used to provide wavelength conversion in CWDM applications. The ION C3100 is a manageable device when installed in a managed ION chassis.

  • Protocol Transparent
  • Supports data rates from 100Mbps to 2.5Gbps
  • Any-rate to same-rate conversion
  • SFP to SFP Fiber Repeater
  • Specific wavelength CWDM Transponder
  • Supported protocols: Fast Ethernet, Gigabit Ethernet, SONET (OC3/12/48), 1 & 2 Gig Fiber Channel, 2.5G InfiniBand, FDDI, ESCON/ SBCON
  • DMI, Digital diagnostics statistics available through ION Management Module
  • Link Pass Through
  • Automatic Link Restoration
Specifications
Environmentally Friendly:
Yes
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Ethernet Technology:
2.5 Gigabit Ethernet
Expansion Slot Type:
SFP (mini-GBIC)
Fiber Mode Supported:
Multi-mode,Single-mode
Limited Warranty:
Lifetime
Manufacturer:
Lantronix, Inc
Manufacturer Website Address:
http://www.lantronix.com
Maximum Data Transfer Rate:
2.50 Gbit/s
Media Type Supported:
Optical Fiber
Network Technology:
100Base-X,2.5GBase-X
Number of SFP Slots:
2
Packaged Quantity:
1
Power Consumption:
3 W
Power Source:
AC/DC
Product Line:
ION
Product Model:
C3100-4040
Product Type:
Transceiver/Media Converter
Total Number of Expansion Slots:
2
