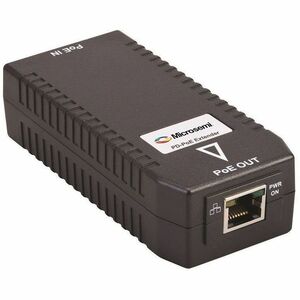

Microchip PoE Extender
SKU: PD-PoE-Extender
With Microchip's PoE-extender, you can easily improve the range and placement of your wireless and surveillance networks and therefore the strength of your networks. PD-POE-Extender is a cost-effective way to extend the Ethernet network range beyond 100m, the PoE-extender will deliver both data and power to network devices up to 200m while complying with IEEE PoE and data standards. The PoE-extender has both a PD and a PSE chip inside so both the power and the data may be reliably transmitted beyond 100m. The extender acts as a pass-through with data-repeating capabilities. It can be cascaded to reach up to 500m from the closest datacenter or network closet so you can easily install WLAN APs, IP cameras and access controllers where you need them.
Additional Features
- Number of ports: 1
- PoE output: 30W
- Data rates: 10/100/1000 Mbps
- Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
- EMI: FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024 (immunity), VCCI
- Safety: UL/cUL Per EN 60950, GS Mark Per EN 60950
Call for Availability
Regular price
$222.22
Shipping calculated at checkout
With Microchip's PoE-extender, you can easily improve the range and placement of your wireless and surveillance networks and therefore the strength of your networks. PD-POE-Extender is a cost-effective way to extend the Ethernet network range beyond 100m, the PoE-extender will deliver both data and power to network devices up to 200m while complying with IEEE PoE and data standards. The PoE-extender has both a PD and a PSE chip inside so both the power and the data may be reliably transmitted beyond 100m. The extender acts as a pass-through with data-repeating capabilities. It can be cascaded to reach up to 500m from the closest datacenter or network closet so you can easily install WLAN APs, IP cameras and access controllers where you need them.
Additional Features
- Number of ports: 1
- PoE output: 30W
- Data rates: 10/100/1000 Mbps
- Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
- EMI: FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024 (immunity), VCCI
- Safety: UL/cUL Per EN 60950, GS Mark Per EN 60950
Additional Information:
- Extends Power over Ethernet Installations to 200 Meters
- Connectors: Shielded RJ-45 female socket
- Pass Through Data Rates: 10/100/1000 Mbps
- Provides 802.3af power levels when powered by any 802.3at source
- Provides 802.3at power levels when powered by PowerDsine 95xx Midspans
- Extenders can be cascaded to reach up to 500m
- Cost effective installation - no need for local power
- Plug and play installation - no configuration needed
Certifications & Standards:
- UL/cUL Per EN 60950
- GS Mark Per EN 60950
- FCC Part 15, Class B
- EN 55022 Class B (Emissions)
- EN 55024 (Immunity)
- VCCI
- IEEE802.3at (PoE)
- CE
Country of Origin:
Philippines
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Manufacturer:
Microchip Technology Inc.
Manufacturer Website Address:
http://www.microchip.com
Maximum Data Transfer Rate:
128 MB/s
Maximum Extended Range:
328.08 ft
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Packaged Quantity:
1
Product Line:
PowerDsine
Product Model:
PD-PoE-Extender
Product Type:
Network Extender
Transmitter Weight (Approximate):
3.53 oz
