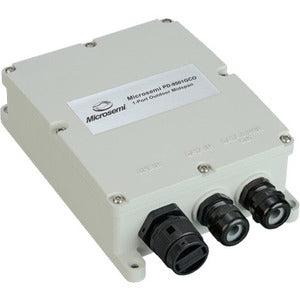

Microchip 1-Port Outdoor PoE Midspan, 60 W
SKU: PD-9501GCO/AC
Microchip's single-port PoE midspan offers a cost effective, IEEE 802.3bt Type3 compliant solution and Pre-bt support for outdoor installations, guaranteeing 60 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. The PD-9501GCO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
- Number of ports: 1
- PoE output: 60W
- Data rates: 10/100/1000 Mbps
- Power input: AC
- Outdoor rated: IP67
- Regulatory compliance: IEEE 802.3bt type 3, IEEE 802.3af/at (PoE), RoHS Compliant, WEEE Compliant, CE
- EMI: FCC Part 15, Class B, EN 55032 Class B (Emissions), EN 55024, EN61000-4-5: Class 5 (AC lines 6kV CM/DM) VCCI
- Surge Protection: Design to meets Surge Protection as specified in: GR-1089-CORE Issue 4 ITU-T K.21 enhanced surge level protection (6 kV on Data and AC lines)
- Safety: UL/IEC/EN 60950-1 (ed.2), UL 60950-22
- Other standards: Dust proof and water resistance: EN60529, Approvals Level IP67; NEMA 250, Level 4X ASTM B-117 Corrosion Resistance
Call for Availability
Regular price
$299.60
Shipping calculated at checkout
Microchip's single-port PoE midspan offers a cost effective, IEEE 802.3bt Type3 compliant solution and Pre-bt support for outdoor installations, guaranteeing 60 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. The PD-9501GCO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
- Number of ports: 1
- PoE output: 60W
- Data rates: 10/100/1000 Mbps
- Power input: AC
- Outdoor rated: IP67
- Regulatory compliance: IEEE 802.3bt type 3, IEEE 802.3af/at (PoE), RoHS Compliant, WEEE Compliant, CE
- EMI: FCC Part 15, Class B, EN 55032 Class B (Emissions), EN 55024, EN61000-4-5: Class 5 (AC lines 6kV CM/DM) VCCI
- Surge Protection: Design to meets Surge Protection as specified in: GR-1089-CORE Issue 4 ITU-T K.21 enhanced surge level protection (6 kV on Data and AC lines)
- Safety: UL/IEC/EN 60950-1 (ed.2), UL 60950-22
- Other standards: Dust proof and water resistance: EN60529, Approvals Level IP67; NEMA 250, Level 4X ASTM B-117 Corrosion Resistance
Compatibility:
Compatible Devices:
- LAN Access Points
- Security Network Cameras
- IP Terminals
Form Factor:
External
Limited Warranty:
3 Year
Manufacturer:
Microchip Technology Inc.
Manufacturer Website Address:
http://www.microchip.com
Maximum Output Power:
60 W
Maximum Output Voltage:
54 V DC
Output Ports:
1 x Gigabit PoE
Product Model:
PD-9501GCO
Product Type:
PoE Injector
Protection Type:
Surge Protection
