Draper Access V 119" Electric Projection Screen

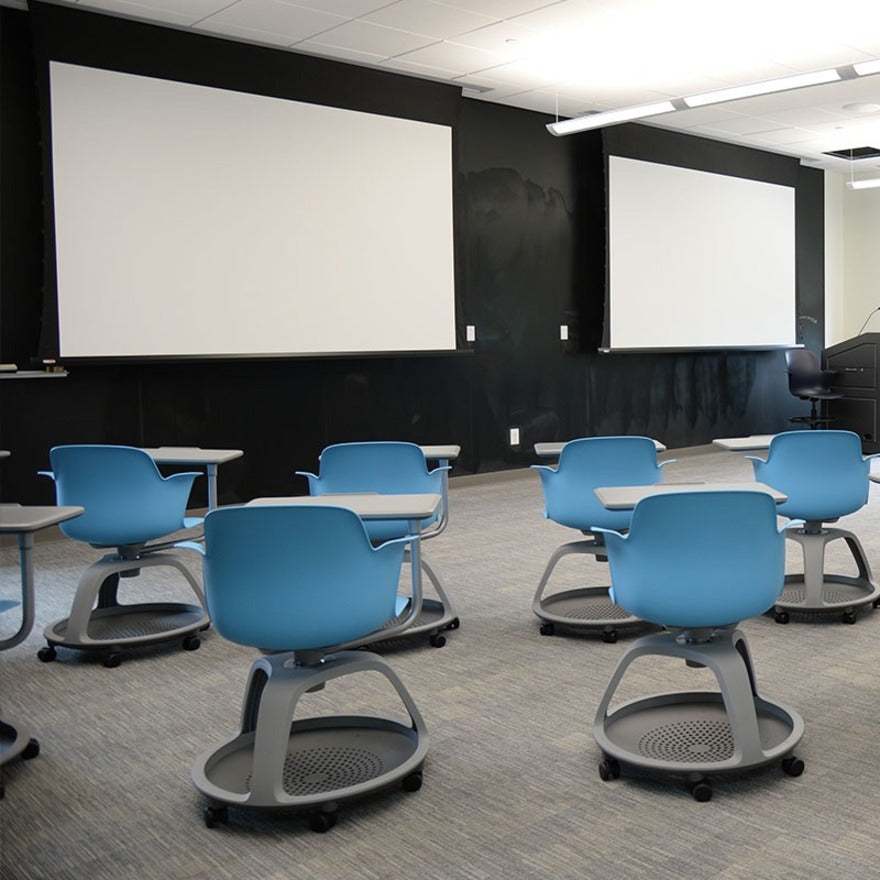

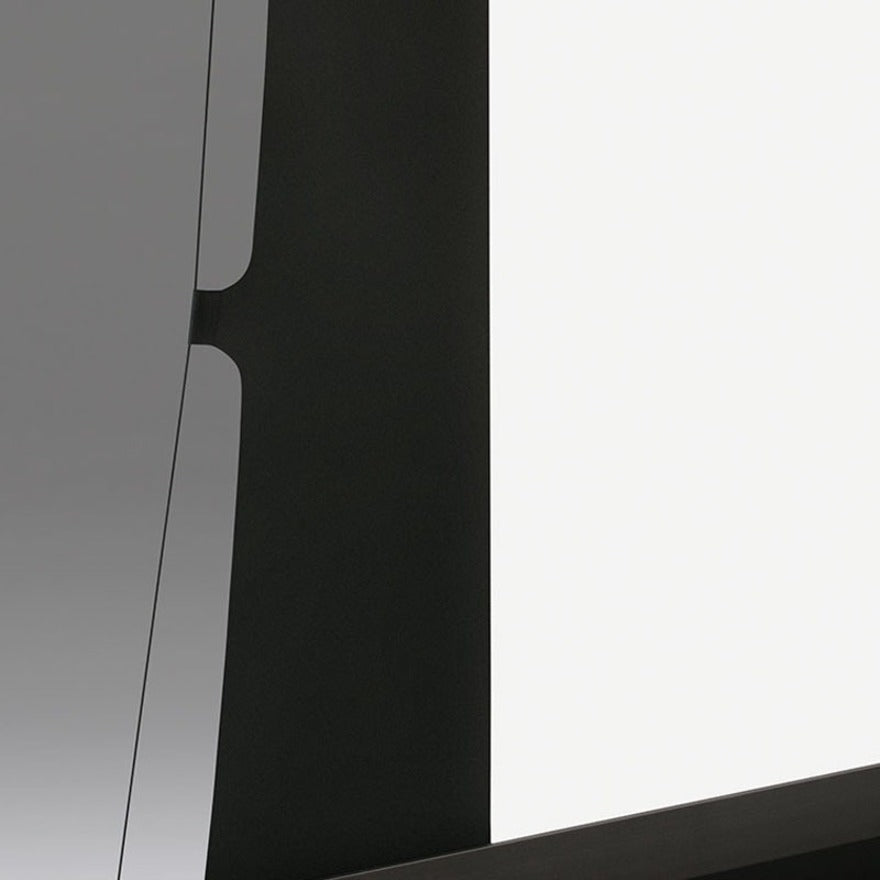

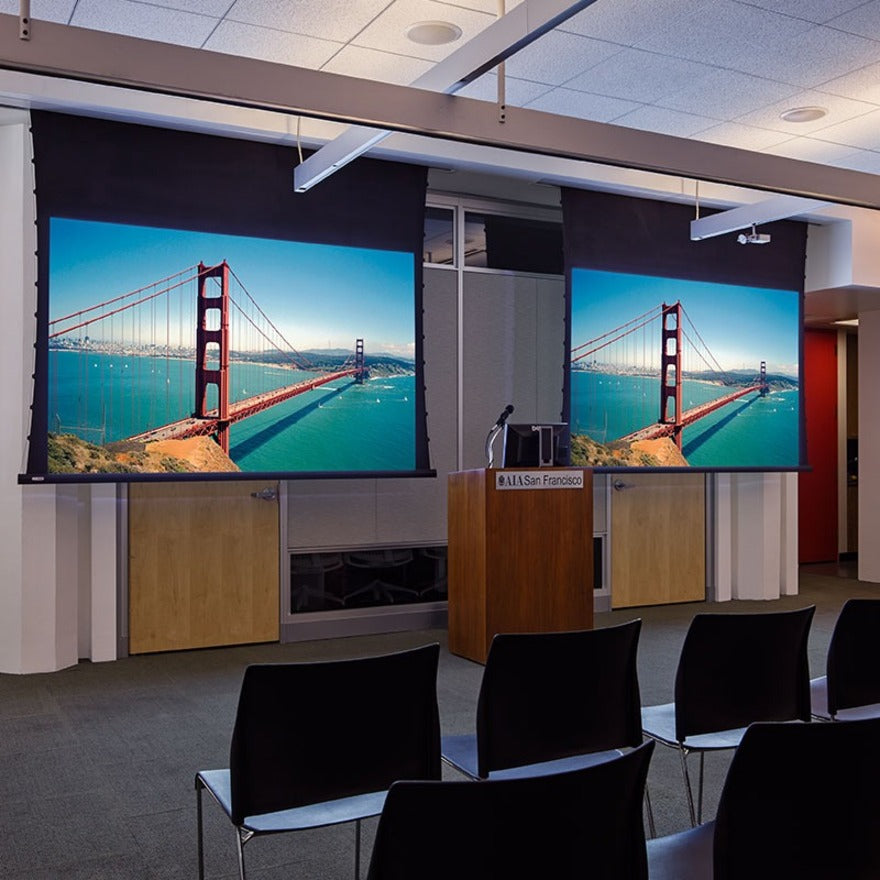

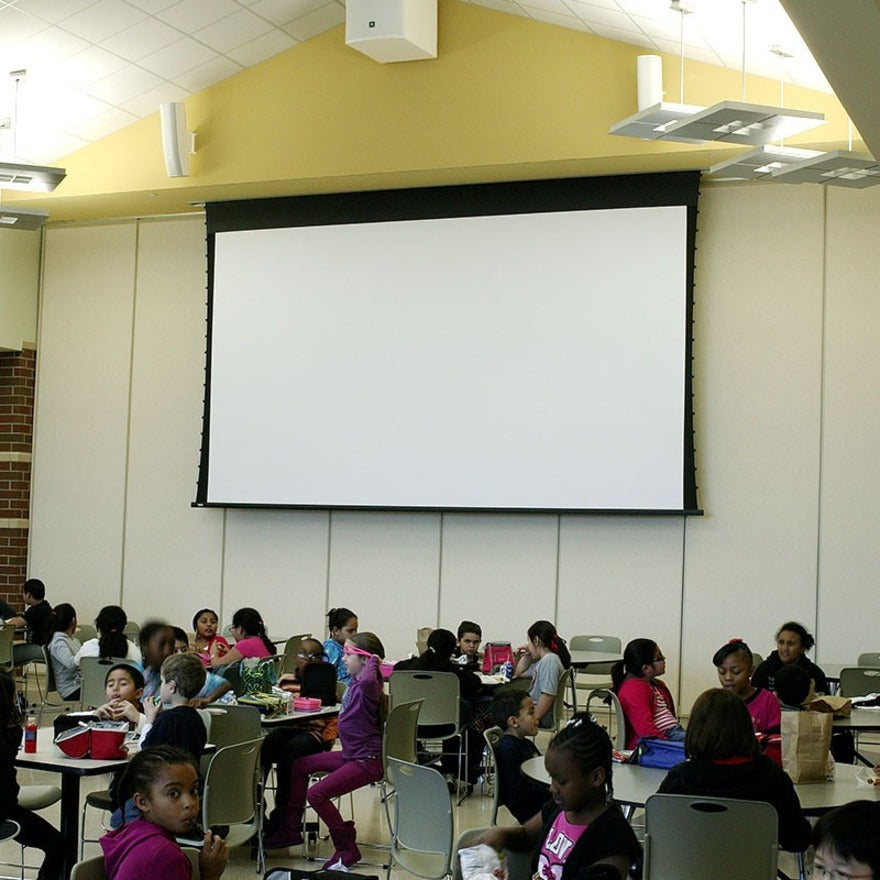

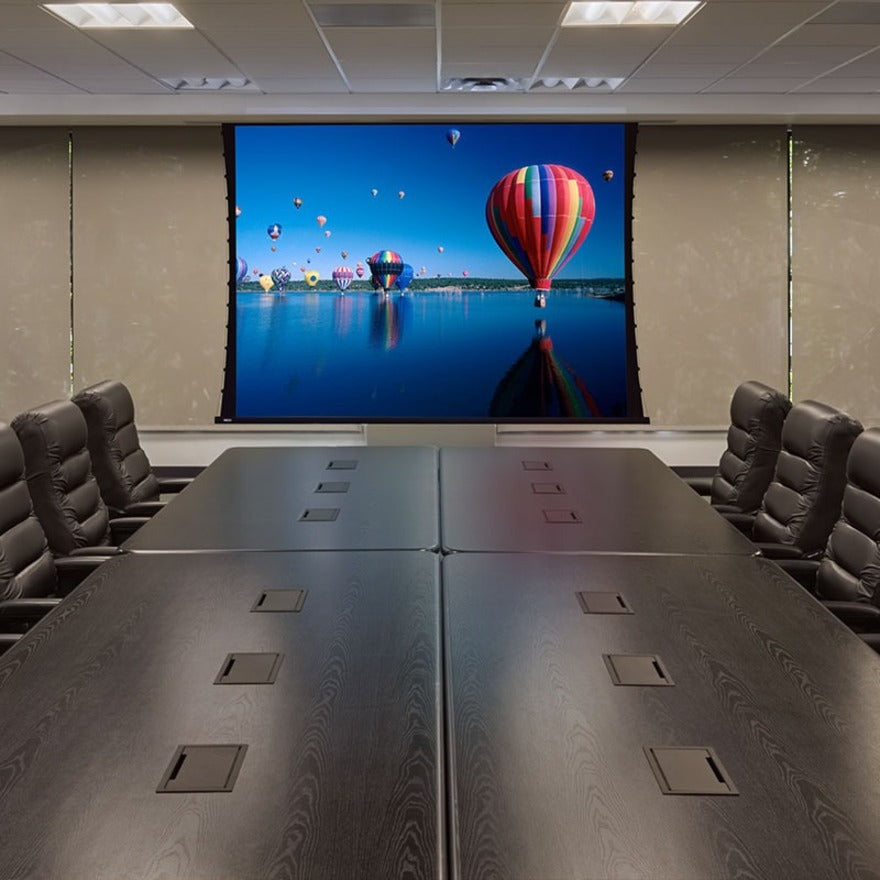

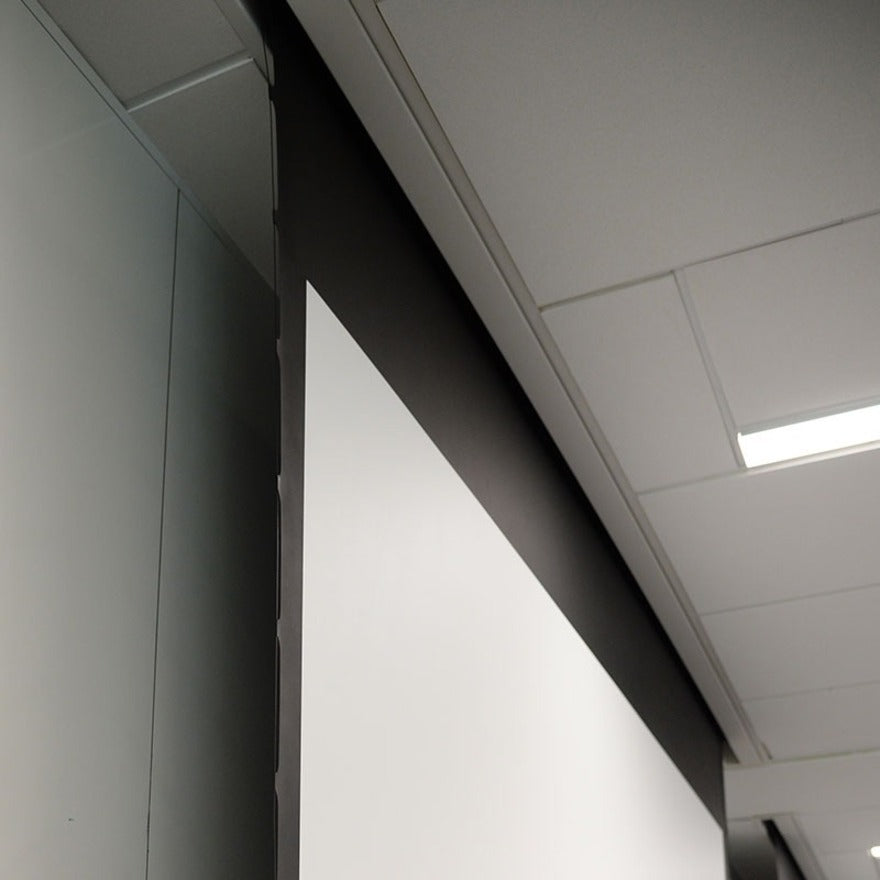

The ceiling-recessed Access V projection screen works well in universities, board rooms, training rooms, or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Tab-tensioned screens offer a perfectly flat viewing surface and RF welded tabs for a more durable seal. The case can be installed during the initial construction phase, allowing the screen to be installed later to eliminate job site damage. Case includes a bottom access panel for easy service and maintenance.

• Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
• Maximum image width up to 16' (488 cm) wide, depending on surface selection.
• The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.
• Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
• Adjustable or removable hoisting brackets included for easy lifting during installation.
• Sliding brackets on top of the case allow for adjustments for mounting.
• Sliding brackets inside case accommodate different size screens.
• Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
• Quick-connect wiring allows for early installation of the case with the addition of the screen later.
• Low voltage, video interface or other controls can be built into housing for below ceiling access.
