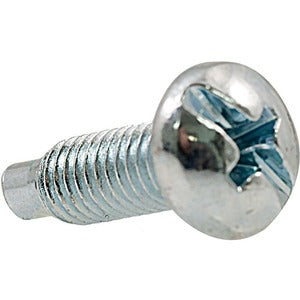

Rack Solutions 10-32 x 1/2in Pan Head Phillip Drive Pilot Point Screw 25-Pack
Rack screws are used to attach equipment to the vertical uprights of a 19" rack. Racks do not have a standard thread type. There are three common thread types for rack screws: 10-32, 12-24 and M6. Since the introduction of the square hole rack and Cage Nuts, the exact thread can be selected and changed at will. 10-32 threads are historically the original rack screw type. The term 10-32 comes from Unified and American Screw Threads for Bolts, Nuts, and Machine Screws standards published by ANSI B1.1-1974. The number "10" is simply a size designator corresponding to the nominal diameter of the bolt. The number "32" refers to 32 threads per inch. You can identify a 10-32 screw by measuring the diameter with a ruler at exactly 3/16" (0.190").
- Pair with cage nuts for square hole racks
- 10-32 Pilot Point Screws
- Attach equipment in vertical uprights
Call for Availability
Shipping calculated at checkout
Rack screws are used to attach equipment to the vertical uprights of a 19" rack. Racks do not have a standard thread type. There are three common thread types for rack screws: 10-32, 12-24 and M6. Since the introduction of the square hole rack and Cage Nuts, the exact thread can be selected and changed at will. 10-32 threads are historically the original rack screw type. The term 10-32 comes from Unified and American Screw Threads for Bolts, Nuts, and Machine Screws standards published by ANSI B1.1-1974. The number "10" is simply a size designator corresponding to the nominal diameter of the bolt. The number "32" refers to 32 threads per inch. You can identify a 10-32 screw by measuring the diameter with a ruler at exactly 3/16" (0.190").
- Pair with cage nuts for square hole racks
- 10-32 Pilot Point Screws
- Attach equipment in vertical uprights
