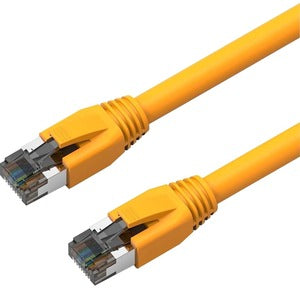

Axiom 10FT CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Yellow)

SKU: C8SBSFTP-Y10-AX

Axiom's CAT8 Ethernet Cables are the first future proof, cost effective, high performance solution capable to reach up to 40Gbps transfer speeds and up to 2GHz of bandwidth. They are made of (4) twisted pure copper wire pairs and each pair is foil-shielded and also the 4 pairs have an overall braided shield. This double shielding structure provides a maximum EMI protection. The snagless boot protects the locking tabs on the RJ45 connectors from being damaged. Our Category 8 shielded cables are offered in a variety of lengths from 6 inch to 50 feet and are available in 9 different colors

  • Conductor: 4-pair S/FTP stranded copper (6-inch to 7ft use 24AWG wire and 10ft to 50ft use 26AWG wire)
  • Shielding: Each pair Foil shielded / 4 Pair Braid Shield
  • Connector: 8P8C RJ45 50 micron gold-plated contacts two-piece with nickel plated shielding
  • Provides EMI/RFI shielding in Ethernet networks
  • Wiring: T568B standard
  • Jacket: PVC
  • Standard: Category 8 Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
  • Snagless Rubber Boots with Strain Relief
  • Max Bandwidth: Up to 2,000 MHz (2GHz)
  • Max data rate: Up to 40Gps
  • Min Avg. jacket Thickness: 0.60 +/- 0.1mm
  • Backward Compatible with all categories Cat5E, Cat6, Cat6A, Cat7 Networks
  • Available in all lengths from 6-Inch to 50ft
  • Colors: K= Black, B= Blue, G=Gray, N=Green, O=Orange, P= Purple, R= Red, W=White, Y= Yellow
    • Experience a simpler way to connect devices with the entire business network
    • Features Category 8 cable type for optimal performance and better dependability
    • Fully compatible with network devices

    Call for Availability

    Regular price $34

    Shipping calculated at checkout

    Details

    Axiom's CAT8 Ethernet Cables are the first future proof, cost effective, high performance solution capable to reach up to 40Gbps transfer speeds and up to 2GHz of bandwidth. They are made of (4) twisted pure copper wire pairs and each pair is foil-shielded and also the 4 pairs have an overall braided shield. This double shielding structure provides a maximum EMI protection. The snagless boot protects the locking tabs on the RJ45 connectors from being damaged. Our Category 8 shielded cables are offered in a variety of lengths from 6 inch to 50 feet and are available in 9 different colors

  • Conductor: 4-pair S/FTP stranded copper (6-inch to 7ft use 24AWG wire and 10ft to 50ft use 26AWG wire)
  • Shielding: Each pair Foil shielded / 4 Pair Braid Shield
  • Connector: 8P8C RJ45 50 micron gold-plated contacts two-piece with nickel plated shielding
  • Provides EMI/RFI shielding in Ethernet networks
  • Wiring: T568B standard
  • Jacket: PVC
  • Standard: Category 8 Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
  • Snagless Rubber Boots with Strain Relief
  • Max Bandwidth: Up to 2,000 MHz (2GHz)
  • Max data rate: Up to 40Gps
  • Min Avg. jacket Thickness: 0.60 +/- 0.1mm
  • Backward Compatible with all categories Cat5E, Cat6, Cat6A, Cat7 Networks
  • Available in all lengths from 6-Inch to 50ft
  • Colors: K= Black, B= Blue, G=Gray, N=Green, O=Orange, P= Purple, R= Red, W=White, Y= Yellow
    • Experience a simpler way to connect devices with the entire business network
    • Features Category 8 cable type for optimal performance and better dependability
    • Fully compatible with network devices
    Specifications
    Boot Type:
    Snagless
    Cable Characteristic:
    Patch Cable
    Cable Length:
    10 ft
    Cable Type:
    Category 8
    Connector Material:
    Polyvinyl Chloride (PVC)
    Connector on First End Details:
    RJ-45 Network - Male
    Connector on Second End Details:
    RJ-45 Network - Male
    Connector Type on First End:
    RJ-45 Network - Male
    Connector Type on Second End:
    RJ-45 Network - Male
    Contact Plating:
    Gold,Nickel
    Data Transfer Rate:
    40 Gbit/s
    Device Supported:
    Network Device
    Environmentally Friendly:
    Yes
    Features:
    Double Shielded,Strain Relief,EMI/RF Protection
    Manufacturer:
    Axiom Memory Solutions
    Manufacturer Website Address:
    http://www.axiommemory.com
    Product Color:
    Yellow
    Product Material:
    Copper
    Product Type:
    Network Cable
    Shielding:
    Yes
    Shielding Material:
    Foil
