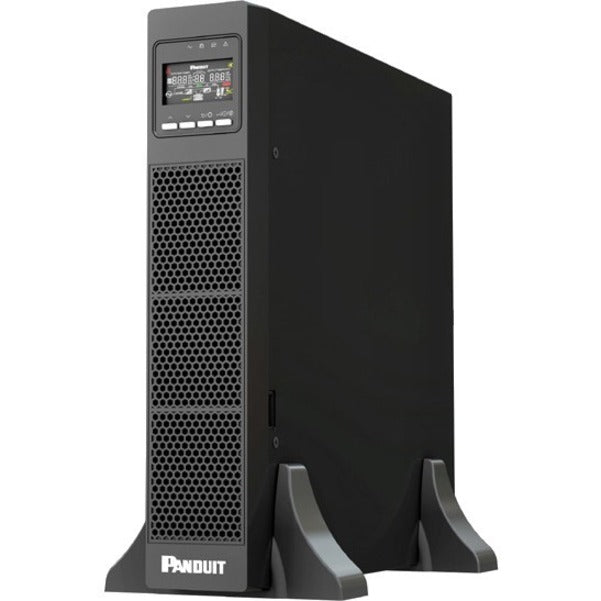

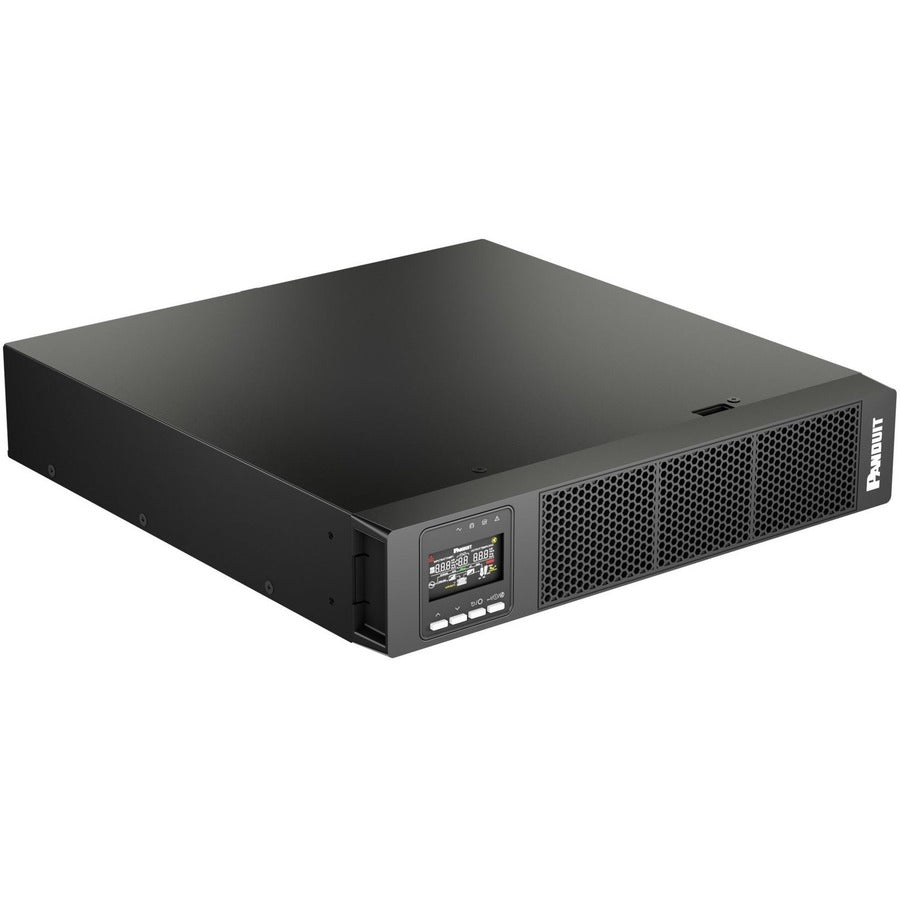

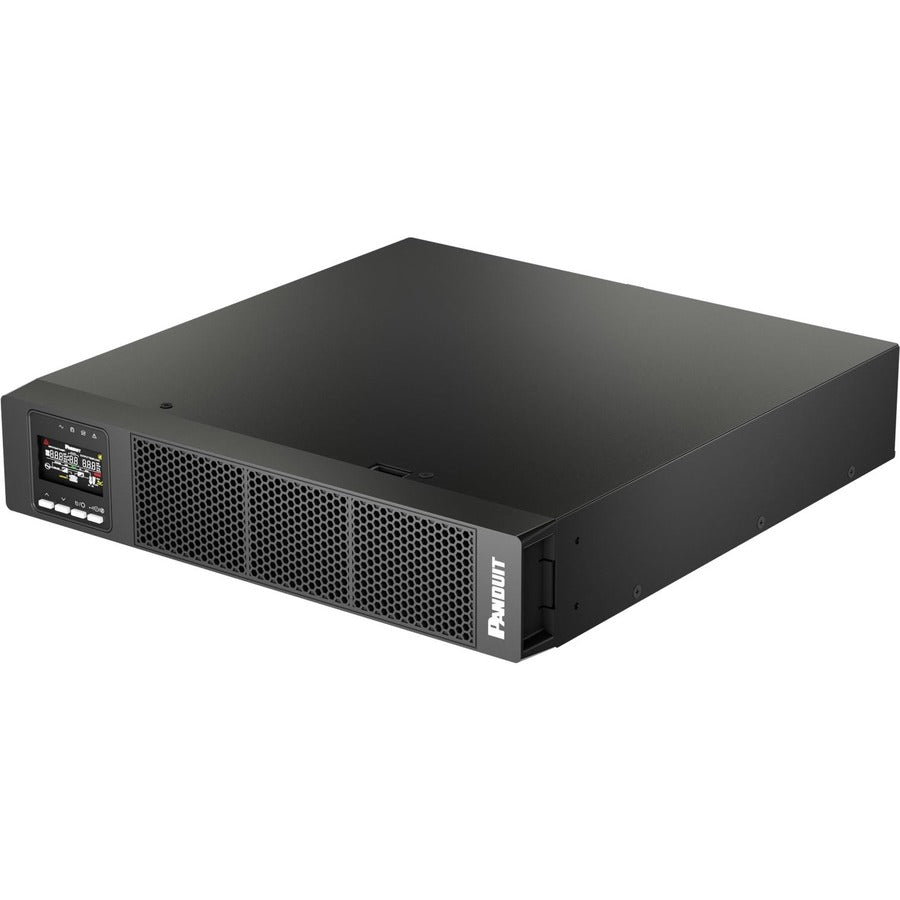

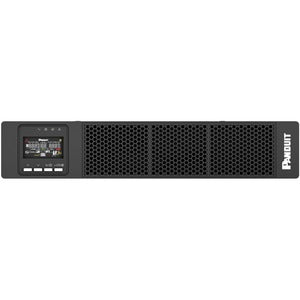

Panduit SmartZone U03N11L 3000VA Rack/Tower/Compact UPS
SKU: U03N11L
The Panduit ® SmartZone™ Intelligent Rack UPS with compact, high capacity, and long life Lithium Ion battery, 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double Conversion system that delivers highly efficient and reliable power protection and backup power for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions and complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
- Rack/Tower convertible: Support rack/tower installation with rotatable colorful LCD display
- Online Double Conversion with fully digital control (EMEA unit only): Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: (110-300Vac Online models) (75-146Vac Line Interactive models), covering more voltage range, applicable for severe situation such as large power grid fluctuation
- High efficiency: Up to 96.5% for Online models and up to 97% for Line-interactive models, reducing the energy waste and the cost of electricity
- Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
- Green design: RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
- Output unity power factor: Means more active power for IT equipment load
- Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
- Intelligent Battery Management: The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
- EPO function (Emergency Power Off): Allows to quickly and easy shut down the UPS when emergency event occurs
Call for Availability
Regular price
$3,918.66
Shipping calculated at checkout
The Panduit ® SmartZone™ Intelligent Rack UPS with compact, high capacity, and long life Lithium Ion battery, 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double Conversion system that delivers highly efficient and reliable power protection and backup power for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions and complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
- Rack/Tower convertible: Support rack/tower installation with rotatable colorful LCD display
- Online Double Conversion with fully digital control (EMEA unit only): Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: (110-300Vac Online models) (75-146Vac Line Interactive models), covering more voltage range, applicable for severe situation such as large power grid fluctuation
- High efficiency: Up to 96.5% for Online models and up to 97% for Line-interactive models, reducing the energy waste and the cost of electricity
- Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
- Green design: RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
- Output unity power factor: Means more active power for IT equipment load
- Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
- Intelligent Battery Management: The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
- EPO function (Emergency Power Off): Allows to quickly and easy shut down the UPS when emergency event occurs
Additional Warranty Information:
5 Years (UPS & Battery)
Alarm:
Yes
Application/Usage:
Data Center,IT Equipment,Enterprise,Computer,Edge Computing
AVR:
Yes
Backup/Run Time With External Battery Cabinet (Full Load):
9 Minute
Backup/Run Time With External Battery Cabinet (Half Load):
22 Minute
Battery Chemistry:
Lithium-Ion (LiFePO4)
Battery Life:
10 Year
Dataline Protection:
RJ-45
DC System Voltage:
76.8 V DC
Energy Efficiency Certification:
ENERGY STAR 2.0
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
EPO Port:
Yes
Form Factor:
Rack/Tower/Compact,Rail Mountable
Hot Swappable:
Yes
Input Frequency:
60 Hz
Input Voltage:
120 V AC
Input Voltage Range:
75 V AC - 146 V AC
Limited Warranty:
5 Year
Load Capacity (VA):
3000 VA
Load Capacity (Watt):
2700 W
Manufacturer:
PANDUIT CORP
Manufacturer Website Address:
http://www.panduit.com
Maximum Operating Elevation:
9842.52 ft
Maximum Operating Temperature:
104°F (40°C)
Network (RJ-45):
Yes
Output Frequency:
60 Hz
Output Voltage:
100 V AC,110 V AC,115 V AC,120 V AC,125 V AC
Overload Protection:
Yes
Package Contents:
- SmartZone U03N11L 3000VA Rack/Tower/Compact UPS
- Intelligent Network Management Card
Phase:
Single Phase
Plug/Connector Type:
NEMA L5-30P
Product Color:
Black
Product Line:
SmartZone
Product Model:
U03N11L
Product Type:
Line-interactive UPS
Rack Height:
2U

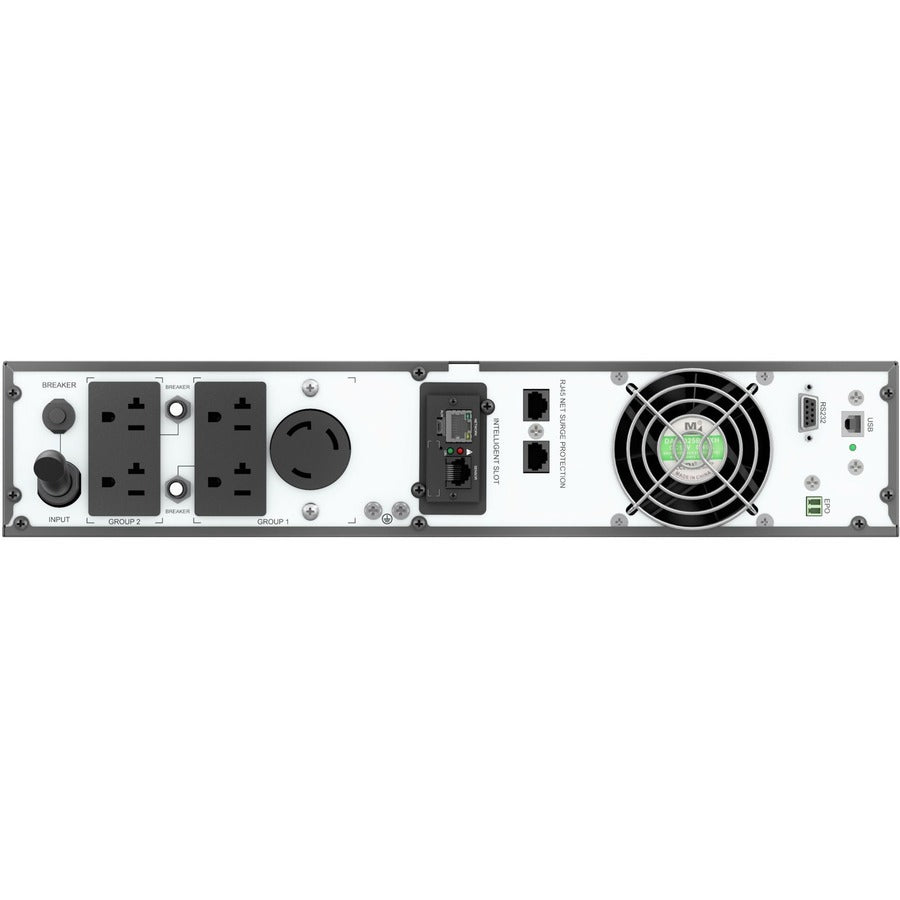

Receptacle Detail:
1 x NEMA L5-30R,2 x NEMA 5-20R
Receptacle Type:
NEMA L5-30R,NEMA 5-20R
Replaceable Battery:
Yes
Serial Port:
Yes
Software Included:
SmartZone Cloud Ready
Sound Emission:
55 dB
Status Indicators:
Colorful LCD with four buttons and LED indicators
Storage Temperature:
-13°F (-25°C) - 131°F (55°C)
Thermal Dissipation:
97.89 W
Transfer Time:
6 ms
Typical Battery Recharge Time:
4 Hour
USB (HID Compliant) Port:
Yes
Waveform Type:
Pure Sine Wave
