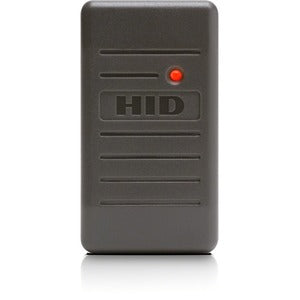

HID ProxPoint Plus 6005 Card Reader Access Device
SKU: 6005BGB00
VALUE PRICED PROXIMITY CARD READER
HID's ProxPoint® Plus reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications.
HID's ProxPoint® Plus reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications.
- Features a beeper and multicolor LED which can be host-and/or locally controlled.
- Enables various beeper and LED configurations, depending on individual site requirements.
- Can read HID cards with formats up to 85 bits.
- Designed for mounting directly onto metal with no change in read range performance.
- Available with either Wiegand or Clock-and-Data (magnetic stripe data) output.
- Compatible with all standard access control systems.
- Aesthetic design available in two cover designs and in four colors to match any decor.
- Includes multilingual installation manual.
- Options - Custom label and custom embossing in housing
- Easily Interfaced - Wiegand output model interfaces with all existing Wiegand protocol access control systems. Clock-andData (magnetic stripe) model interfaces with most systems that accept magnetic stripe readers.
- Indoor/outdoor Design - Sealed in a rugged, weatherized polycarbonate enclosure designed to withstand harsh environments, providing reliable performance and a high degree of vandal resistance.
- Diagnostics - On reader power-up, an internal self-test routine checks and verifies the setup configuration, determines the internal or external control of the LED and beeper, and initializes reader operation. An additional external loop-back test allows for the reader outputs and inputs to be verified without the use of additional test equipment.
- Audiovisual Indication - When a proximity card is presented to the reader, the red LED flashes green and the beeper sounds. The multicolor LED and beeper can also be controlled individually by the host system.
- Security - Recognizes card formats up to 85 bits, with over 137 billion unique codes.
Call for Availability
Regular price
$289.69
Shipping calculated at checkout
VALUE PRICED PROXIMITY CARD READER
HID's ProxPoint® Plus reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications.
HID's ProxPoint® Plus reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications.
- Features a beeper and multicolor LED which can be host-and/or locally controlled.
- Enables various beeper and LED configurations, depending on individual site requirements.
- Can read HID cards with formats up to 85 bits.
- Designed for mounting directly onto metal with no change in read range performance.
- Available with either Wiegand or Clock-and-Data (magnetic stripe data) output.
- Compatible with all standard access control systems.
- Aesthetic design available in two cover designs and in four colors to match any decor.
- Includes multilingual installation manual.
- Options - Custom label and custom embossing in housing
- Easily Interfaced - Wiegand output model interfaces with all existing Wiegand protocol access control systems. Clock-andData (magnetic stripe) model interfaces with most systems that accept magnetic stripe readers.
- Indoor/outdoor Design - Sealed in a rugged, weatherized polycarbonate enclosure designed to withstand harsh environments, providing reliable performance and a high degree of vandal resistance.
- Diagnostics - On reader power-up, an internal self-test routine checks and verifies the setup configuration, determines the internal or external control of the LED and beeper, and initializes reader operation. An additional external loop-back test allows for the reader outputs and inputs to be verified without the use of additional test equipment.
- Audiovisual Indication - When a proximity card is presented to the reader, the red LED flashes green and the beeper sounds. The multicolor LED and beeper can also be controlled individually by the host system.
- Security - Recognizes card formats up to 85 bits, with over 137 billion unique codes.
Connectivity Technology:
Cable
Country of Origin:
China
Environmentally Friendly:
Yes
Form Factor:
Mullion Mount
Host Interface:
Wiegand
Limited Warranty:
Lifetime
Manufacturer:
HID Global Corporation
Manufacturer Website Address:
http://www.hidglobal.com
Maximum Operating Range:
3"
Media Supported:
Contactless
Package Contents:
- ProxPoint Plus Reader
- Multilingual Installation Manual
Product Color:
Gray
Product Line:
ProxPoint Plus
Product Model:
6005B
Product Type:
Smart Card Reader
