Draper Ultimate Access V 165" Electric Projection Screen

Complete concealment and smooth clean design makes the ceiling-recessed Ultimate Access V ideal for boardrooms, mid-sized training rooms, universities, or home theaters. Screen completely retracts and conceals behind a smooth, lower panel with no exposed screw heads or fasteners. During use, a second motor opens the lower panel upward into the case to allow the screen to descend into the room. RF welded tabs create a more durable seal eliminating separation and stickiness for a perfectly flat viewing surface with better image quality. Placement of the ceiling-recessed case during the initial phase of construction eliminates job site damage and allows for installation of the screen at a later time.

• Low voltage, video interface or other controls can be built into housing for below ceiling access.
• Includes a 110V three-position switch (standard). Quiet, low voltage motors and 220V options are available.
• Quick-connect wiring allows for early installation of the case with the addition of the screen later.
• Independently motorized ceiling closure opens into the case.

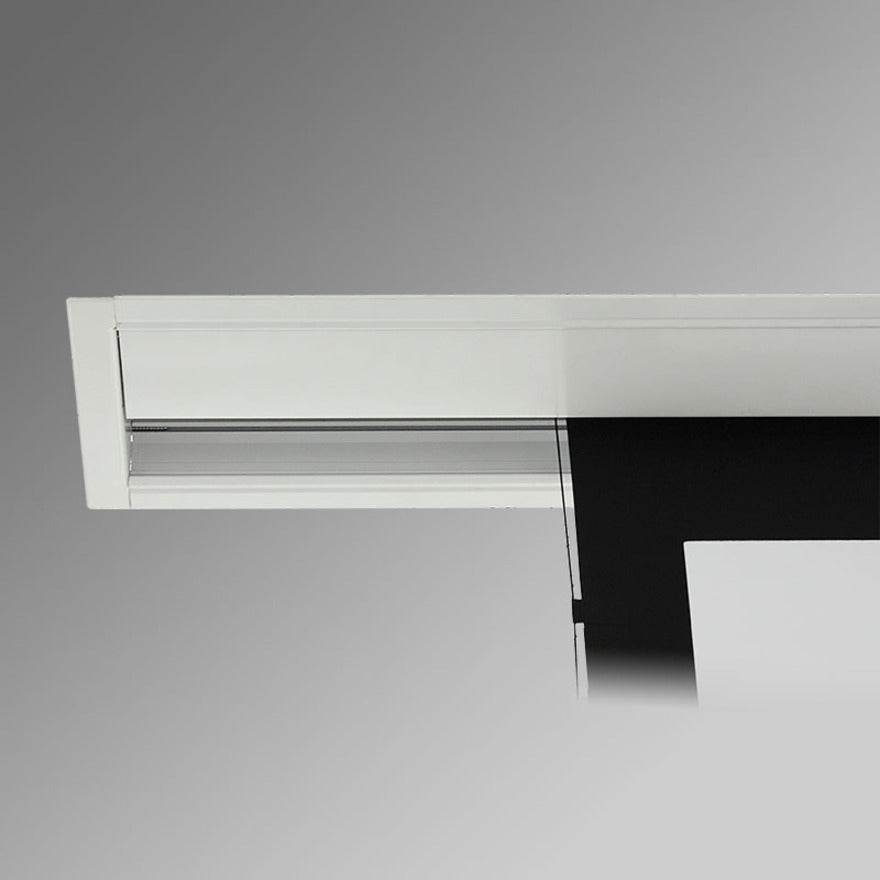

• Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling.
• Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
• Sliding brackets inside case accommodate different size screens.
• Sliding brackets on top of the case allow for adjustments for mounting.
• Adjustable or removable hoisting brackets included for easy lifting during installation.

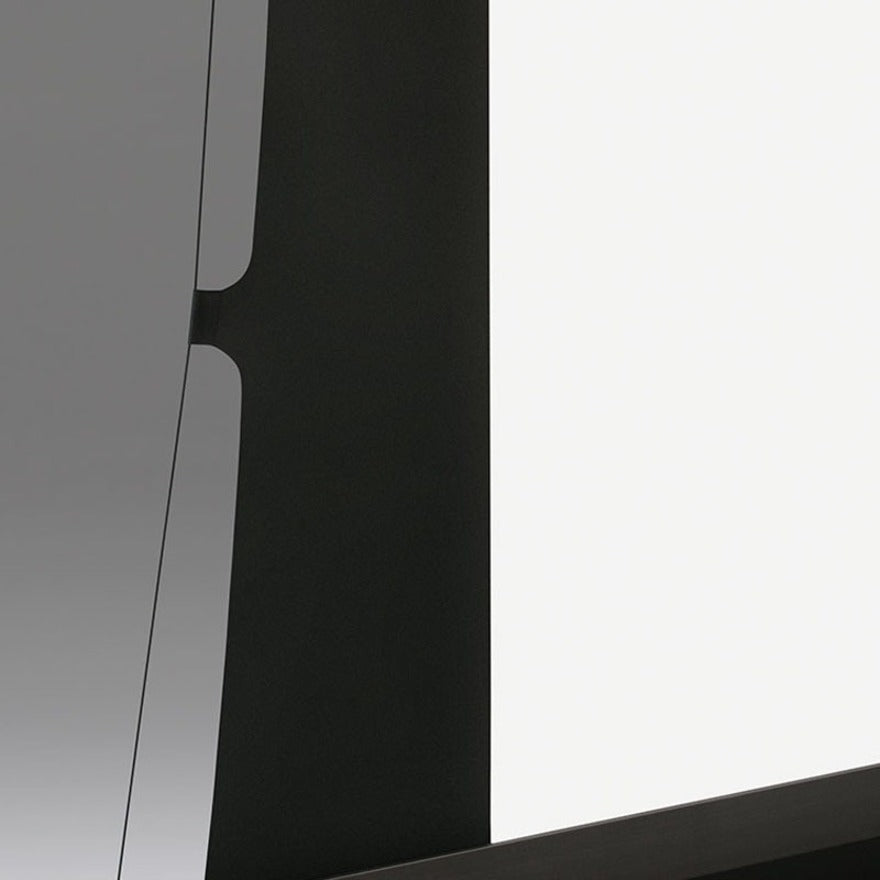

• Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
• Maximum image width up to 12' (366 cm) wide, depending on surface selection.

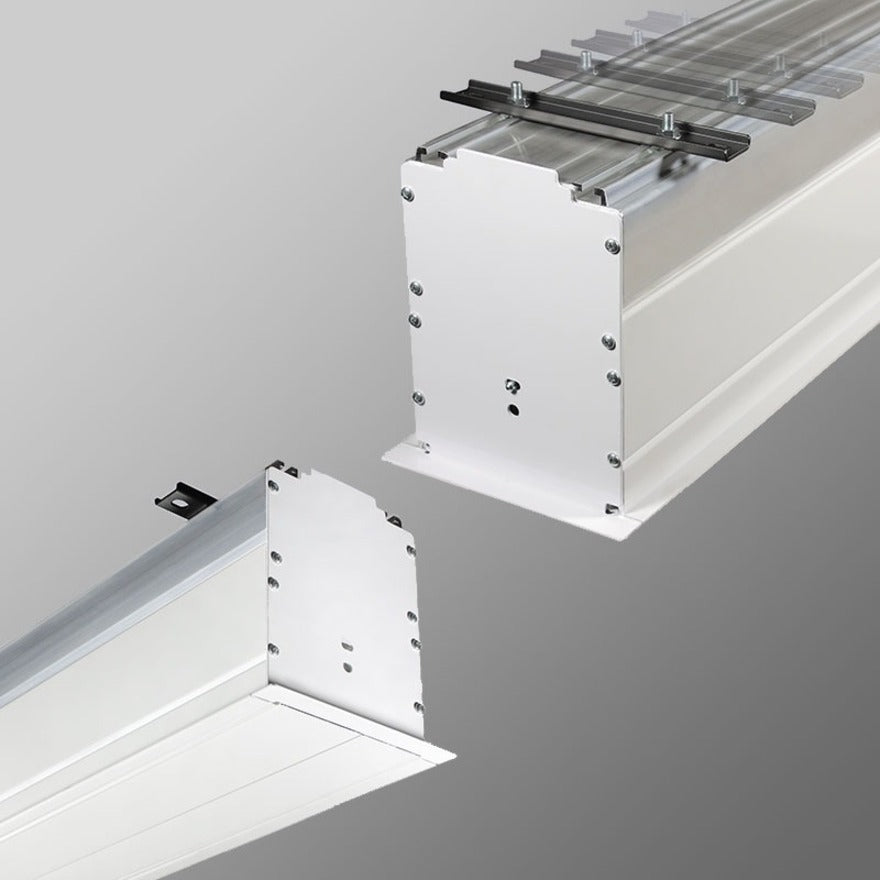

• Case dimensions are 9-7/8" high x 8" deep (25 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
