ARCHIVED NSI ezEX48 Network Connector
SKU: 105025

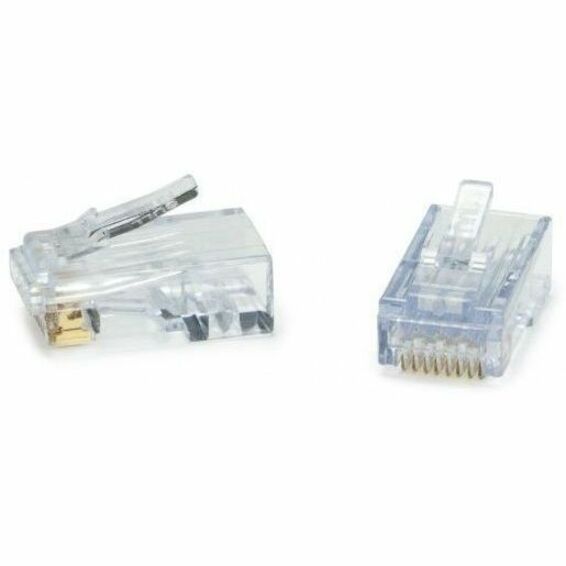

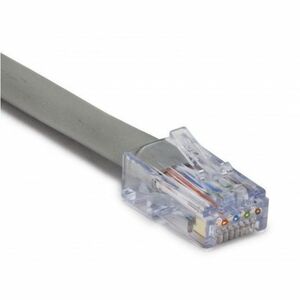

ezEX-RJ45(48) Pass-Through RJ45 Connectors, CAT6A Unshielded - 500pcs in Bulk Bag
- ezEX-RJ45 (ezEX48 series) pass-through RJ45 connectors
- ezEX48 connectors are designed for cables with 0.043" - 0.048" (1.09 - 1.22mm) insulation diameter
- Unshielded
- Package includes 500 pieces
- Bulk bag packaging
- 0.305" (7.75mm) max cable outer diameter
- 0.043" - 0.048" (1.09 - 1.22mm) max cable outer diameter
- Compatible with solid or stranded 23 - 22AWG twisted pair cable
- 50 micron gold plated contacts
- Hi-Lo stagger to isolate each conductor
- Simple one piece/pass through design does not require bars or liners
- Compatible with CAT5E and CAT6 cables
- TAA, TIA, RoHS, UL & FCC compliant
- US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
- Rated for data and PoE applications
- Recommended crimp tools: 100061 or 12520
- Terminate fascicle of network cables with this connector
- Contact mating area is Gold plated for longer durability
Call for Availability
Regular price
$489.38
Shipping calculated at checkout
ezEX-RJ45(48) Pass-Through RJ45 Connectors, CAT6A Unshielded - 500pcs in Bulk Bag
- ezEX-RJ45 (ezEX48 series) pass-through RJ45 connectors
- ezEX48 connectors are designed for cables with 0.043" - 0.048" (1.09 - 1.22mm) insulation diameter
- Unshielded
- Package includes 500 pieces
- Bulk bag packaging
- 0.305" (7.75mm) max cable outer diameter
- 0.043" - 0.048" (1.09 - 1.22mm) max cable outer diameter
- Compatible with solid or stranded 23 - 22AWG twisted pair cable
- 50 micron gold plated contacts
- Hi-Lo stagger to isolate each conductor

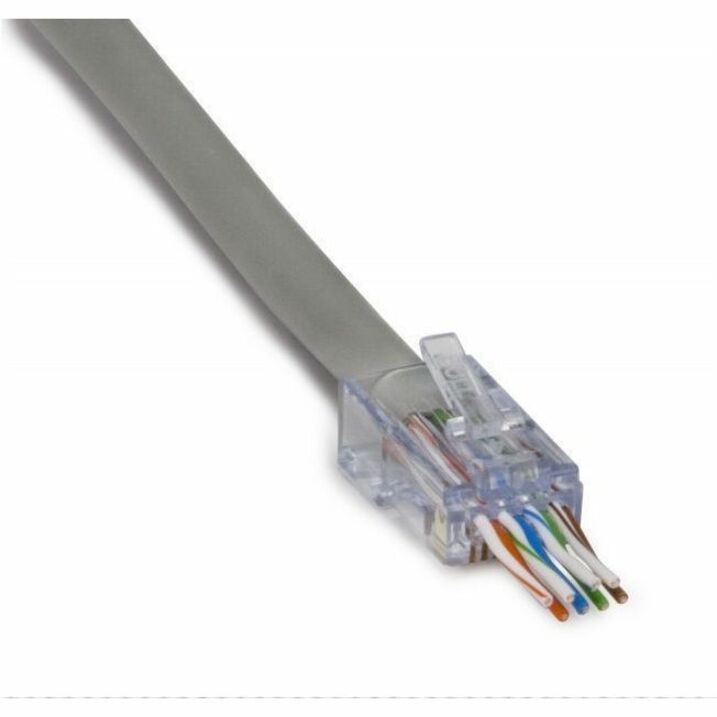

- Simple one piece/pass through design does not require bars or liners
- Compatible with CAT5E and CAT6 cables
- TAA, TIA, RoHS, UL & FCC compliant
- US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
- Rated for data and PoE applications
- Recommended crimp tools: 100061 or 12520
- Terminate fascicle of network cables with this connector
- Contact mating area is Gold plated for longer durability
Color Family:
Clear
Compatible Wire Gauge:
23-22 AWG
Connector Details:
1 x RJ-45 Network - Male
Connector Gender:
Male
Connector Type:
RJ-45 Network
Contact Plating:
Gold
Country of Origin:
United States
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Features:
Pass-thru,PoE,Crimp Connector
Manufacturer:
NSI Industries
Manufacturer Website Address:
https:/siindustries.com/
Packaged Quantity:
500 / Bag
Package Type:
Bulk
Product Color:
Clear
Product Line:
ezEX48
Product Type:
Network Connector
Shielding:
No
TAA Compliant:
Yes
