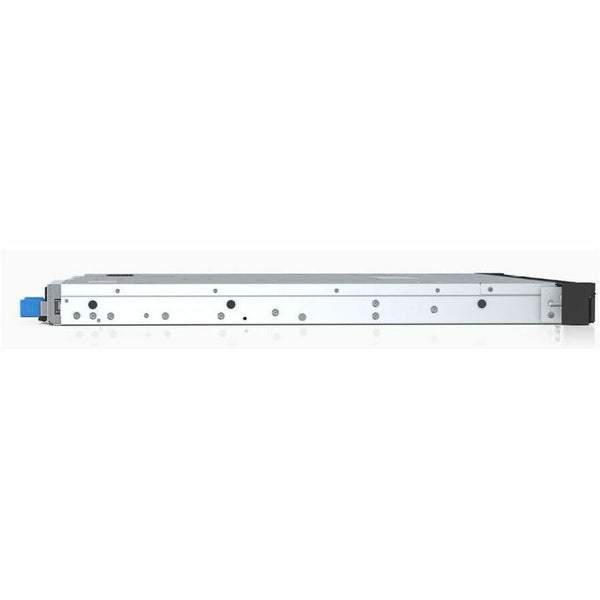

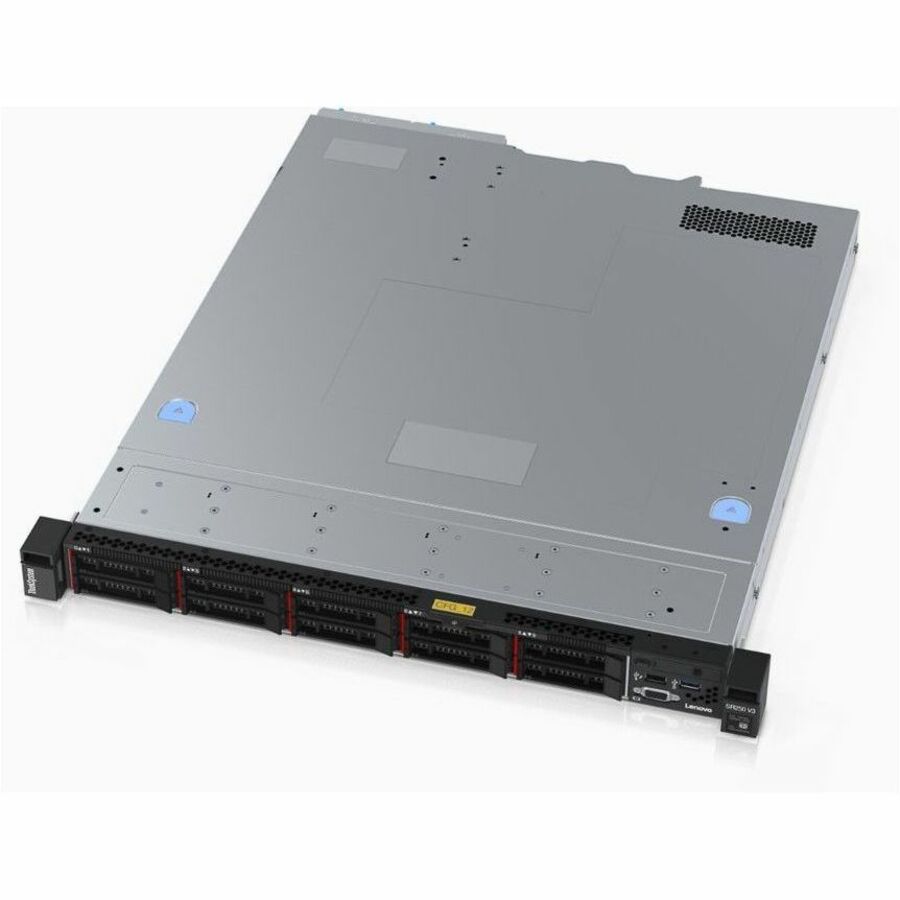

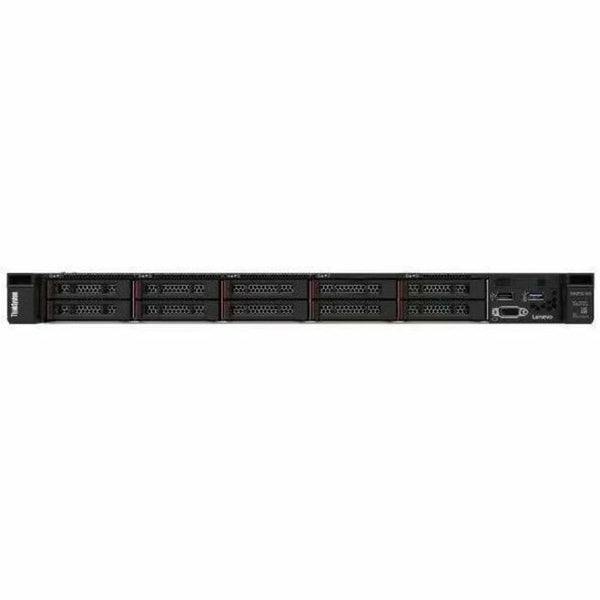

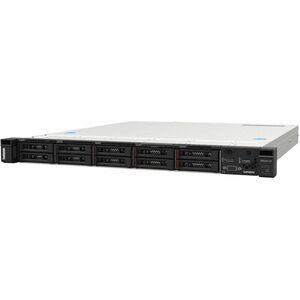

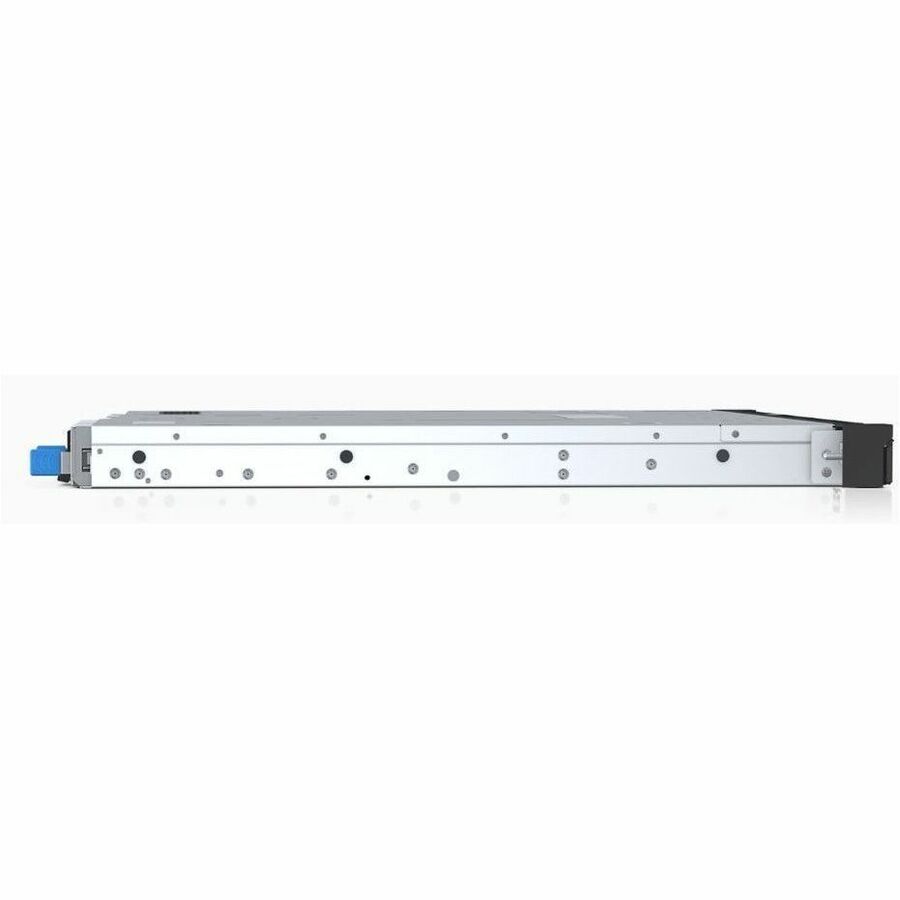

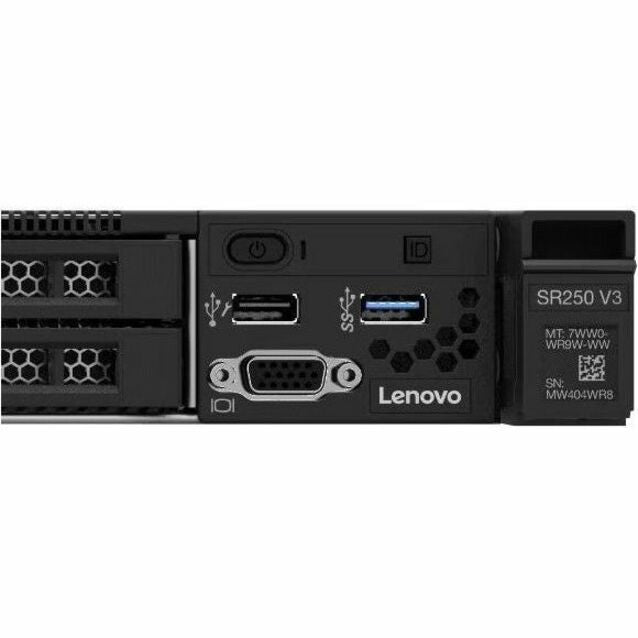

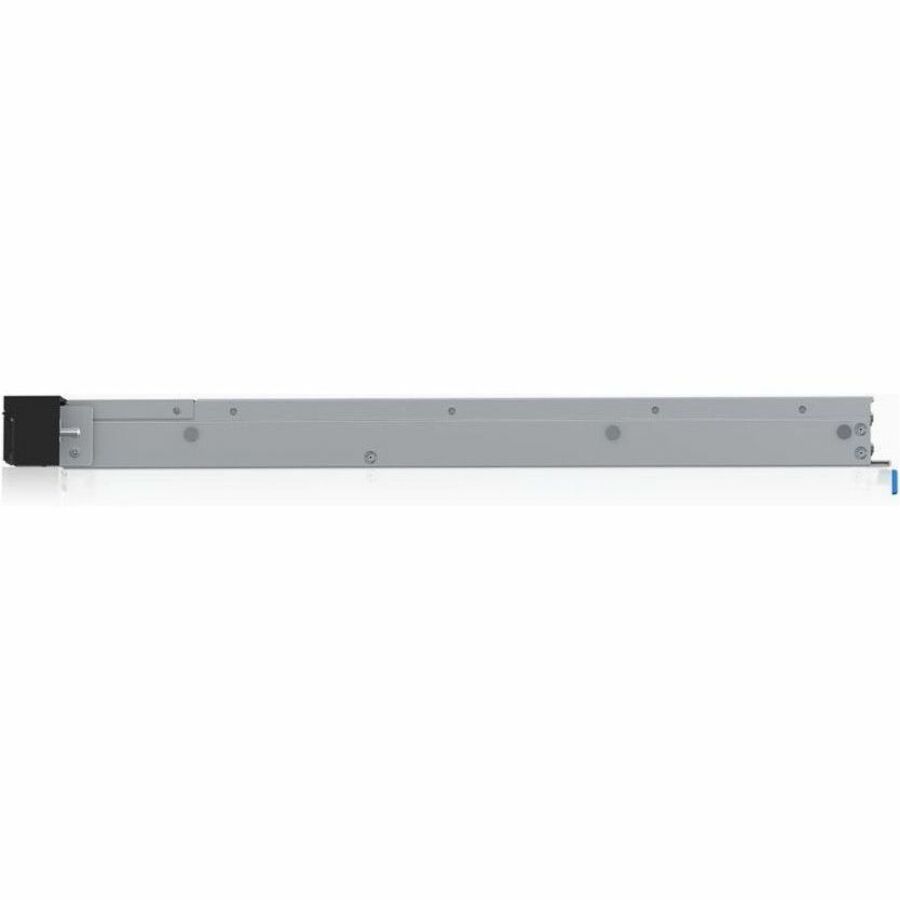

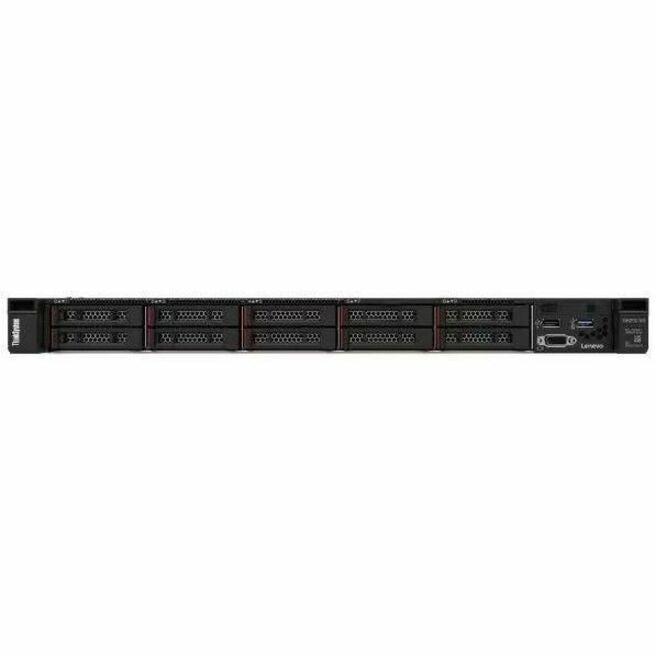

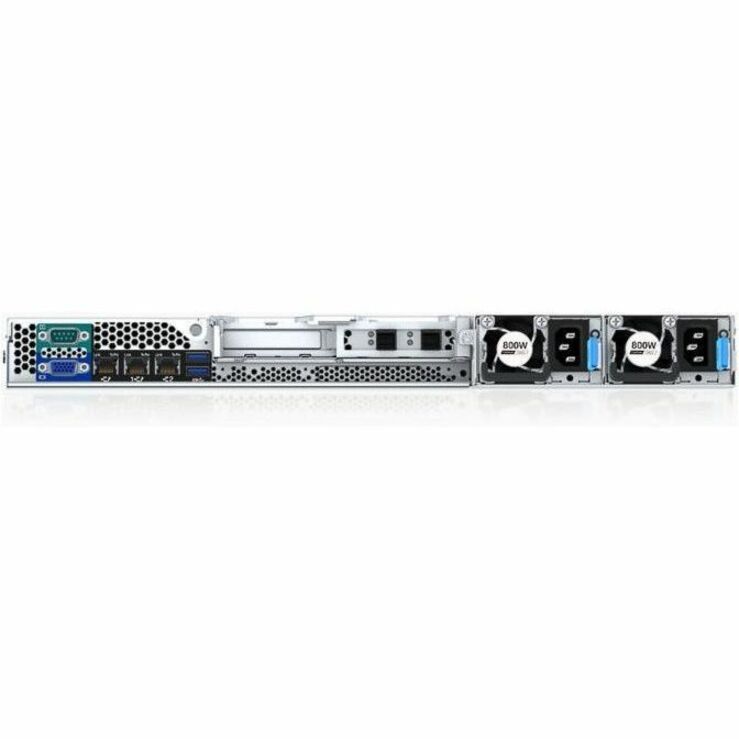

Lenovo ThinkSystem SR250 V3 7DCLA01XNA 1U Rack Server - 1 Xeon E-2456 3.30 GHz - 16 GB RAM - Serial ATA Controller

SKU: 7DCLA01XNA

The Lenovo ThinkSystem SR250 V3 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports one Intel Xeon E-2400 Series processor (formerly codenamed "Raptor Lake-E (RPL-E)") or Intel Pentium ("Alder Lake (ADL)") and up to 128 GB of 4800 MHz TruDDR5 ECC memory.

Flexible and scalable internal storage configurations include up to ten 2.5-inch or four 3.5-inch drives with affordable software RAID or advanced hardware RAID protection and a wide selection of drive sizes and types, including NVMe PCIe SSDs, SATA SSDs, and SAS/SATA HDDs. Also, it features integrated dual-port 1 Gb Ethernet NIC and additional PCIe expansion slots for hardware RAID protection, network scalability, and external storage connectivity.

  • Experience high performance, built-in security and remote management capabilities with Intel Xeon 3.30 GHz processor
  • 3.30 GHz processor speed ensures maximum usability without slowing down or crashing
  • With TruDDR5 memory technology get efficient data transfer rate and enhanced computer's performance
  • Hexa-core (6 Core) processor core helps server process data in a dependable and timely manner with maximum productivity
  • 12 MB cache memory makes data and information immediately available for your convenience to ensure maximum efficiency
  • 1 processors supported for faster, dependable performance and better access to data and information
  • With 16 GB memory, improve system performance to execute complex applications
  • 4 USB ports allows powerful and efficient transfer of data with maximum productivity
  • 2 Network (RJ-45) Ports eliminates the need of installing additional electrical wiring
  • Gigabit Ethernet is very useful when a large number of file transfers are required such as when performing backups over the network

Call for Availability

Regular price $5,035.55

Shipping calculated at checkout

Details

The Lenovo ThinkSystem SR250 V3 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports one Intel Xeon E-2400 Series processor (formerly codenamed "Raptor Lake-E (RPL-E)") or Intel Pentium ("Alder Lake (ADL)") and up to 128 GB of 4800 MHz TruDDR5 ECC memory.

Flexible and scalable internal storage configurations include up to ten 2.5-inch or four 3.5-inch drives with affordable software RAID or advanced hardware RAID protection and a wide selection of drive sizes and types, including NVMe PCIe SSDs, SATA SSDs, and SAS/SATA HDDs. Also, it features integrated dual-port 1 Gb Ethernet NIC and additional PCIe expansion slots for hardware RAID protection, network scalability, and external storage connectivity.

  • Experience high performance, built-in security and remote management capabilities with Intel Xeon 3.30 GHz processor
  • 3.30 GHz processor speed ensures maximum usability without slowing down or crashing
  • With TruDDR5 memory technology get efficient data transfer rate and enhanced computer's performance
  • Hexa-core (6 Core) processor core helps server process data in a dependable and timely manner with maximum productivity
  • 12 MB cache memory makes data and information immediately available for your convenience to ensure maximum efficiency
  • 1 processors supported for faster, dependable performance and better access to data and information
  • With 16 GB memory, improve system performance to execute complex applications
  • 4 USB ports allows powerful and efficient transfer of data with maximum productivity
  • 2 Network (RJ-45) Ports eliminates the need of installing additional electrical wiring
  • Gigabit Ethernet is very useful when a large number of file transfers are required such as when performing backups over the network
Specifications
Additional Warranty Information:

Three-year customer-replaceable unit (CRU) and onsite limited warranty with next business day response.

Cache:
12 MB
Chipset Manufacturer:
Intel
Chipset Model:
C266
Controller Type:
Serial ATA
Energy Efficiency Certification:
China Energy Conservation Program (CECP),ENERGY STAR 4.0
Energy Efficiency Compliance:
Energy-related Products Directive Lot 9 (ErP Lot 9)
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Error Checking:
ECC
Ethernet Technology:
Gigabit Ethernet
Form Factor:
Rack
Graphics Controller Model:
G200
Graphics Memory Capacity:
16 MB
Input Voltage:
120 V AC,230 V AC
Limited Warranty:
3 Year
Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www.lenovo.com/us/en/
Maximum Memory Supported:
128 GB
Maximum Power Supply Wattage:
800 W
Memory Clock Speed:
4.80 GHz
Memory Technology:
TruDDR5
Network (RJ-45):
Yes
Number of Internal 2.5" Bays:
8
Number of Network (RJ-45) Ports:
2
Number of Occupied Memory Slots:
1
Number of Power Supplies Installed:
1
Number of Power Supplies Supported:
2
Number of Processors Installed:
1
Number of Processors Supported:
1
Number of SFF Bays:
8
Number of Total Expansion Bays:
8
Number of USB 2.0 Ports:
1
Operating System Supported:
Windows Server 2022,Red Hat Enterprise Linux 8.8,Red Hat Enterprise Linux 8.9,Red Hat Enterprise Linux 8.10,Red Hat Enterprise Linux 9.2,Red Hat Enterprise Linux 9.3,Red Hat Enterprise Linux 9.4,SUSE Linux Enterprise Server 15 SP5,Ubuntu 22.04 LTS x64
Package Contents:
  • ThinkSystem SR250 V3 7DCLA01XNA Server
  • Documentation flyer
  • Toolless Friction Rail v2
  • 1 x Power Cord
PCI Express Details:
x8 LP, x8 LP, x8 Int
Plug/Connector Type:
C13
Processor Core:
Hexa-core (6 Core)
Processor Model:
E-2456
Processor Speed:
3.30 GHz
Processor Type:
Xeon
Product Line:
ThinkSystem
Product Model:
7DCLA01XNA
Product Series:
SR250 V3
Product Type:
Server
Rack Height:
1U
Remote Management:
Yes
Remote Management Controller:
XClarity Controller (XCC2) Standard
Riser Card:
slot1: PCIe Gen4 x8 in x8 (LP); slot2: PCIe Gen4 x8 in x16 slot (LP)
Security Features:
  • Power-on password
  • Administrator's Password
  • Trusted Platform Module ,supporting TPM 2.0.
Standard Memory:
16 GB
Total Number of Expansion Slots:
3
Total Number of Memory Slots:
4
Total Number of USB Ports:
4
VGA:
Yes
