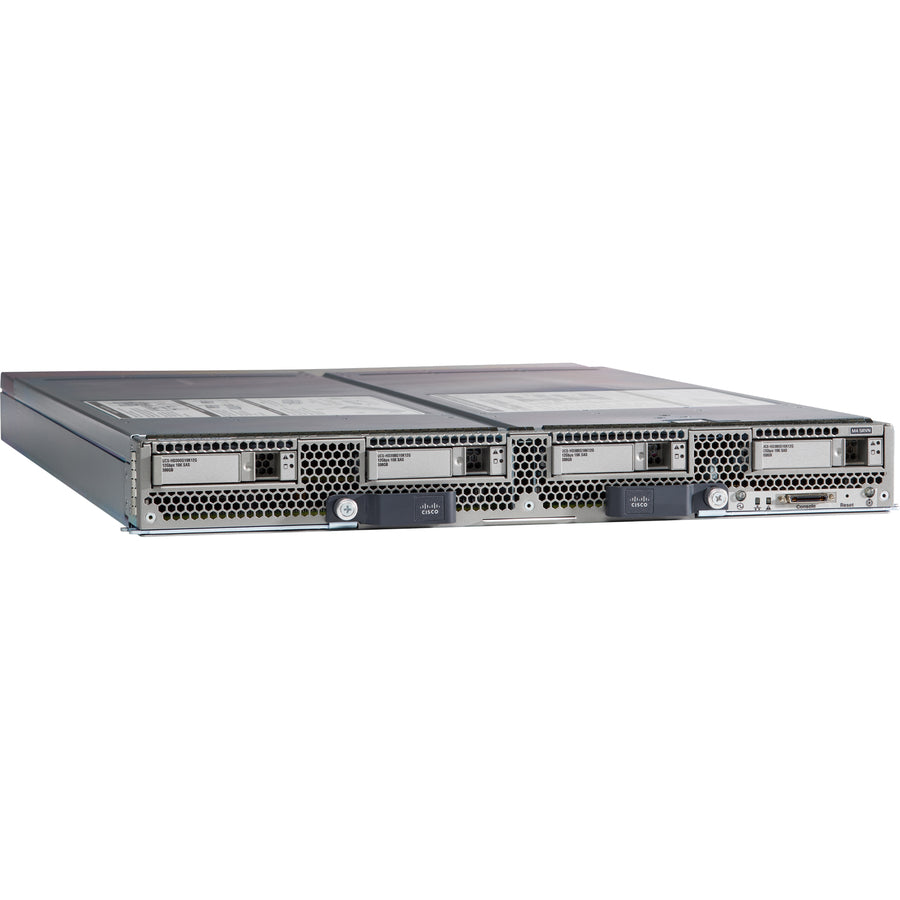

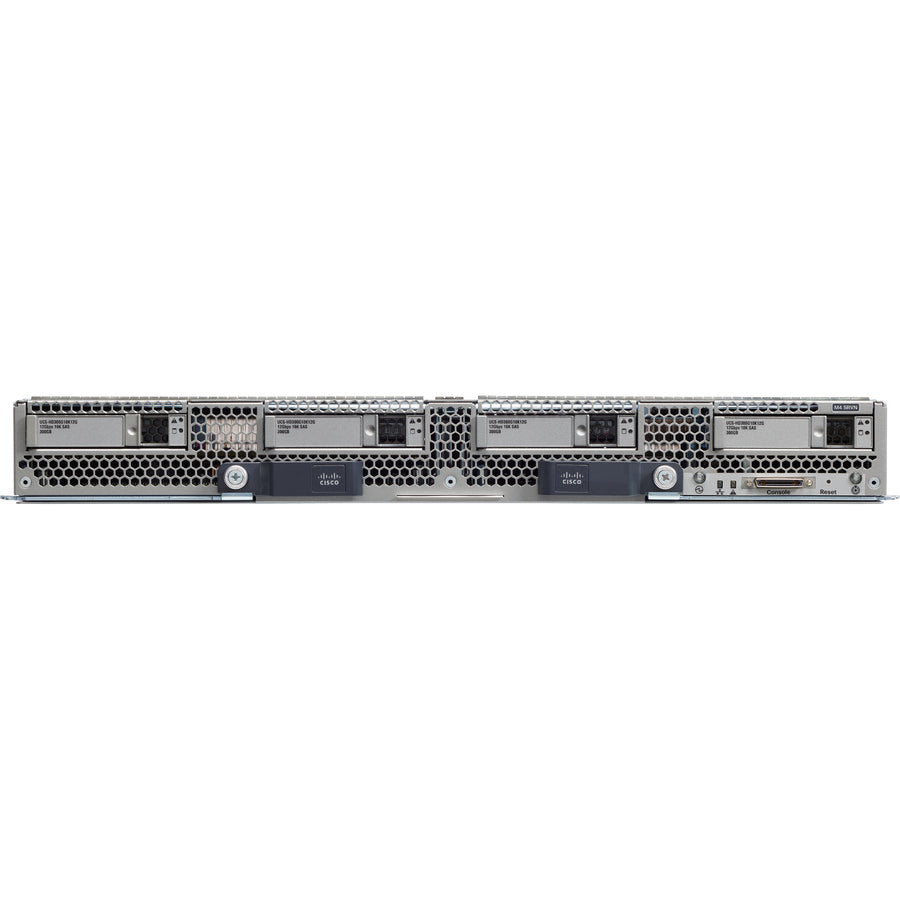

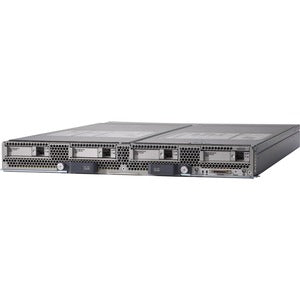

Cisco Barebone System - Refurbished - Blade - 4 x Processor Support
SKU: UCSB-B480-M5-U-RF
Designed for demanding virtualization and database workloads, the UCS B480 M5 combines a large memory footprint with four-socket scalability, leveraging the Intel® Xeon® Scalable processor family CPUs. The UCS B480 M5 supports 2666-MHz DDR4 memory and utilizes UCS Virtual Interface Card (VIC) technology to achieve up to 160 Gb aggregate I/O bandwidth, all in a dense, full-width blade form factor. The UCS B480 M5 maintains memory performance even as capacity grows can support up to 6 TB of memory without compromise to CPU speed or core count. Up to four UCS B480 M5 Blade Servers can be installed in the UCS 5108 Blade Server Chassis.
The UCS B480 M5 Blade Server is centrally managed using Cisco UCS Manager. Cisco UCSM provides a single management interface for all hardware and software components of a UCS domain. Cisco UCSM manages up to 160 servers, using Single Connect Technology to consolidate network, storage, and management traffic. With Cisco UCS Central, management can be extended globally to thousands of servers in multiple domains.
The UCS B480 M5 Blade Server is centrally managed using Cisco UCS Manager. Cisco UCSM provides a single management interface for all hardware and software components of a UCS domain. Cisco UCSM manages up to 160 servers, using Single Connect Technology to consolidate network, storage, and management traffic. With Cisco UCS Central, management can be extended globally to thousands of servers in multiple domains.
- Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- 12Gb/s SAS interface for high speed and reliability
Call for Availability
Regular price
$4,575.22
Sale price
$7,988.85
On Sale
Shipping calculated at checkout
Designed for demanding virtualization and database workloads, the UCS B480 M5 combines a large memory footprint with four-socket scalability, leveraging the Intel® Xeon® Scalable processor family CPUs. The UCS B480 M5 supports 2666-MHz DDR4 memory and utilizes UCS Virtual Interface Card (VIC) technology to achieve up to 160 Gb aggregate I/O bandwidth, all in a dense, full-width blade form factor. The UCS B480 M5 maintains memory performance even as capacity grows can support up to 6 TB of memory without compromise to CPU speed or core count. Up to four UCS B480 M5 Blade Servers can be installed in the UCS 5108 Blade Server Chassis.
The UCS B480 M5 Blade Server is centrally managed using Cisco UCS Manager. Cisco UCSM provides a single management interface for all hardware and software components of a UCS domain. Cisco UCSM manages up to 160 servers, using Single Connect Technology to consolidate network, storage, and management traffic. With Cisco UCS Central, management can be extended globally to thousands of servers in multiple domains.
The UCS B480 M5 Blade Server is centrally managed using Cisco UCS Manager. Cisco UCSM provides a single management interface for all hardware and software components of a UCS domain. Cisco UCSM manages up to 160 servers, using Single Connect Technology to consolidate network, storage, and management traffic. With Cisco UCS Central, management can be extended globally to thousands of servers in multiple domains.
- Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- 12Gb/s SAS interface for high speed and reliability
64-bit Processing:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
C620
Controller Type:
12Gb/s SAS
Country of Origin:
United States
Ethernet Technology:
Gigabit Ethernet
Form Factor:
Blade
Graphics Controller Manufacturer:
Matrox
Graphics Controller Model:
G200e
Graphics Memory Capacity:
16 MB
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com
Memory Standard:
DDR4-2666/PC4-21300
Memory Technology:
DDR4 SDRAM
Number of 2.5" Bays:
4
Number of Processors Supported:
4
Number of Total Expansion Bays:
4
Processor Supported:
Xeon
Product Condition:
Refurbished
Product Series:
B480 M5
Product Type:
Barebone System
RAID Supported:
Yes
Total Number of Memory Slots:
48
