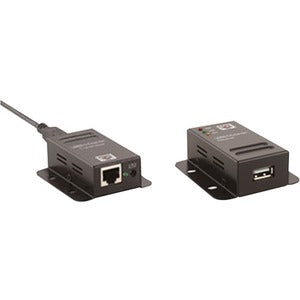

VDO360 Springline USB Extender
The VUSBEXT-U is an economical but high performance USB extender, compliant with USB 2.0 specifications. Extend USB PTZ HD Cameras from the Host (PC) up to 50m (164 ft) using twisted pair cable.
Call for Availability
Shipping calculated at checkout
The VUSBEXT-U is an economical but high performance USB extender, compliant with USB 2.0 specifications. Extend USB PTZ HD Cameras from the Host (PC) up to 50m (164 ft) using twisted pair cable.
- Support for any high-speed (480 Mb/s) , full-speed (12 Mb/s) or low speed (1.5 Mb/s) USB device
- Allows a USB PTZ Camera to be remotely located by up to 50m (164 ft)
- Supports suspends/resumes standard for green operation
- Supports Hot Plug/Unplug
- Economical
- No software driver required
- Local unit: Upstream Port: USB type A Male, Downstream Port: RJ45 Jack Power: Powered from remote end.
- Remote Unit: Upstream Port: USB Type A Female, Downstream Port: RJ45 Jack
- Power: External +5V DC Supply.
- Dimensions: 2.6 x 1.4 x 0.8 inch (66 x 36 x 20 mm)
- Interconnect Cable: Standard category 5e/6 UTP or STP
- Max Cable Length: 50 m (164 ft)
- Operating Temperature: 32 to 150 °F (0 to 65 °C)
- Springline Receiving Unit (Computer End)
- Springline Sending Unit (Camera End)
- Power Supply for Sending Unit
