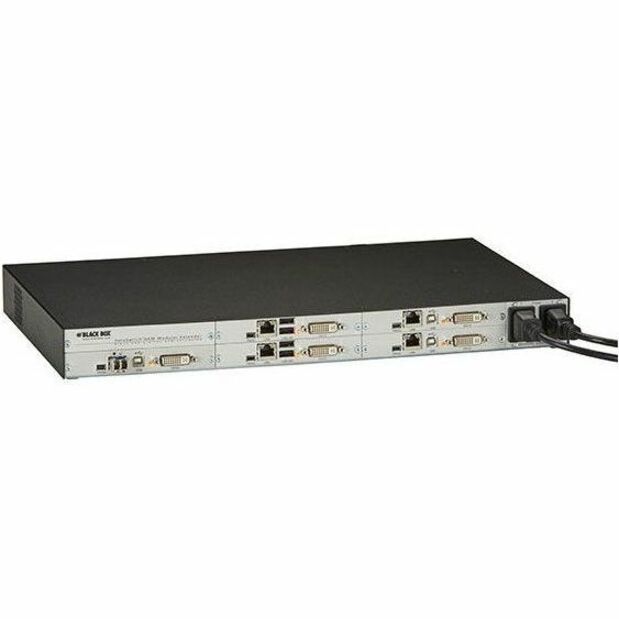

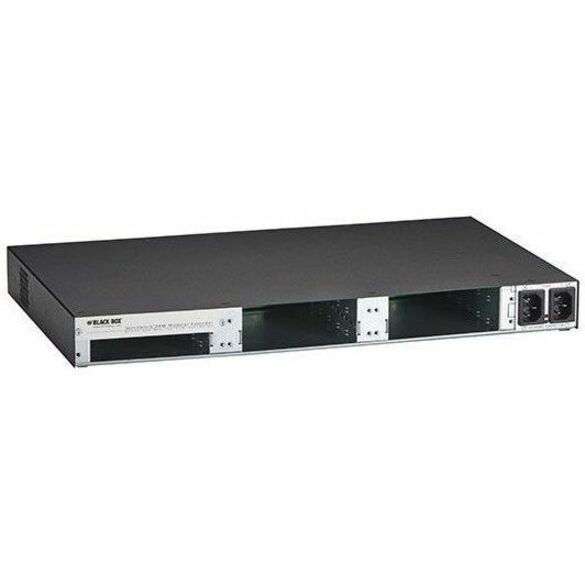

Black Box ACXMODH6BPAC-R2 KVM Extender Housing Chassis

The DKM HD Video and Peripheral Matrix Switch System is comprised of modular housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application. These new DKM components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM HD Video and Peripheral Matrix Switch setup, call our FREE Tech Support.

• Four housings are available: desktop housing for two, four, or six boards or a 19-inch, 4U rack for 21 boards.
• A redundant power supply option is available in some housings.
• The 6-slot chassis will accept up to (6) modular cards in a 19" rack mount chassis for the DKM and has built-in 5-VDC, 10-Amp internal power supplies.
• Can be rackmounted with ACXMODHEAR6-FPAC.

• Can be rack mounted by adding ACXMODHEAR6-FPAC, 19" 1U rackmount ears for the chassis
• Backplane support allows seamless installation/swapping of cards without powering off the chassis.
• Includes a built-in internal power supply and an option for an additional power supply.
• Supports (6) transmitter or receiver cards.

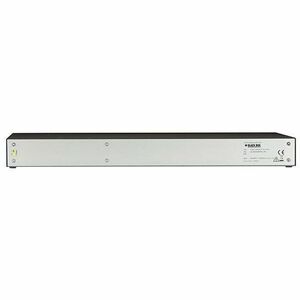

• Part of the DKM HD Video and Peripheral Matrix Switch System of transmitter and receiver interface cards and housings. Supports (6) transmitter or receiver cards. Includes a built-in internal power supply and an option for an additional power supply. Backplane support allows seamless installation/swapping of cards without powering off the chassis. Power connectors on back.
