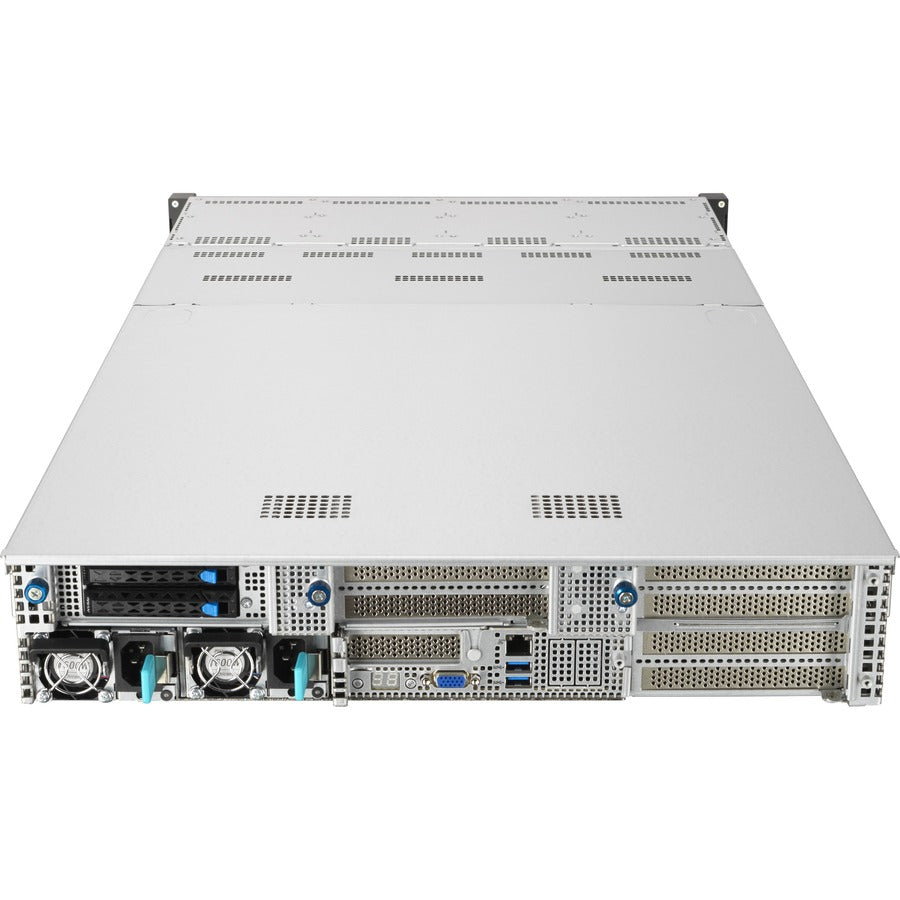

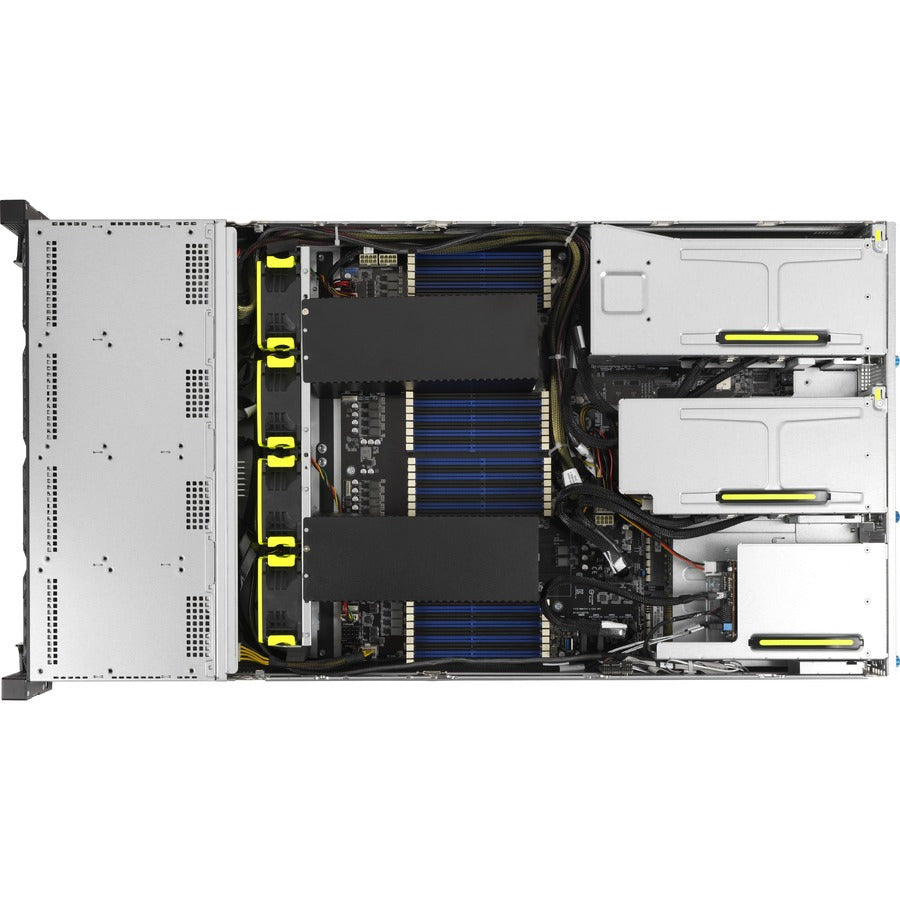

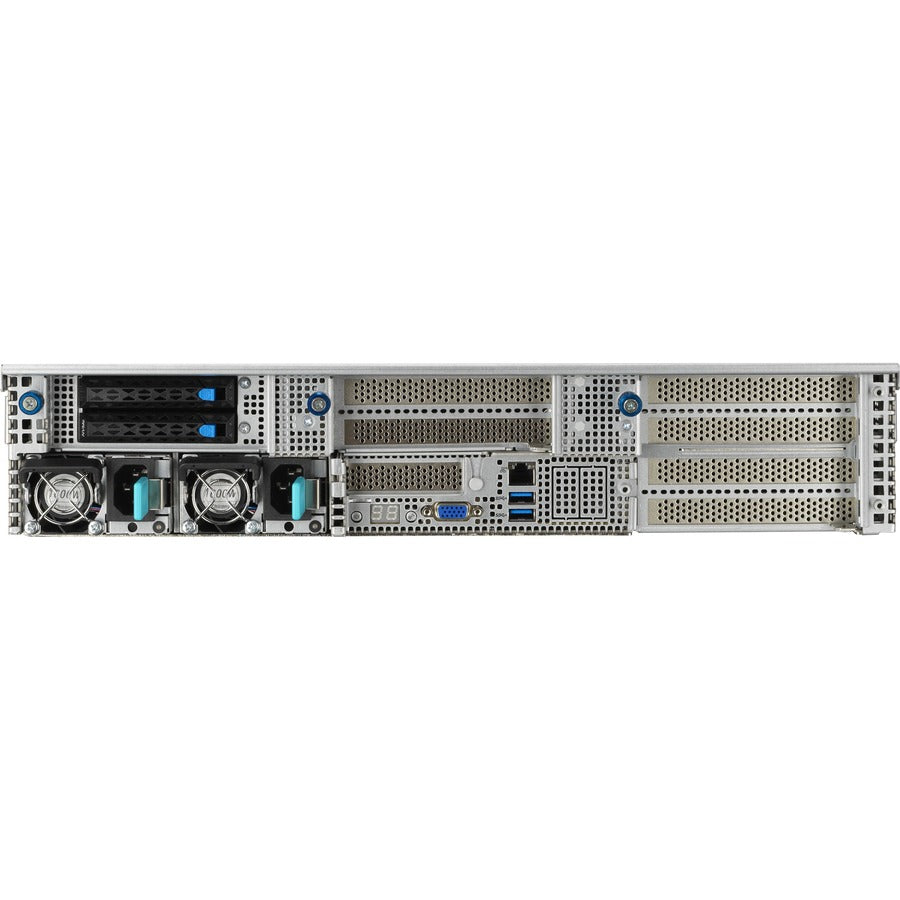

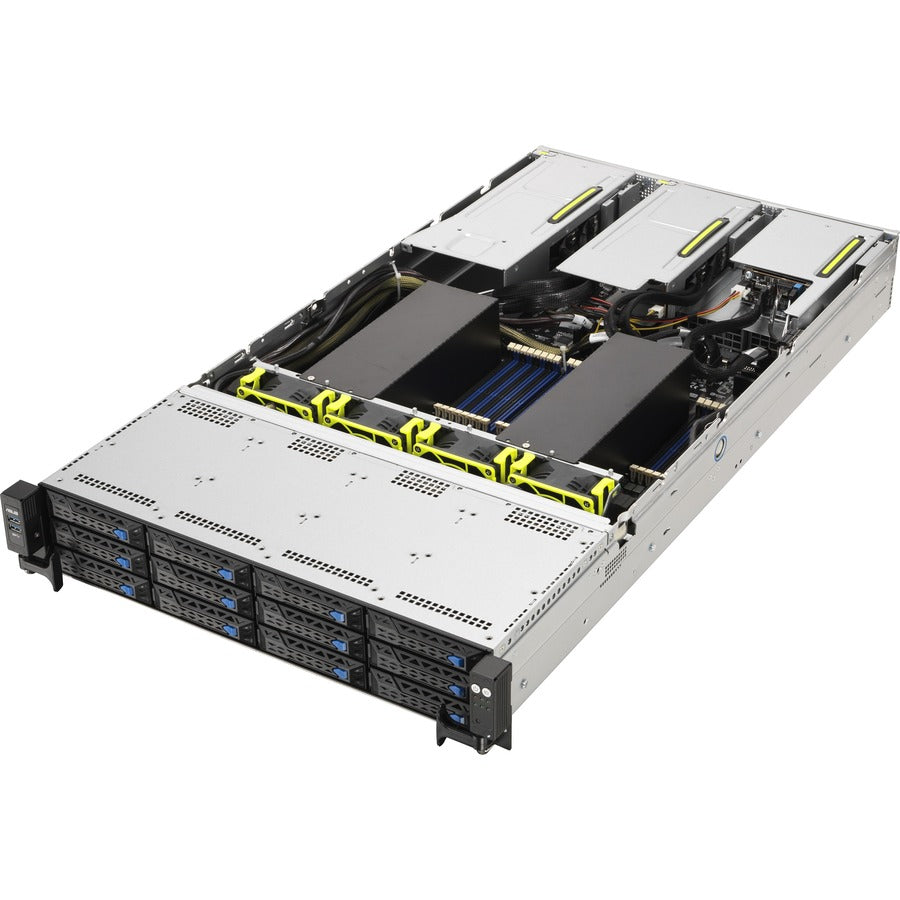

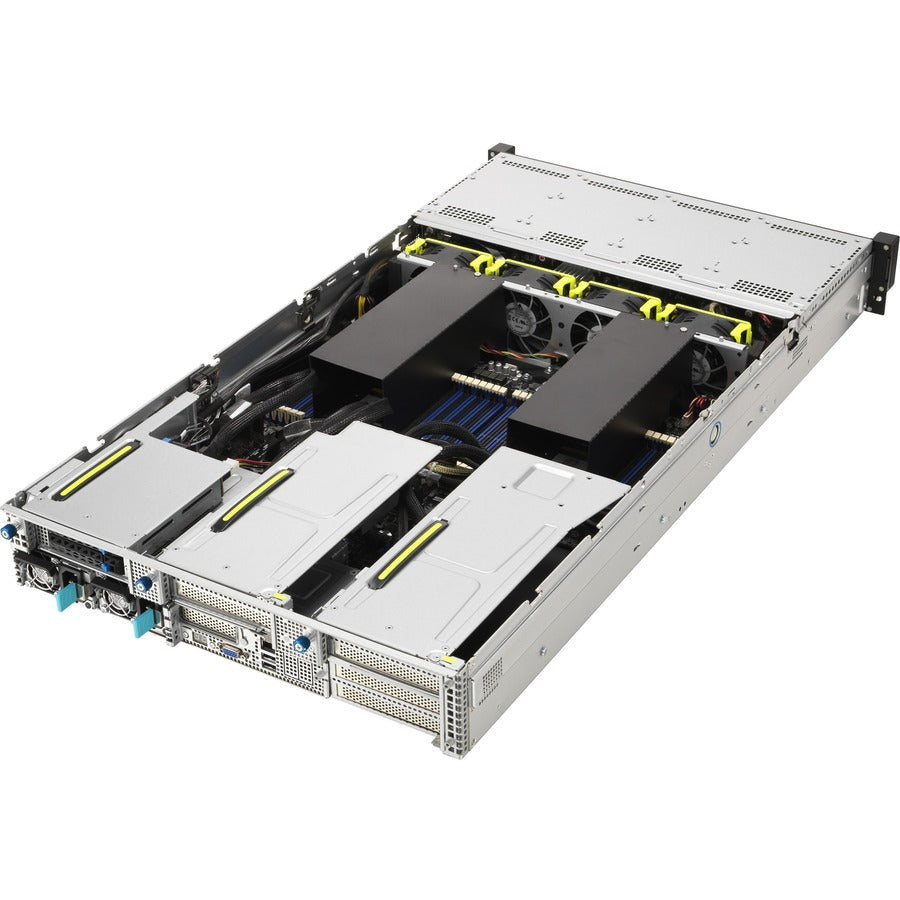

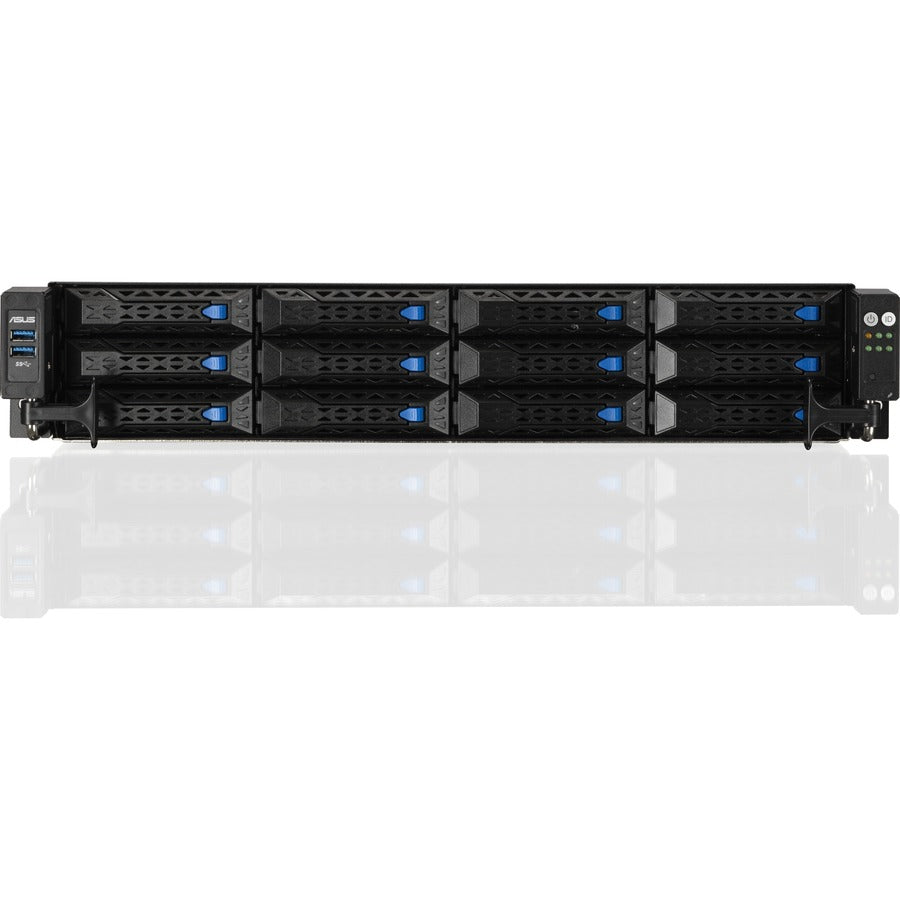

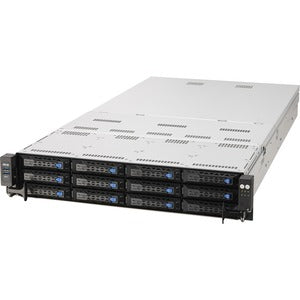

Asus RS720A-E11-RS12EWOCPU012Z Barebone System - 2U Rack-mountable - Socket LGA-4094 - 2 x Processor Support

AMD EPYC™ 7003 2U dual-socket server that supports up to 32 DIMM, four dual-slot GPUs (GPU SKU), 8 NVMe, nine PCIe 4.0 slots, OCP 3.0, M.2 and ASUS ASMB10-iKVM

Key Features

• Powered by AMD EPYC 7003 processor with 64 cores, 128 threads and support for a maximum TDP of up to 280 watts per socket
• GPU-optimized design allows four dual-slot GPUs for AI workloads (GPU SKU)
• A total of 12 storage bays in combination of NVMe/SATA/SAS drives on front panel to enable extensive storage and high-throughput performance
• Up to nine PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
• Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options
• Flexible air and liquid cooling solution achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers
• Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
• Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
• High power efficiency with redundant 2400W 80 Plus Titanium and Platinum power supplies

AMD EPYC 7003 Series Processors

The latest AMD EPYC™ 7003 series processors are the new standard for modern data centers. AMD was first with X86 multi-chip-module server CPUs and continues to innovate with the 3rd Gen EPYC processors, including up to 32MB of L3 cache per core and synchronized fabric and memory-clock speeds designed for improved performance.

PCIe 4.0 Ready

PCI Express^® (PCIe^®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS720A-E11 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.

Four Dual-slot GPUs Support

ASUS RS720A-E11 servers feature a powerful GPU* architecture that supports up to four dual-slot GPUs* such as NVIDIA A100 in one 2U system to enable easy scale-up in order to meet the demands of AI and high-performance computing (HPC), and to securely run workloads in virtualized environments.

ASUS AMD EPYC 7003-based series are Xilinx Alveo-qualified servers to provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.

CPU-balanced Architecture

The new AMD EPYC 7003 processors excel at providing full features and functionality for both dual-socket and single-socket platforms, but our new servers ASUS is introducing an CPU-balanced architecture to enable secure and optimal CPU-performance efficiency.

• Perform computational tasks effectively accrediting the EPYC processor
• DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
• Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
• With 4 USB ports, connect/disconnect devices while not having to shut down the system
• With Serial ATA/600 interface get superb reliability and high-speed data transfer
