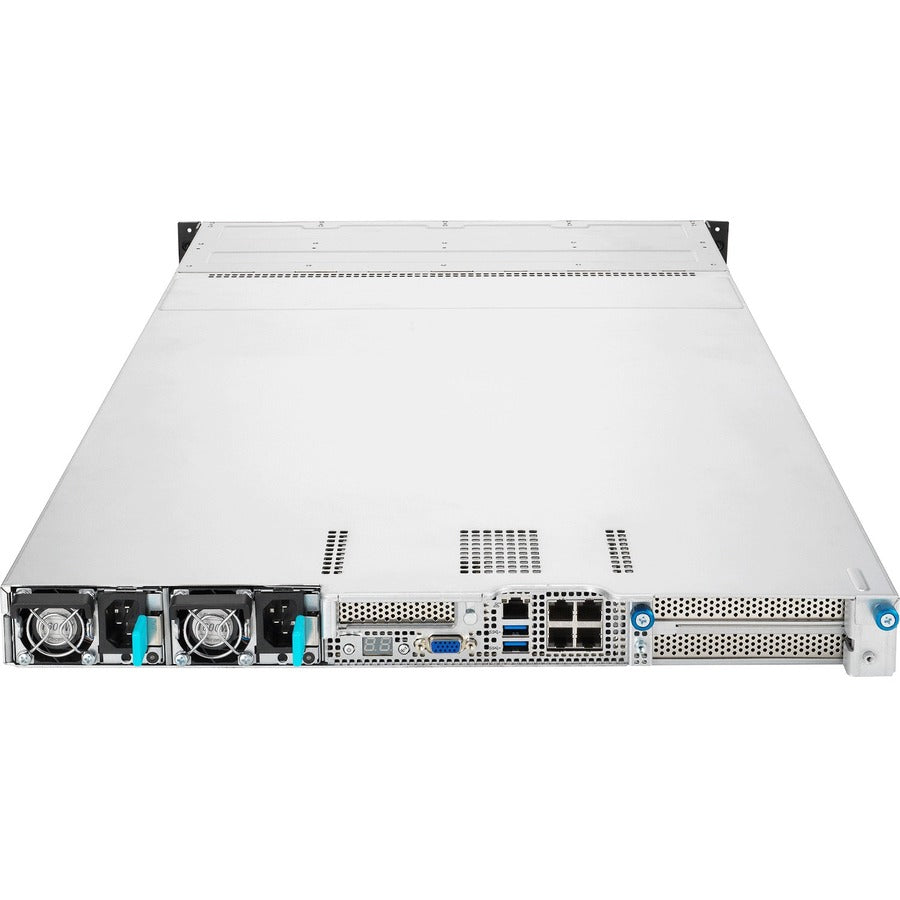

Asus RS700-E11-RS12U-16W10G Barebone System - 1U Rack-mountable - Socket LGA-4677 - 2 x Processor Support

SKU: RS700-E11-RS12U-16W10G

RS700-E11-RS12U

1U dual-socket server powered by 4th Gen Intel Xeon Scalable processors that supports 32 DIMMs, 4 PCIe 5.0 slots, 12 NVMe, 1 dual-slot GPU, OCP 3.0, ASUS ASMB11-iKVM

KEY FEATURES

  • Powerful performance: Powered by 4th Gen Intel Xeon Scalable processors designed for potent data infrastructure from the cloud, to the network, to the intelligent edge

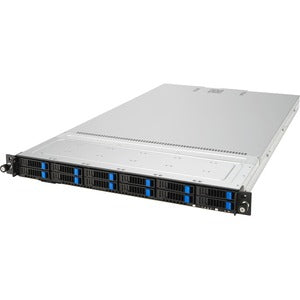

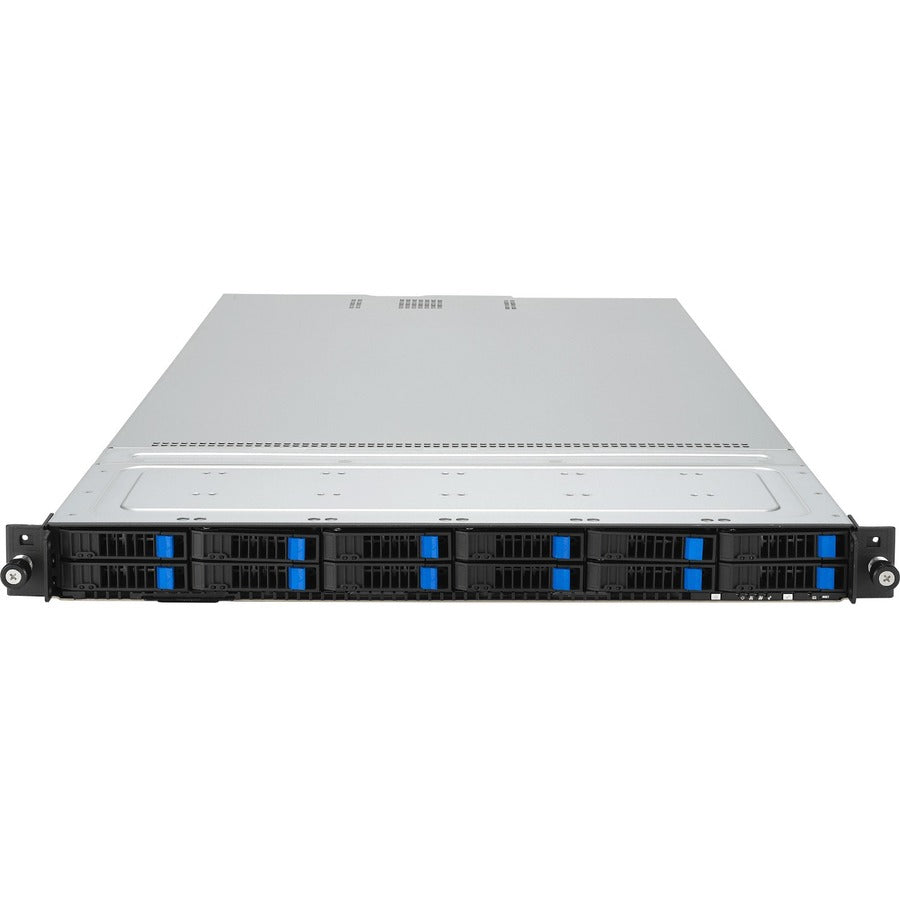

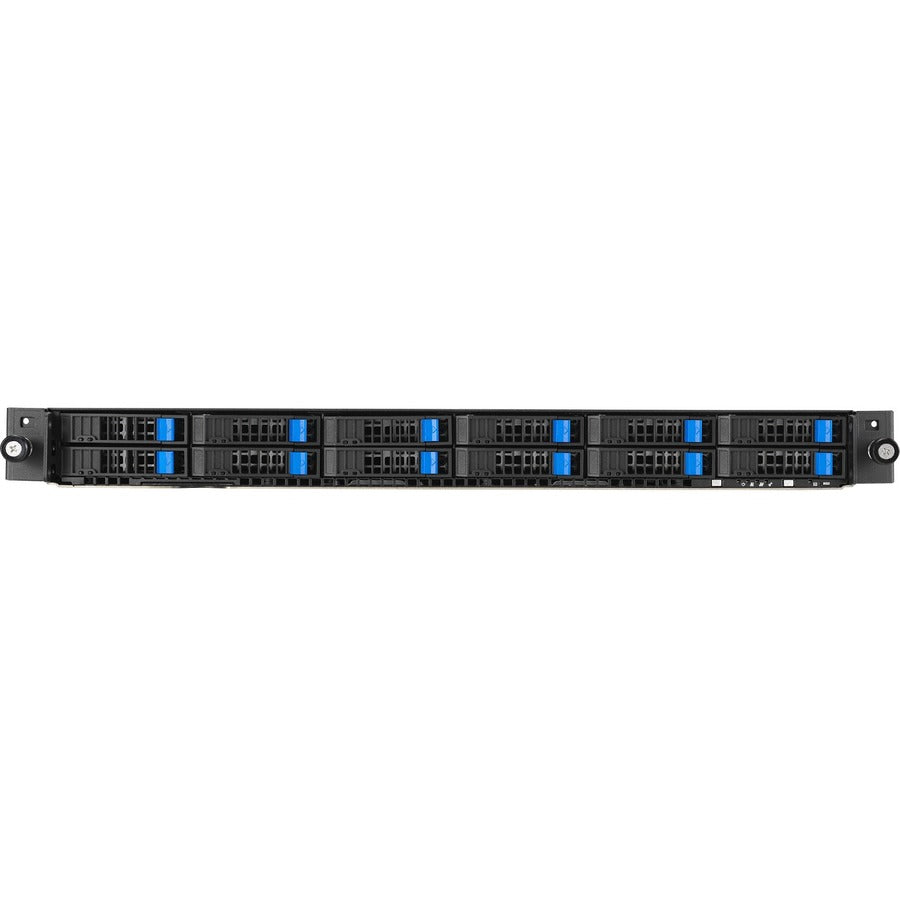

  • Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, and 4 PCIe 5.0 slots for higher bandwidth and system upgrade

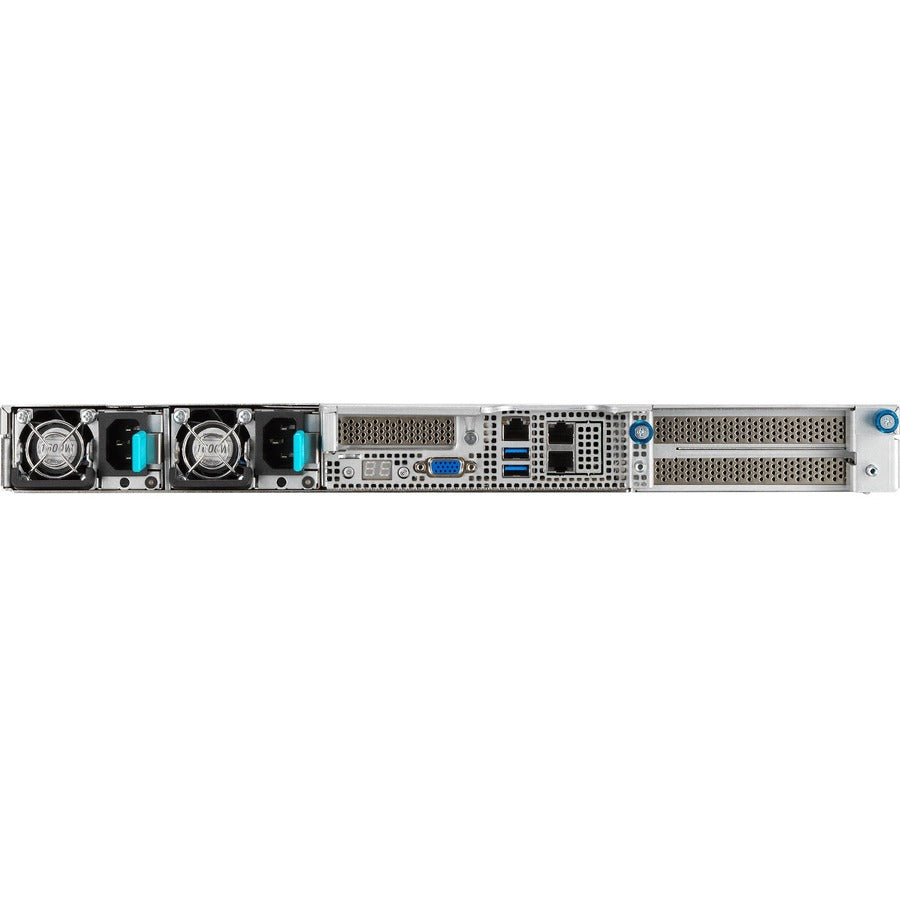

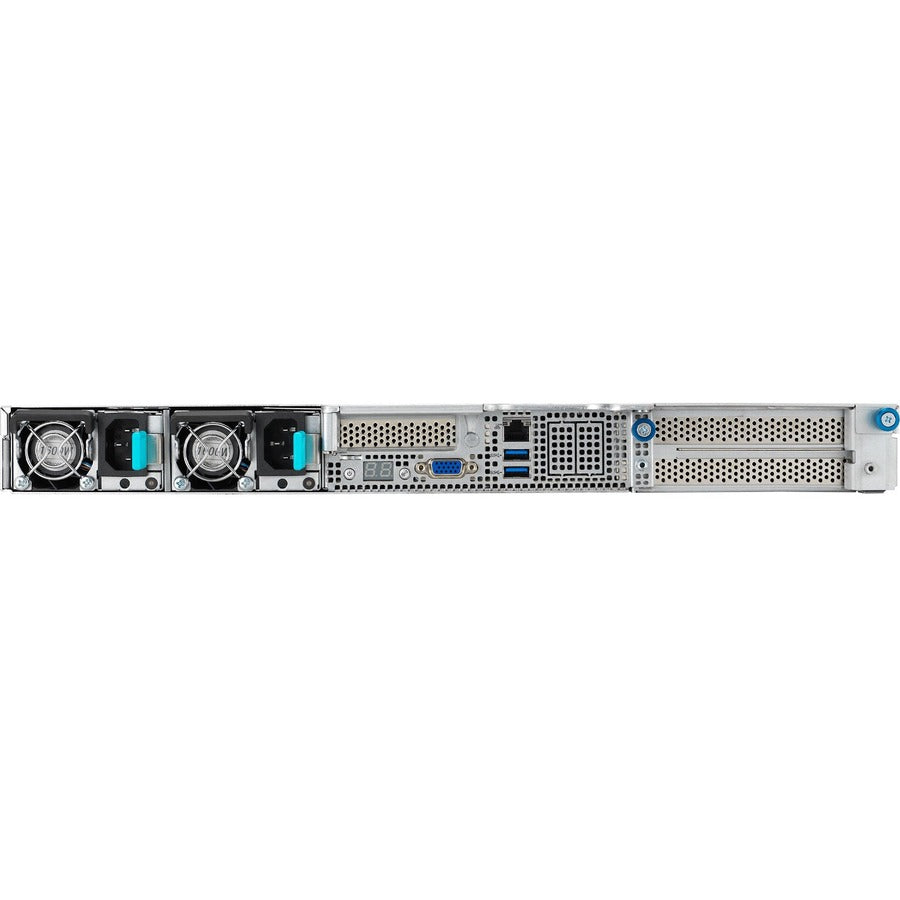

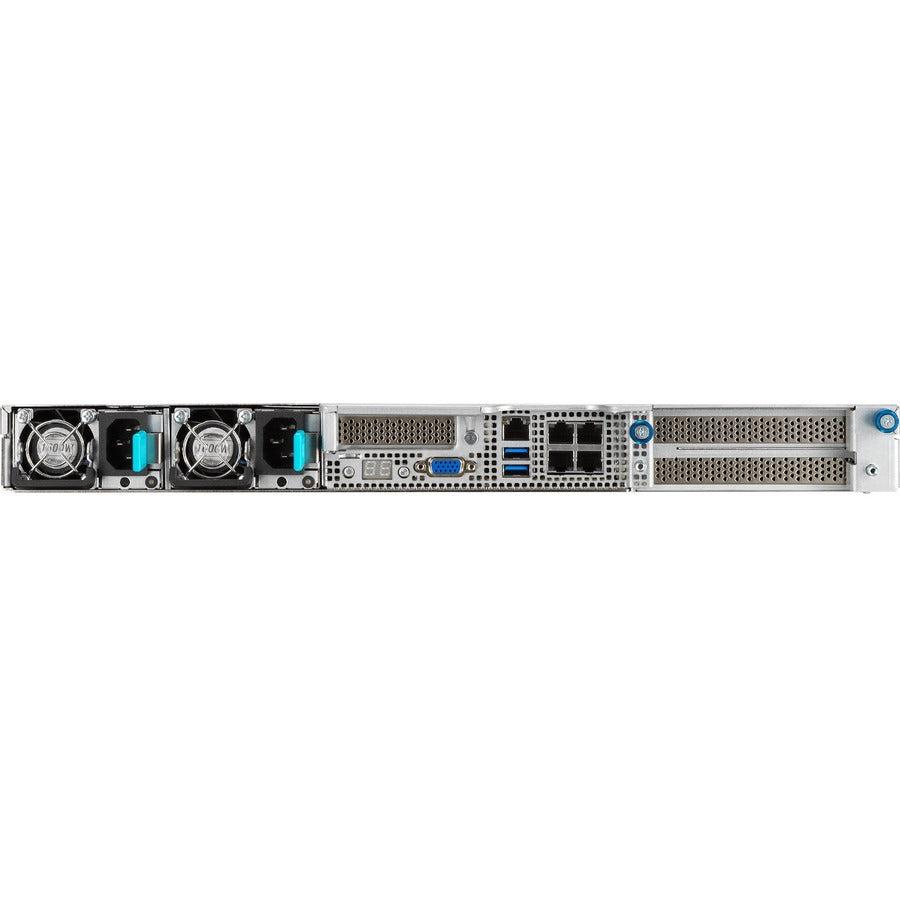

  • Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
  • Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
  • Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
  • Ready for AI and HPC workloads: Supports 1 dual-slot GPU, including Intel Data Center GPU Flex series and NVIDIA A100
  • PCIe 5.0 Ready | Faster storage, graphics and networking capabilities

    PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

    • Perform computational tasks effectively accrediting the Xeon Platinum processor
    • The DDR5 SDRAM memory technology efficiently move data across electric components and provide smooth PC performance
    • Get data transfer speeds up to 10 Mbps with Ethernet connectivity
    • Provides 4 USB ports for responsive and expanded device connections
    • With Serial ATA interface get superb reliability and high-speed data transfer

    Call for Availability

    Regular price $3,350

    Shipping calculated at checkout

    Details

    RS700-E11-RS12U

    1U dual-socket server powered by 4th Gen Intel Xeon Scalable processors that supports 32 DIMMs, 4 PCIe 5.0 slots, 12 NVMe, 1 dual-slot GPU, OCP 3.0, ASUS ASMB11-iKVM

    KEY FEATURES

  • Powerful performance: Powered by 4th Gen Intel Xeon Scalable processors designed for potent data infrastructure from the cloud, to the network, to the intelligent edge
  • Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, and 4 PCIe 5.0 slots for higher bandwidth and system upgrade
  • Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
  • Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
  • Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
  • Ready for AI and HPC workloads: Supports 1 dual-slot GPU, including Intel Data Center GPU Flex series and NVIDIA A100
  • PCIe 5.0 Ready | Faster storage, graphics and networking capabilities

    PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

    • Perform computational tasks effectively accrediting the Xeon Platinum processor
    • The DDR5 SDRAM memory technology efficiently move data across electric components and provide smooth PC performance
    • Get data transfer speeds up to 10 Mbps with Ethernet connectivity
    • Provides 4 USB ports for responsive and expanded device connections
    • With Serial ATA interface get superb reliability and high-speed data transfer
    Specifications
    64-bit Processing:
    Yes
    Chipset Manufacturer:
    Intel
    Chipset Model:
    C741
    Controller Type:
    Serial ATA,NVMe
    Environmentally Friendly:
    Yes
    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)
    Ethernet Technology:
    Ethernet
    Form Factor:
    Rack-mountable
    Graphics Controller Model:
    AST2600
    Graphics Memory Capacity:
    64 MB
    Input Voltage:
    120 V AC,230 V AC
    Intel Optane Memory Ready:
    Yes
    Manufacturer:
    ASUS Computer International
    Manufacturer Website Address:
    http://usa.asus.com
    Maximum Memory Supported:
    12 TB
    Maximum Power Supply Wattage:
    1600 W
    Memory Standard:
    DDR5-4800/PC5-38400
    Memory Technology:
    DDR5 SDRAM
    Network (RJ-45):
    Yes
    Number of M.2 Interfaces:
    2
    Number of PCI Express x16 Slots:
    3
    Number of PCI Express x8 Slots:
    1
    Number of Power Supplies Installed:
    2
    Number of Processors Supported:
    2
    Number of Total Expansion Bays:
    12
    Number of USB 3.2 Gen 1 Ports:
    4
    Number of VGA Ports:
    1
    Operating System Supported:
    Windows Server 2022 x64,Red Hat Enterprise Linux,SuSE Linux Enterprise Server,CentOS,Ubuntu Linux,Windows Server 2019 x64
    Processor Socket:
    Socket LGA-4677
    Processor Supported:
    Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze
    Product Model:
    RS700-E11-RS12U-16W10G
    Product Series:
    RS700-E11-RS12U
    Product Type:
    Barebone System
    Rack Height:
    1U
    Total Number of Expansion Slots:
    4
    Total Number of Memory Slots:
    32
    Total Number of USB Ports:
    4
