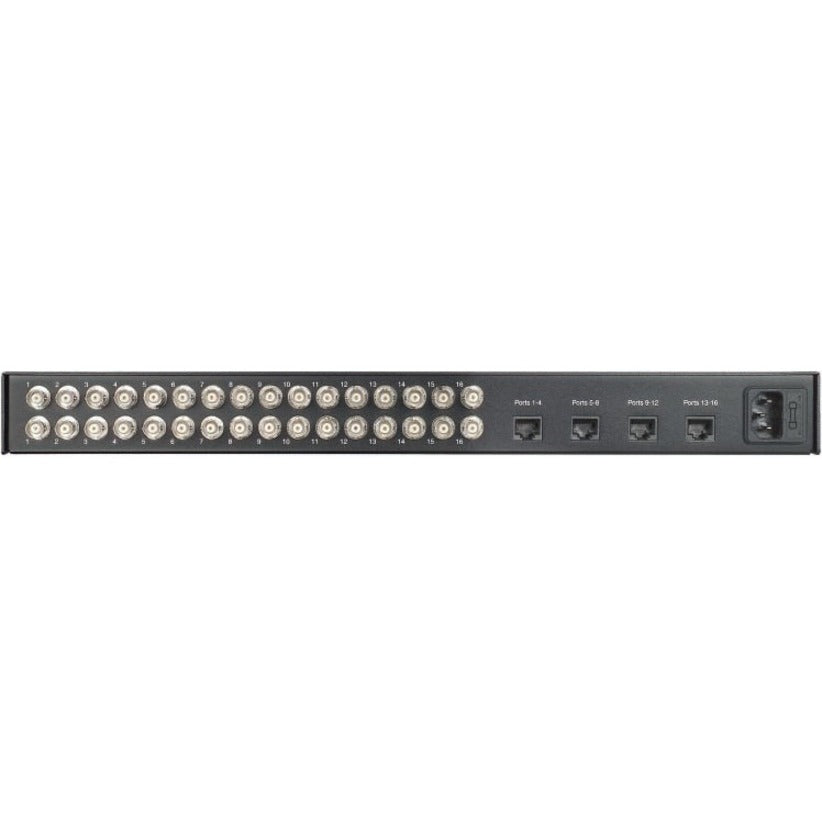

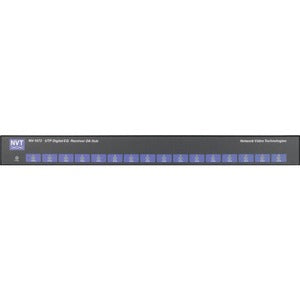

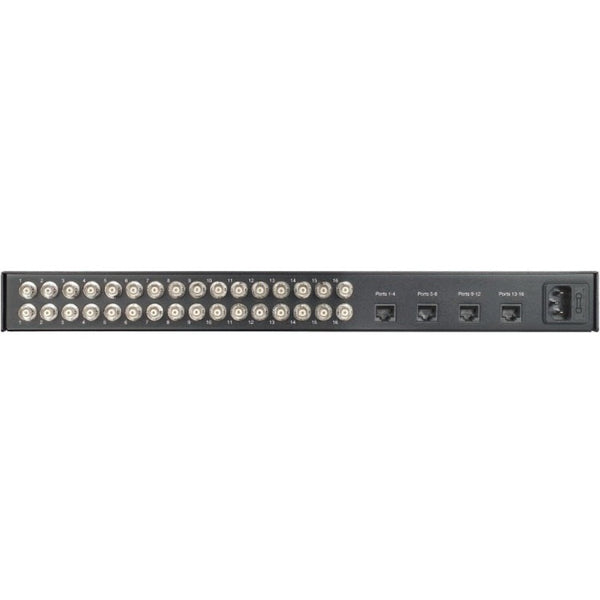

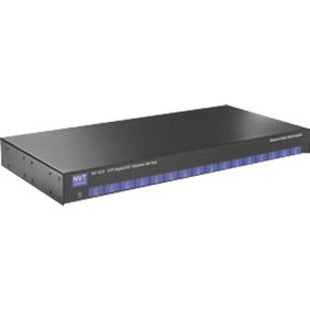

NVT Phybridge 16-Channel DigitalEQ Active Receiver Distribution Amplifier Hub
SKU: NV-1672
Features:
The unparalleled interference rejection and low emissions allow long run video to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. this allows the use of shared or existing cable plant. Ground-lifting ensures no annoying "hum-bars" when ground-potential differences exist. With built-in transient protection, damaging voltage spikes are eliminated.
- Adaptive DigitalEQTM fully automatic 4-band equalization provides adjustment-free equalization every time
- Compact rack-mountable 19" 1U high enclosure features 16 channels with 2 outputs per channel
- Full motion CCTV video at distances up to 3,000ft (1km) when used with any passive NVT transceiver or hub; 1 mile (1,6km) when used with the NV-653T active transmitter; 1,000ft (300m) with shielded twisted-pair when used with any passive NVT transceiver or hub
- RJ45 connectivity with optional NV-RJ45A RJ45-to-screw-terminal adaptors (included)
- Exceptional interference rejection
- Built-in transient protection and ground-lifting
- Automatic compensation for reverse-polarity wiring
- At-a-glance per-channel diagnostics
- Compatible with qualified UTP cameras
- Includes sixteen 2ft (60cm) coax jumper cables, rack mount hardware and four NV-RJ45A adaptors
- Limited lifetime warranty
The unparalleled interference rejection and low emissions allow long run video to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. this allows the use of shared or existing cable plant. Ground-lifting ensures no annoying "hum-bars" when ground-potential differences exist. With built-in transient protection, damaging voltage spikes are eliminated.
- Video Extender Receiver provides efficient and feasible audio/video transmission, decoding, and extending
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- The NV-1672 video extender receiver provides plenty of freedom with wired connectivity
- 3280.84 ft maximum operating distance for feasible operation and optimal coverage
- Rack-mountable form factor for your convenience and simplicity of usage
Call for Availability
Regular price
$3,238.29
Sale price
$3,700
On Sale
Shipping calculated at checkout
Features:
The unparalleled interference rejection and low emissions allow long run video to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. this allows the use of shared or existing cable plant. Ground-lifting ensures no annoying "hum-bars" when ground-potential differences exist. With built-in transient protection, damaging voltage spikes are eliminated.
- Adaptive DigitalEQTM fully automatic 4-band equalization provides adjustment-free equalization every time
- Compact rack-mountable 19" 1U high enclosure features 16 channels with 2 outputs per channel
- Full motion CCTV video at distances up to 3,000ft (1km) when used with any passive NVT transceiver or hub; 1 mile (1,6km) when used with the NV-653T active transmitter; 1,000ft (300m) with shielded twisted-pair when used with any passive NVT transceiver or hub
- RJ45 connectivity with optional NV-RJ45A RJ45-to-screw-terminal adaptors (included)
- Exceptional interference rejection
- Built-in transient protection and ground-lifting
- Automatic compensation for reverse-polarity wiring
- At-a-glance per-channel diagnostics
- Compatible with qualified UTP cameras
- Includes sixteen 2ft (60cm) coax jumper cables, rack mount hardware and four NV-RJ45A adaptors
- Limited lifetime warranty
The unparalleled interference rejection and low emissions allow long run video to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. this allows the use of shared or existing cable plant. Ground-lifting ensures no annoying "hum-bars" when ground-potential differences exist. With built-in transient protection, damaging voltage spikes are eliminated.
- Video Extender Receiver provides efficient and feasible audio/video transmission, decoding, and extending
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- The NV-1672 video extender receiver provides plenty of freedom with wired connectivity
- 3280.84 ft maximum operating distance for feasible operation and optimal coverage
- Rack-mountable form factor for your convenience and simplicity of usage
Connectivity Technology:
Wired
Form Factor:
Rack-mountable,Wall Mountable,Desktop
Limited Warranty:
Lifetime
Manufacturer:
Phybridge, Inc
Manufacturer Website Address:
http://www.phybridge.com
Maximum Operating Distance:
3280.84 ft
Media Type Supported:
Twisted Pair
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
4
Package Contents:
- 16-Channel DigitalEQ Active Receiver Distribution Amplifier Hub
- Rack Mount "L" Brackets
- Rubber Feet
- 16 x 2ft (60cm) Coax Jumpers
- Molded IEC power inlet cord 7ft (200cm)
- 4 x NV-RJ45A RJ45 to-Screw-Terminal
Product Model:
NV-1672
Product Type:
Video Extender Receiver
Receiver Depth:
8.13"
Receiver Height:
1.70"
Receiver Width:
17"
Twisted Pair Cable Standard:
Category 5
