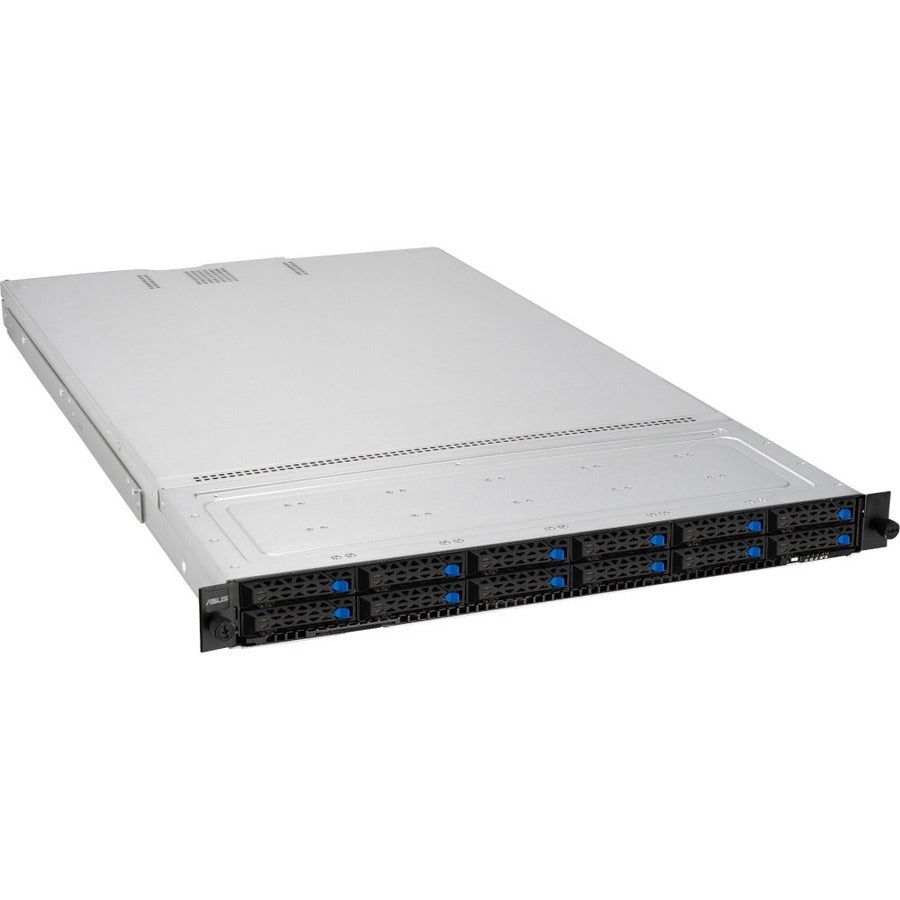

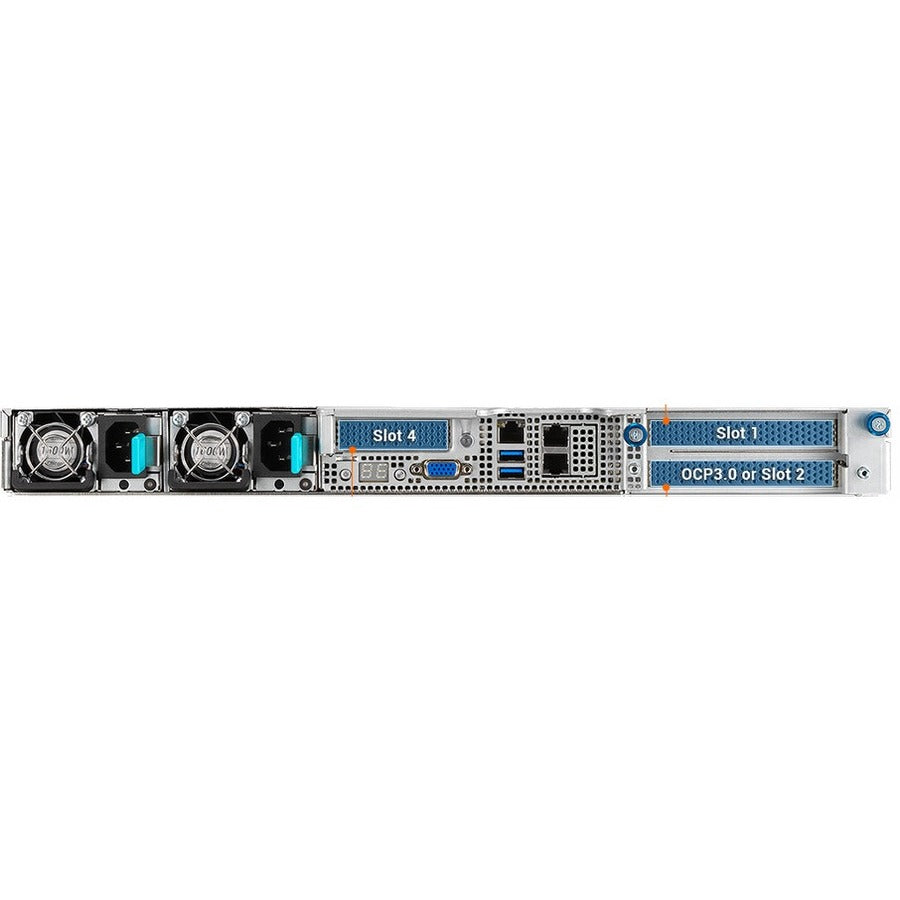

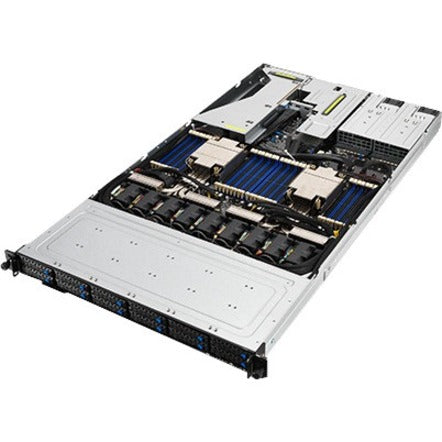

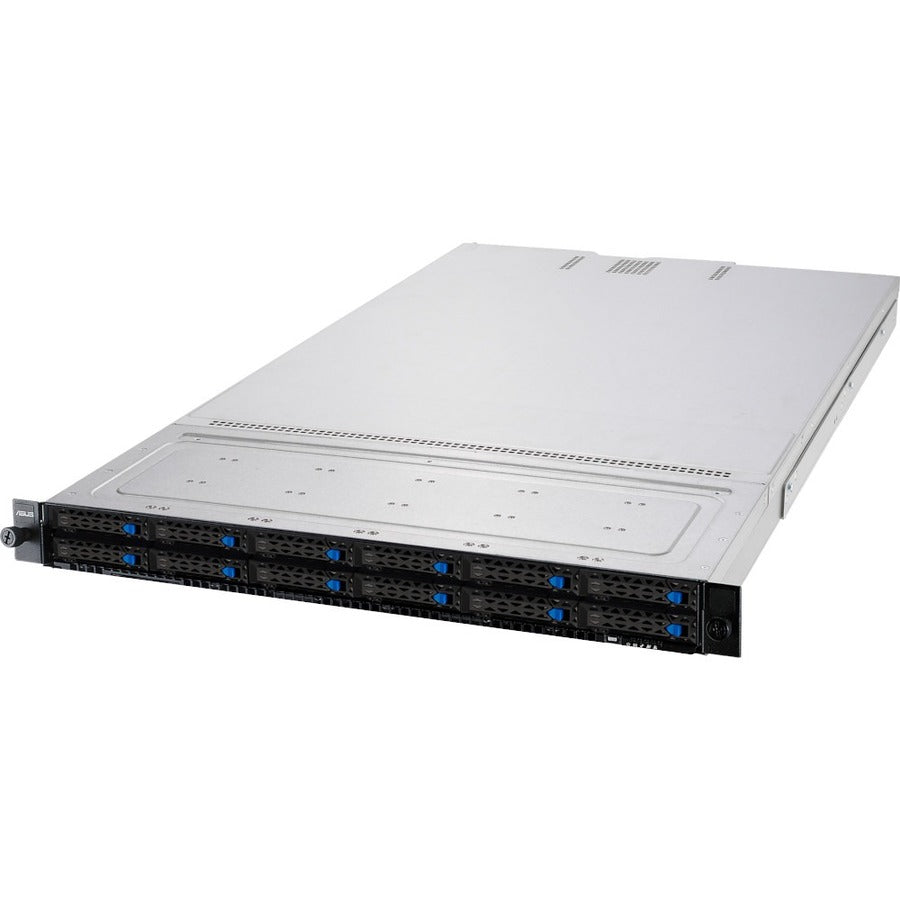

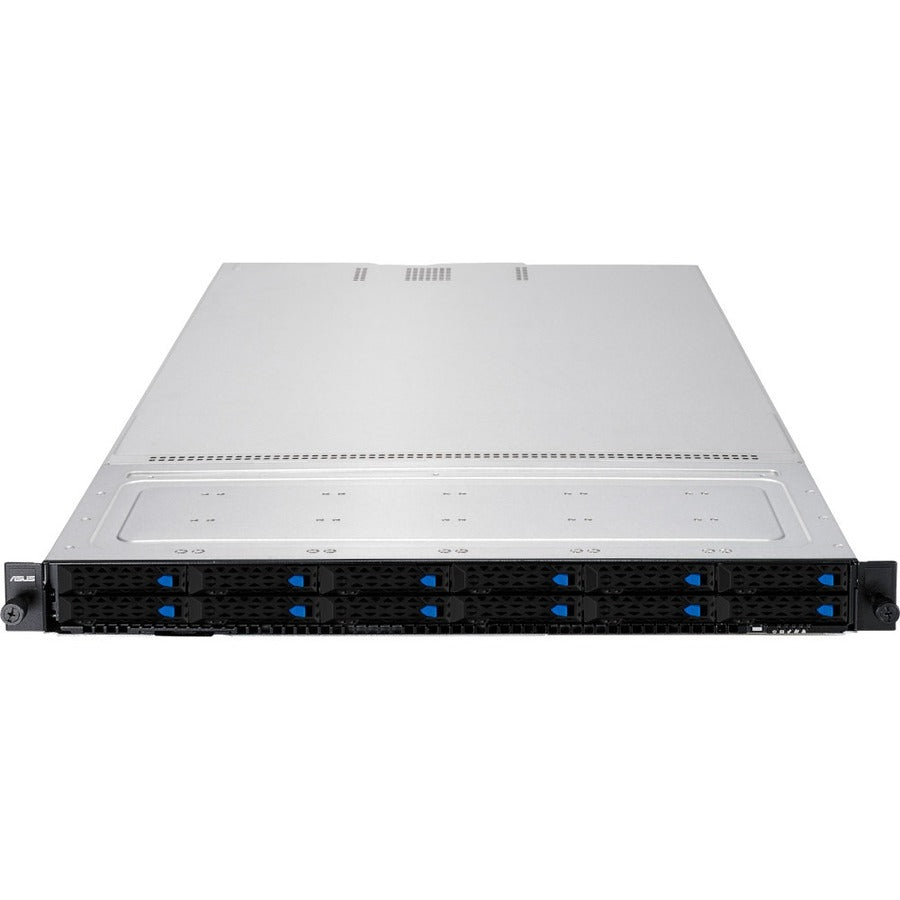

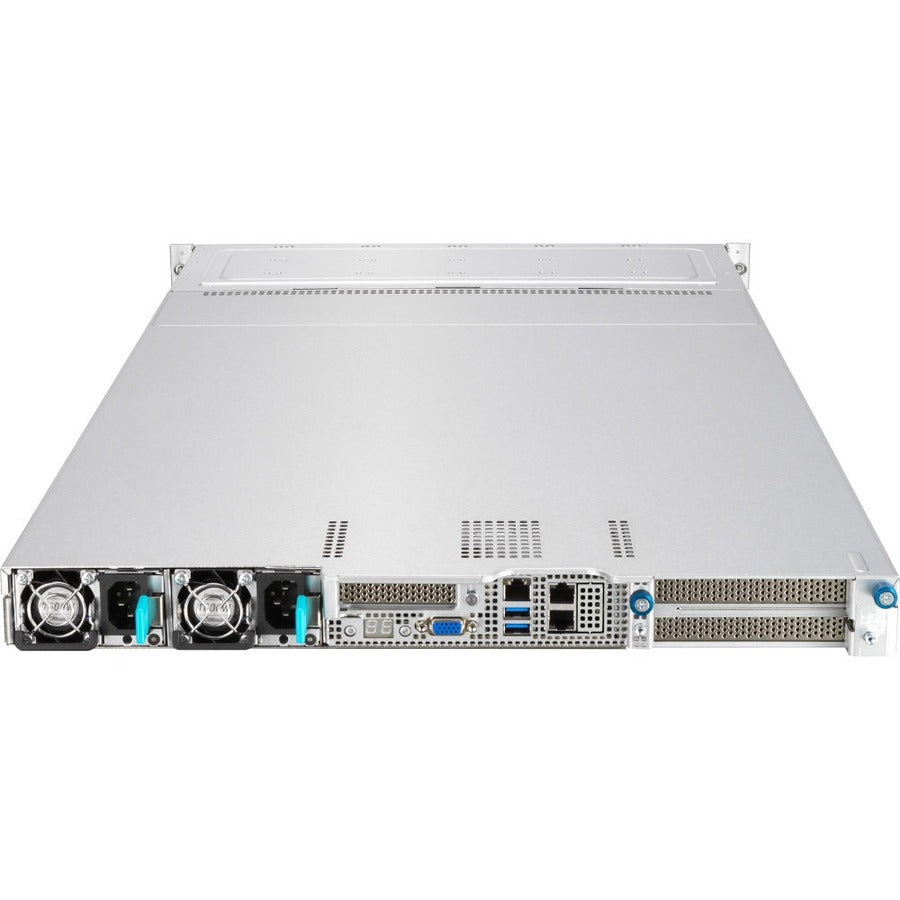

Asus RS700-E10-RS12U Barebone System - 1U Rack-mountable - Socket LGA-4189 - 2 x Processor Support
SKU: RS700-E10-RS12U-WOCPU006Z
1U dual-socket server powered 3rd Gen Intel Xeon Scalable processors that supports up to 32 DIMMs, one dual-slot GPU, 12 NVMe, four PCIe lots, one OPC 3.0, one M.2 and ASUS ASMB10-iKVM.
- Powered by dual-socket 3rd Gen Intel Scalable processors, with 32 DIMMs and support for a maximum TDP of up to 270 W per socket
- GPU-optimized design allows one dual-slot GPU for AI workloads
- Up to 12 all-flash NVMe drives on front panel to enable extensive storage and high-throughput performance
- Up to three PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
- Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options
- Flexible air- and liquid-cooling solution to achieve lower power-usage effectiveness (PUE) and optimized TCO for data centers
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
- High power efficiency with redundant 1600 W or 1200 W 80 Plus® Titanium/Platinum power supplies
- Compatible Xeon Bronze processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Can connect up to 4 USB peripherals
- Serial ATA/600 interface provides quick data transfer and greater throughput
Call for Availability
Regular price
$2,299
Shipping calculated at checkout
1U dual-socket server powered 3rd Gen Intel Xeon Scalable processors that supports up to 32 DIMMs, one dual-slot GPU, 12 NVMe, four PCIe lots, one OPC 3.0, one M.2 and ASUS ASMB10-iKVM.
- Powered by dual-socket 3rd Gen Intel Scalable processors, with 32 DIMMs and support for a maximum TDP of up to 270 W per socket
- GPU-optimized design allows one dual-slot GPU for AI workloads
- Up to 12 all-flash NVMe drives on front panel to enable extensive storage and high-throughput performance
- Up to three PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
- Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options
- Flexible air- and liquid-cooling solution to achieve lower power-usage effectiveness (PUE) and optimized TCO for data centers
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
- High power efficiency with redundant 1600 W or 1200 W 80 Plus® Titanium/Platinum power supplies
- Compatible Xeon Bronze processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Can connect up to 4 USB peripherals
- Serial ATA/600 interface provides quick data transfer and greater throughput
64-bit Processing:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
C621A
Controller Type:
Serial ATA/600,12Gb/s SAS
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Gigabit Ethernet,10 Gigabit Ethernet
Form Factor:
Rack-mountable
Graphics Controller Model:
AST2600
Graphics Memory Capacity:
64 MB
Intel Optane Memory Ready:
Yes
Limited Warranty:
3 Year
Manufacturer:
ASUS Computer International
Manufacturer Website Address:
http://usa.asus.com
Maximum Memory Supported:
1 TB
Memory Standard:
DDR4-3200/PC4-25600
Memory Technology:
DDR4 SDRAM
Number of PCI Express x16 Slots:
3
Number of PCI Express x8 Slots:
1
Number of PCI Slots:
4
Number of Power Supplies Installed:
2
Number of Processors Supported:
2
Number of SATA Interfaces:
2
Number of Total Expansion Bays:
12
Number of USB 3.1 Gen 1 Ports:
2
Number of VGA Ports:
2
Processor Socket:
Socket LGA-4189
Processor Supported:
Xeon Bronze,Xeon Silver,Xeon Gold,Xeon Platinum
Product Model:
RS700-E10-RS12U
Product Type:
Barebone System
Rack Height:
1U
RAID Supported:
Yes
Total Number of Memory Slots:
32
Total Number of USB Ports:
4
