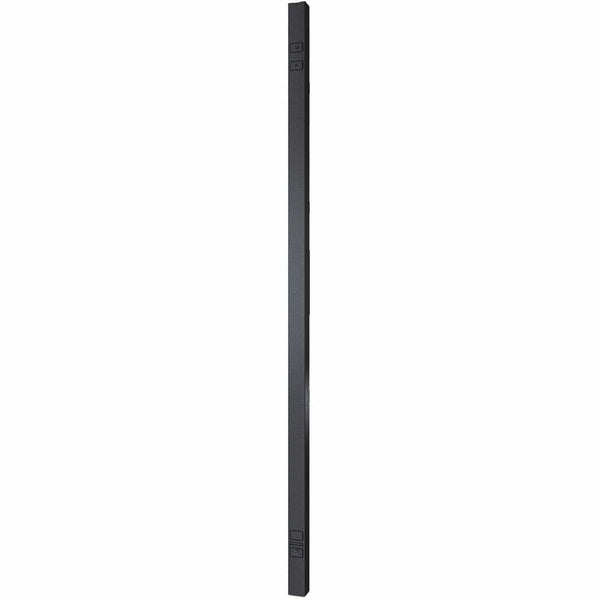

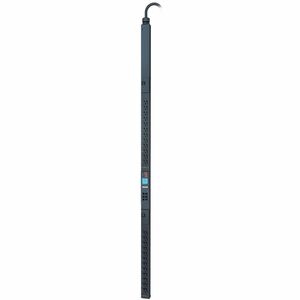

APC NetShelter Rack PDU, Metered, 0U, 2.9kW 100V-120V 30A, (24) NEMA 5-20R outlets [TAA]
SKU: AP8832US
The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles. The AP8832US offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The 0U PDU includes a NEMA L5-30P input plug with 3m (9.84ft) cord, and (24) NEMA 5-20R output receptacles. The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load. The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity. The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads. The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address. An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH). The rack PDU comes with a standard two-year warranty. The metered PDU is compliant with the Trade Agreements Act (TAA) requirements.
- Ideal for Colocation, large data centers or distributed IT sites
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
- Stay on top by defining alarm thresholds in order to avoid overloaded circuits
- Zero U toolless installation
Call for Availability
Regular price
$1,201.53
Sale price
$1,335
On Sale
Shipping calculated at checkout
The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles. The AP8832US offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The 0U PDU includes a NEMA L5-30P input plug with 3m (9.84ft) cord, and (24) NEMA 5-20R output receptacles. The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load. The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity. The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads. The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address. An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH). The rack PDU comes with a standard two-year warranty. The metered PDU is compliant with the Trade Agreements Act (TAA) requirements.
- Ideal for Colocation, large data centers or distributed IT sites
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
- Stay on top by defining alarm thresholds in order to avoid overloaded circuits
- Zero U toolless installation
Additional Warranty Information:
2 years repair or replace
Application/Usage:
IT Equipment,Data Center
Color Family:
Black
Cord Length:
9.84 ft
Country of Origin:
United States
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
Features:
LCD Display
Input Current:
30 A
Input Frequency:
60 Hz
Input Voltage:
100 V AC,120 V AC
Input Voltage Range:
100 V AC - 120 V AC
Limited Warranty:
2 Year
Load Capacity (VA):
2880 W
Load Capacity (Watt):
2900 W
Management:
- Web
- SNMP
Manufacturer:
Schneider Electric SA
Manufacturer Website Address:
http://www.schneider-electric.com
Maximum Operating Temperature:
113°F (45°C)
Maximum Storage Temperature:
149°F (65°C)
Minimum Operating Temperature:
23°F (-5°C)
Minimum Storage Temperature:
-13°F (-25°C)
Mounting Orientation:
Vertical/Toolless
Mount Type:
Rack-mountable
Output Voltage:
100 V AC,120 V AC
Packaged Quantity:
1 Pack
Package Contents:
- NetShelter 24-Outlets PDU
- Installation Guide
- Rack Mounting Brackets
- Serial Configuration Cable
- Safety Guide
PDU Type:
Metered
Placement:
Side
Plug/Connector Type:
NEMA L5-30P
Product Color:
Black
Product Line:
NetShelter
Product Type:
PDU
Rack Height:
0U
Receptacle Detail:
24 x NEMA 5-20R
Receptacle Type:
NEMA 5-20R
