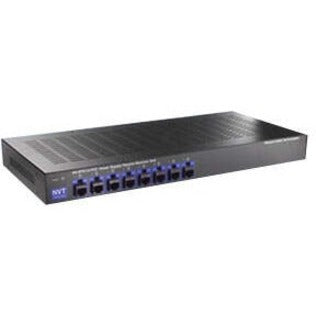

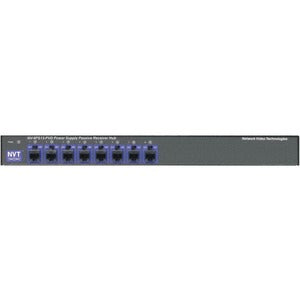

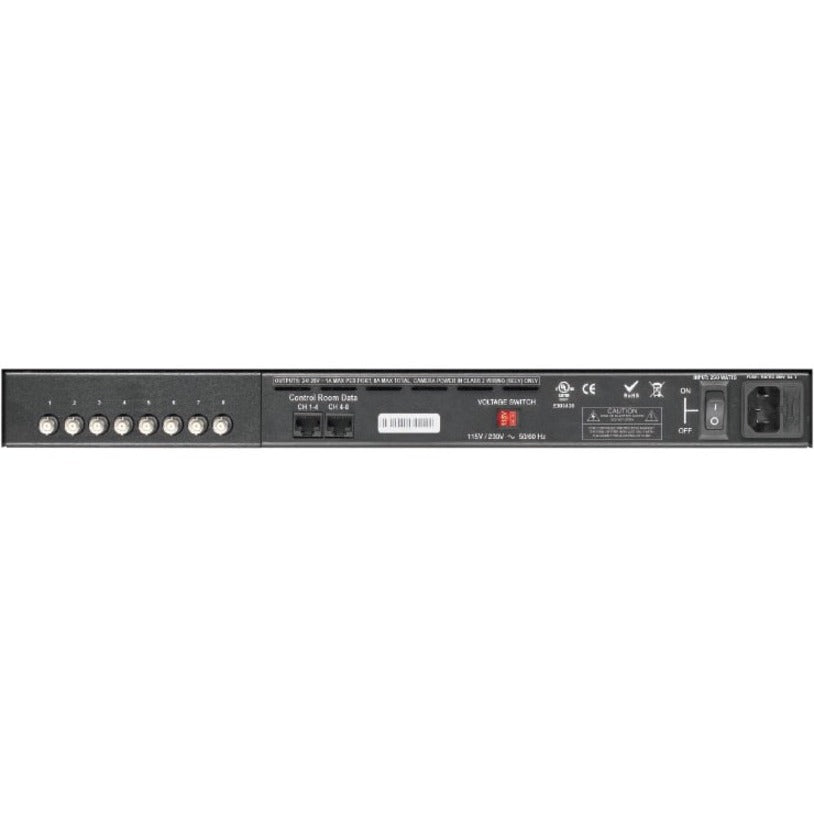

NVT Phybridge Power Supply Passive Video Receiver Hub
SKU: NV-8PS13-PVD
Features:
- Provides Class 2 SELV camera power while receiving video transmission and delivering P/T/Z telemetry all over a single 4-pair Cat5e cable
- Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B
- Independently selectable 24VAC-OFF-28VAC with 1 Amp per channel
- Automatic-reset fault protection; transient protection
- Individually floating outputs ensure total ground-loop immunity
- Frequency response DC to 10MHz
- Diagnostic LEDs show load/no load, miswires, and overload conditions
- Use with the NV-216A-PV, NV-218A-PVD, or NV-226J-PV transceiver at the camera
- Power cameras via UTP over significant distances (see Power Distance Chart)
- 1U high; 8" deep; wall, desk, or rack-mountable, 2ft (60cm) BNC Cables included
- Limited lifetime warranty
Call for Availability
Regular price
$1,050.25
Sale price
$1,200
On Sale
Shipping calculated at checkout
Features:
- Provides Class 2 SELV camera power while receiving video transmission and delivering P/T/Z telemetry all over a single 4-pair Cat5e cable
- Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B
- Independently selectable 24VAC-OFF-28VAC with 1 Amp per channel
- Automatic-reset fault protection; transient protection
- Individually floating outputs ensure total ground-loop immunity
- Frequency response DC to 10MHz
- Diagnostic LEDs show load/no load, miswires, and overload conditions
- Use with the NV-216A-PV, NV-218A-PVD, or NV-226J-PV transceiver at the camera
- Power cameras via UTP over significant distances (see Power Distance Chart)
- 1U high; 8" deep; wall, desk, or rack-mountable, 2ft (60cm) BNC Cables included
- Limited lifetime warranty
Connectivity Technology:
Wired
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
Form Factor:
Rack-mountable,Wall Mountable,Desktop
Limited Warranty:
Lifetime
Manufacturer:
Phybridge, Inc
Manufacturer Website Address:
http://www.phybridge.com
Maximum Operating Distance:
750 ft
Media Type Supported:
Twisted Pair
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
10
Package Contents:
- Power Supply Passive Video Receiver Hub
- Rack Mount "L" Brackets
- Rubber Feet
- 8 x 2ft (60cm) Coax Jumpers
- Molded IEC power inlet cord 7ft (200cm)
Product Model:
NV-8PS13-PVD
Product Type:
Video Extender Receiver
Receiver Depth:
12"
Receiver Height:
1.73"
Receiver Weight (Approximate):
14 lb
Receiver Width:
19"
Twisted Pair Cable Standard:
Category 5e
