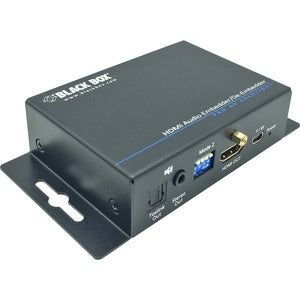

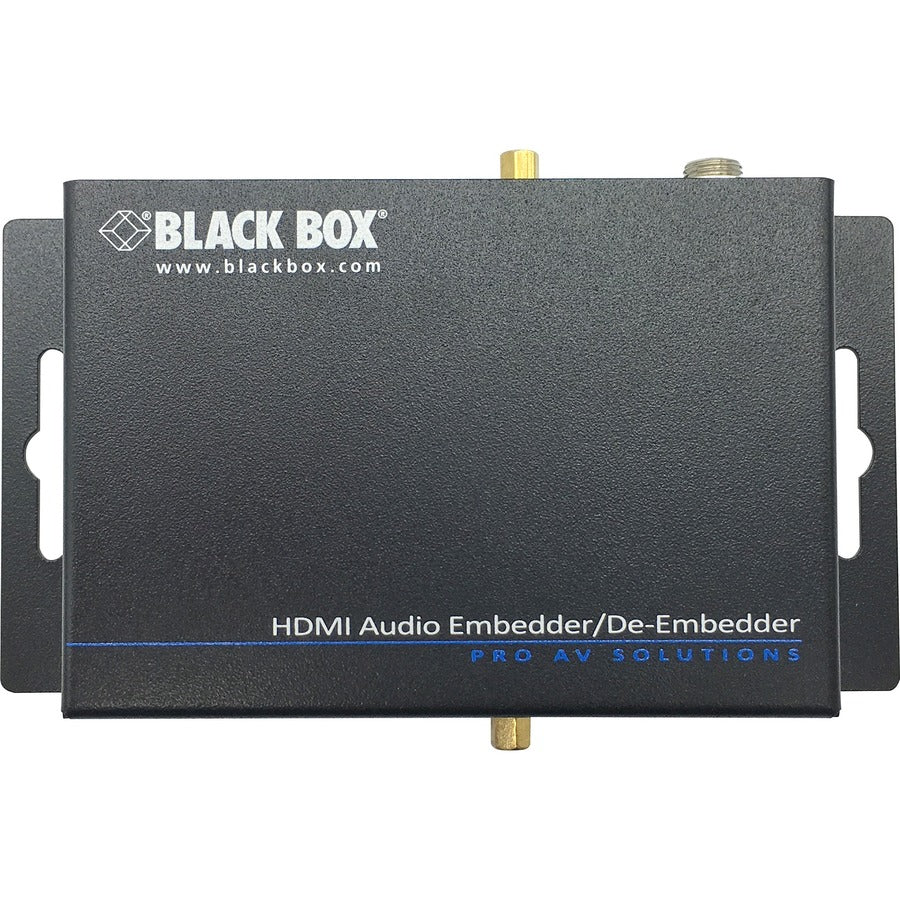

Black Box Audio Embedder/De-embedder - HDMI 2.0
SKU: AEMEX-HDMI-R2
- Supports HDMI, 3.5-mm analog audio, and TOSLINK optical audio inputs and outputs.
- Supports resolutions of up to 4K at 60 Hz in 4:4:4 color.
- Embeds audio from either a 3.5-mm or optical source to an HDMI or DVI-D signal.
- Create audio channels where there was not an existing one.
- De-embed audio from HDMI signal and output it to 3.5-mm analog or digital optical sound systems.
- Can de-embed audio without being connected to an HDMI display.
- Supports embedding and de-embedding at the same time.
- Controlled through simple DIP switch configuration.
- Create audio channels where there was not an existing one.
- Embeds audio from either a 3.5-mm or optical source to an HDMI or DVI-D signal.
- Supports resolutions of up to 4K at 60 Hz in 4:4:4 color.
- Supports HDMI, 3.5-mm analog audio, and TOSLINK optical audio inputs and outputs.
- Supports ARC audio extraction via TOSLINK.
- HDCP 2.2 compliant.
- Supports audio embedding or extraction via analog stereo or digital TOSLINK.
- Support HDMI 2.0 with 4K60 video.
- Add audio to a video signal or extract audio from an HDMI signal with embedded audio.
- 2-in-1 solution.
6 in stock
Regular price
$228.95
Sale price
$244.46
On Sale
Shipping calculated at checkout
- Supports HDMI, 3.5-mm analog audio, and TOSLINK optical audio inputs and outputs.
- Supports resolutions of up to 4K at 60 Hz in 4:4:4 color.
- Embeds audio from either a 3.5-mm or optical source to an HDMI or DVI-D signal.
- Create audio channels where there was not an existing one.
- De-embed audio from HDMI signal and output it to 3.5-mm analog or digital optical sound systems.
- Can de-embed audio without being connected to an HDMI display.
- Supports embedding and de-embedding at the same time.
- Controlled through simple DIP switch configuration.
- Create audio channels where there was not an existing one.
- Embeds audio from either a 3.5-mm or optical source to an HDMI or DVI-D signal.
- Supports resolutions of up to 4K at 60 Hz in 4:4:4 color.
- Supports HDMI, 3.5-mm analog audio, and TOSLINK optical audio inputs and outputs.
- Supports ARC audio extraction via TOSLINK.
- HDCP 2.2 compliant.
- Supports audio embedding or extraction via analog stereo or digital TOSLINK.
- Support HDMI 2.0 with 4K60 video.
- Add audio to a video signal or extract audio from an HDMI signal with embedded audio.
- 2-in-1 solution.
Audio Line In:
Yes
Audio Line Out:
Yes
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2,Waste Electrical and Electronic Equipment Directive (WEEE)
Form Factor:
Mountable
Functions:
Audio Embedding,Audio De-embedding
HDMI:
Yes
Limited Warranty:
3 Year
Manufacturer:
Black Box Corporation
Manufacturer Website Address:
http://www.blackbox.com
Packaged Quantity:
1
Package Contents:
- Audio Embedder/De-embedder - HDMI 2.0
- 1 x 5-Volt, 4-Amp Power Supply with Adapter Clips
- 2 x Mounting Screws
- User Manual
Product Type:
Signal Extractor
TAA Compliant:
Yes
USB:
Yes
